Part D. Message Sequence Charts

vAtlanta r00

Examples of message sequence charts showing the interactions of the Host Controller Interface with the Link Layer.

1. Introduction

This section shows typical interactions between Host Controller interface (HCI) commands and events and the Link Layer (LL). It focuses on the message sequence charts (MSCs) for the procedures specified in “Bluetooth Host Controller Interface Functional Specification” with regard to Link Layer control procedures from “Link Layer”. This section illustrates only the most useful scenarios; it does not cover all possible alternatives. Furthermore, the message sequence charts do not consider errors over the air interface or Host interface. In all message sequence charts it is assumed that all events are not masked, so the Controller will not filter out any events.

The sequence of messages in these message sequence charts is for illustrative purposes. The messages may be sent in a different order where allowed by the Link Layer or HCI. If any of these charts differ with text in the Link Layer or HCI Parts, the text in those Parts overrides these charts.

1.1. Notation

The notation used in the message sequence charts (MSCs) consists of ovals, elongated hexagons, boxes, lines, and arrows. The vertical lines terminated on the top by a shadow box and at the bottom by solid oval indicate a protocol entity that resides in a device. MSCs describe interactions between these entities and states those entities may be in.

The following symbols represent interactions and states:

Oval

Defines the context for the message sequence chart

Hexagon

Indicates a condition needed to start the transactions below this hexagon. The location and width of the Hexagon indicates which entity or entities make this decision.

Box

Replaces a group of transactions. May indicate a user action, or a procedure in the Link Layer.

Dashed Box

Optional group of transactions.

Solid Arrow

Represents a message, signal or transaction. Can be used to show Link Layer and HCI traffic.

Dashed Arrow

Represents an optional message, signal or transaction. Can be used to show Link Layer and HCI traffic.

1.2. Control flow

Some message sequences are split into several charts. In these charts, numbers indicate normal or required ordering and letters represent alternative paths. For example, Step 4 is after Step 3, and Step 5a could be executed instead of Step 5b.

1.3. Example MSC

The protocol entities represented in the example shown in Figure 1.1 illustrate the interactions of two devices named A and B; each device includes a Host and a LL entity in this example. Other MSCs in this section may show the interactions of more than two devices.

Example MSC
Figure 1.1: Example MSC


1.4. Forward compatibility

Many of the message sequences in this Part use HCI commands or events that have enhanced or extended variants that were added to the specification later than the relevant sequence. Such variants can be related commands or events with different names (e.g,. HCI_LE_Advertising_Report and HCI_LE_Extended_Advertising_Report events) or commands or events with multiple versions (e.g., HCI_LE_Generate_DHKey command). In some instances (for example, see [Vol 4] Part E, Section 3.1.1), a Host is required to use the new variant rather than the one shown in the MSC. Even when this is not a requirement, Host implementers may prefer to use the newer variants.

In these circumstances, the MSCs have not been rewritten to use newer features but have been left unchanged. In general, the new commands and events will directly replace the old ones, but this is not always the case and readers should not assume it.

2. Standby state

2.1. Initial setup

To perform initial setup of a LE Controller, the following sequence of actions may be required.

First, the Host would wait for the Controller to indicate the number of HCI Command packets the Host is currently allowed to send using a Command Complete event on a No OPeration command opcode. Then it would reset the Controller to a known state. Then it needs to read the local supported features to check that low energy is supported on this Controller. It would then set the event mask and LE event mask to enable the events that it wants the Controller to generate to the Host. Next, it will check the buffers that are available for data flow, using the Read Buffer Size and LE Read Buffer Size commands. Then it would read the locally supported LE features and select the features that it wishes to use. Finally, it will read the public device address if the Controller has one (see Figure 2.1).

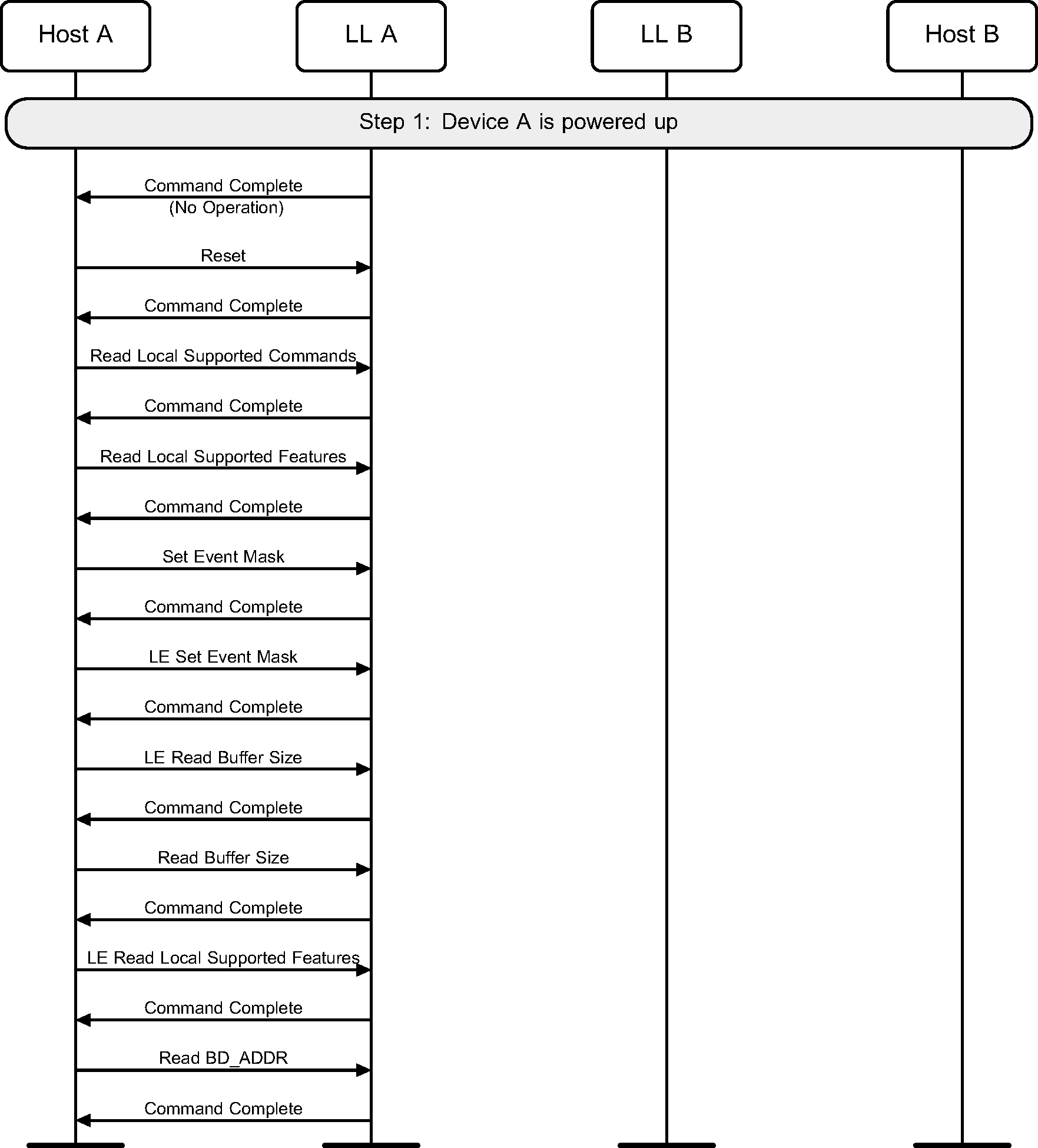

Initial setup
Figure 2.1: Initial setup


2.2. Random Device address

A device may use a random device address, but this address has to be configured before being used during advertising, scanning or initiating (see Figure 2.2).

Random device address
Figure 2.2: Random device address


2.3. Filter Accept List

Before advertising, scanning or initiating can use a Filter Accept List, the Filter Accept List may be cleared and devices added in as required (see Figure 2.3).

Filter Accept List
Figure 2.3: Filter Accept List


2.4. Adding IRK to resolving list

Before advertising, scanning or initiating can use resolving lists, the resolving list may be cleared and devices added in as required (see Figure 2.4).

Resolving lists
Figure 2.4: Resolving lists


2.5. Default data length

Before creating a connection, the Host may specify its preferred values for the Controller’s maximum transmission packet size and maximum packet transmission time to be used for new connections. This may be done on either the Central or the Peripheral.

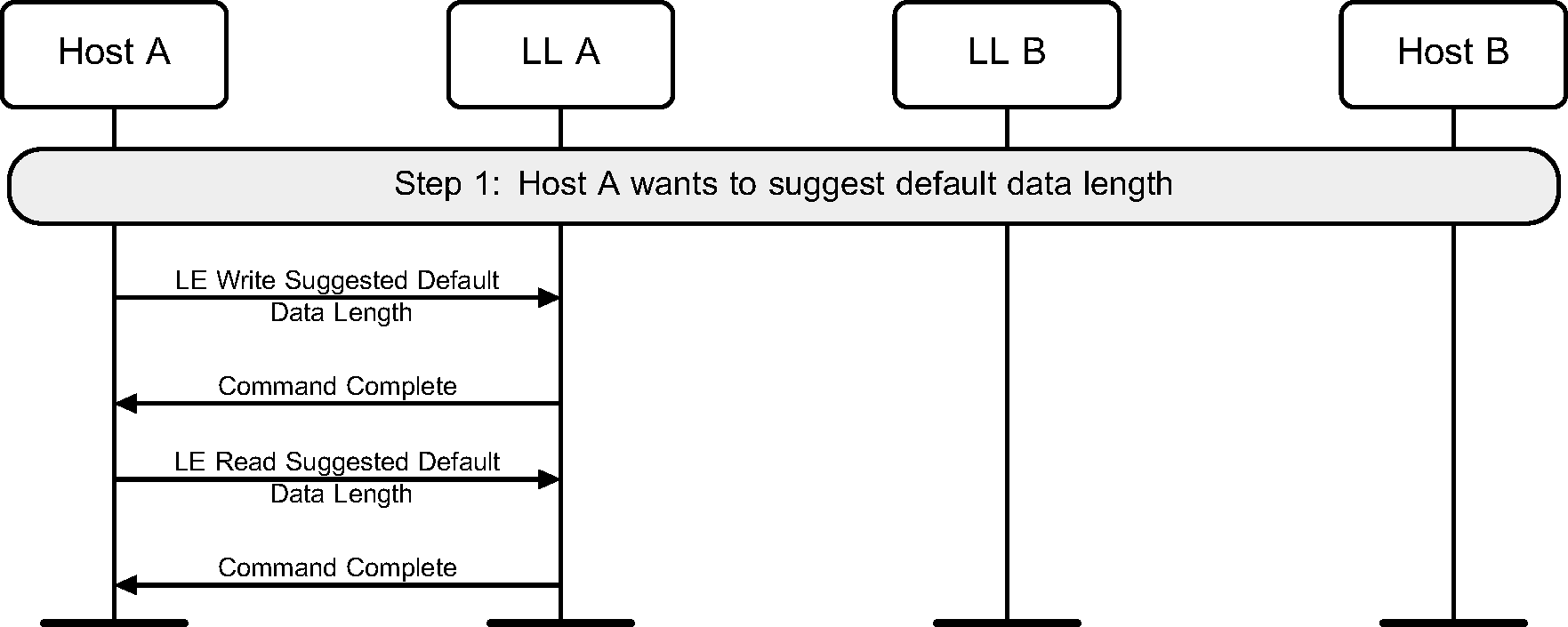

Default data length
Figure 2.5: Default data length


2.6. Periodic Advertiser List

The Periodic Advertiser List may be cleared and entries added as required, before it is made use of (see Figure 2.6).

Periodic Advertiser List
Figure 2.6: Periodic Advertiser List


3. Advertising state

3.1. Undirected advertising

A device may enter the Advertising state by enabling advertising. It should also configure the advertising parameters before doing this (see Figure 3.1).

Undirected advertising
Figure 3.1: Undirected advertising


3.2. Directed advertising

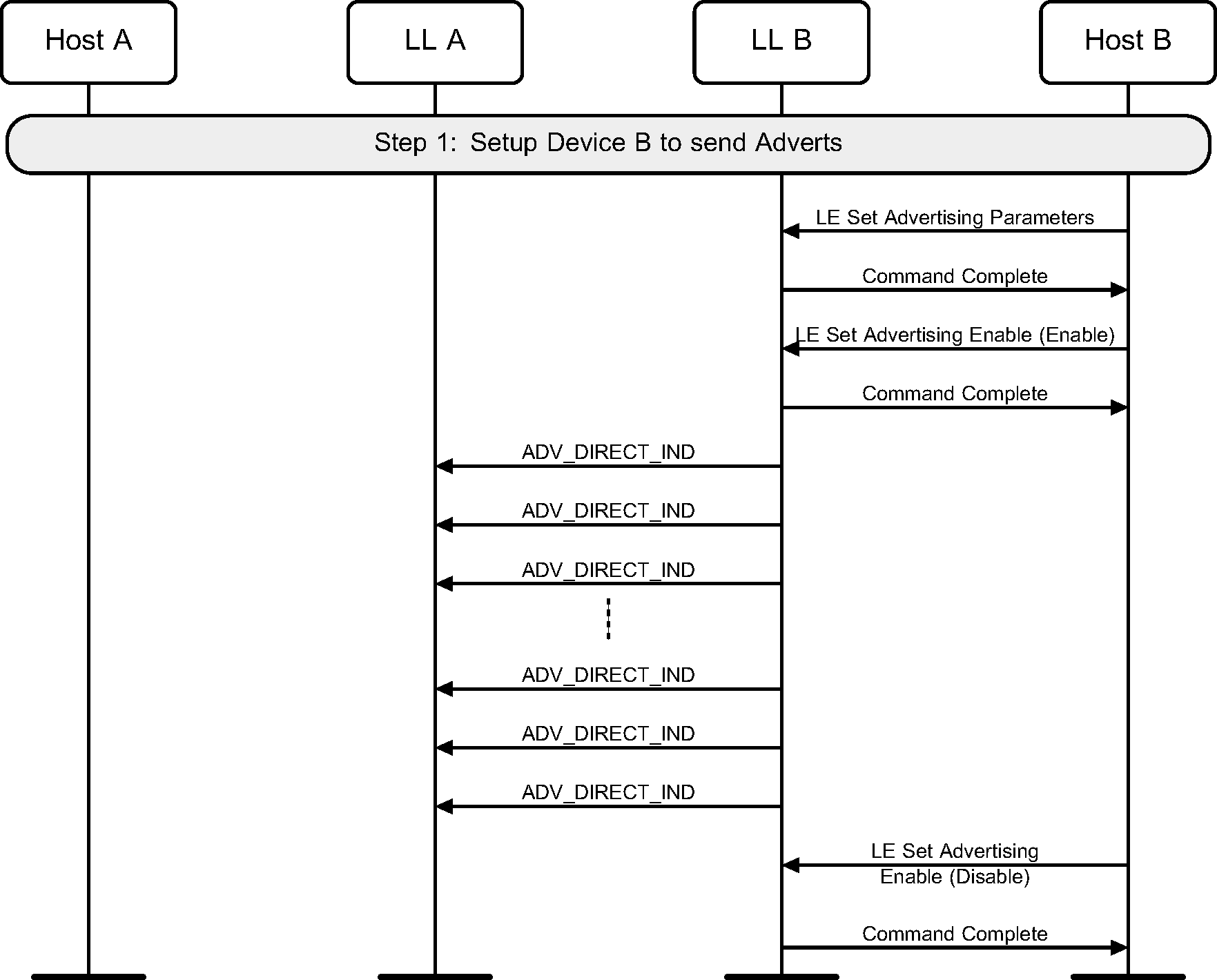

A device may use directed advertising to allow an initiator to connect to it. High duty cycle directed advertising is time limited in the Controller and therefore this may fail before a connection is created. This example only shows the failure case (see Figure 3.2).

High duty cycle directed advertising showing failure case
Figure 3.2: High duty cycle directed advertising showing failure case


Low duty cycle directed advertising is not time-limited. This example shows the case where no connection is made. A device should also configure the advertising parameters before doing this (see Figure 3.3).

Low duty cycle directed advertising
Figure 3.3: Low duty cycle directed advertising


3.3. Advertising using ADV_EXT_IND

A device may enter the Advertising state by enabling advertising a set. It should also configure the advertising set parameters before doing this (see Figure 3.4).

Advertising using ADV_EXT_IND

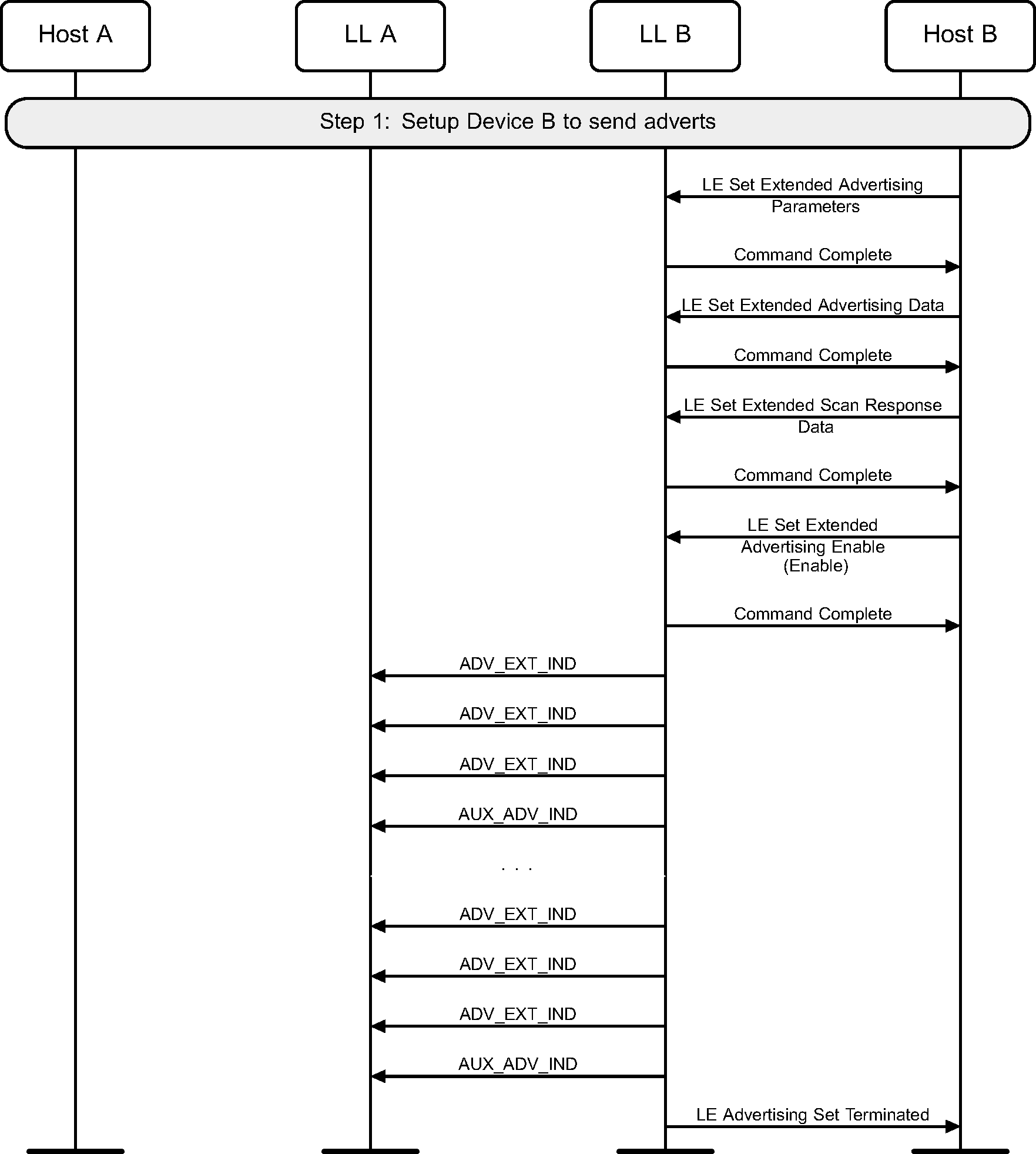

Figure 3.4: Advertising using ADV_EXT_IND


3.4. Scan request notifications

A device may enable scan request notifications in an advertising set (see Figure 3.5).

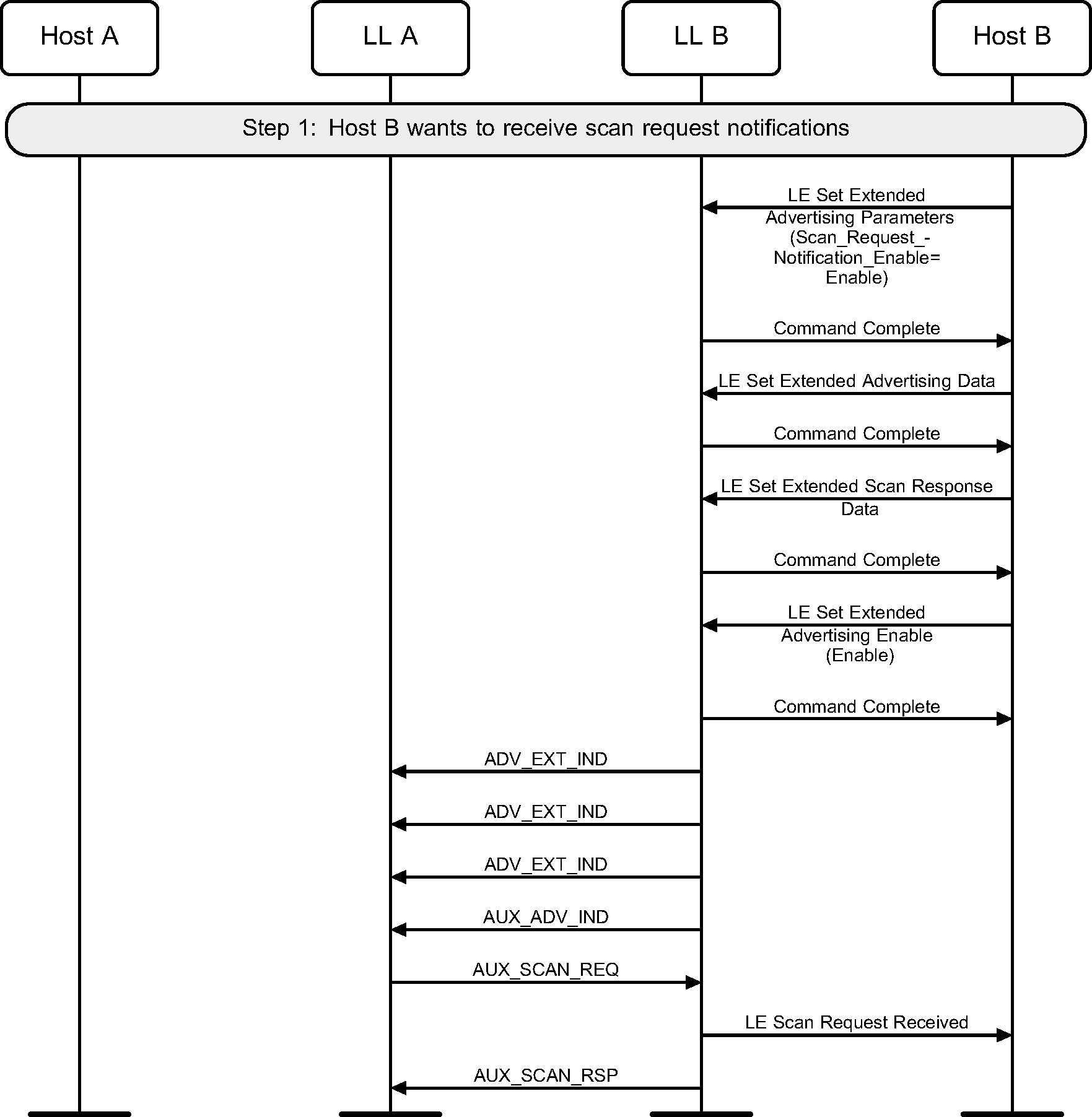

Scan request notifications
Figure 3.5: Scan request notifications


3.5. Advertising duration ended

A device may enter the Advertising State by enabling advertising a set for a limited duration of time (see Figure 3.6).

Advertising duration ended
Figure 3.6: Advertising duration ended

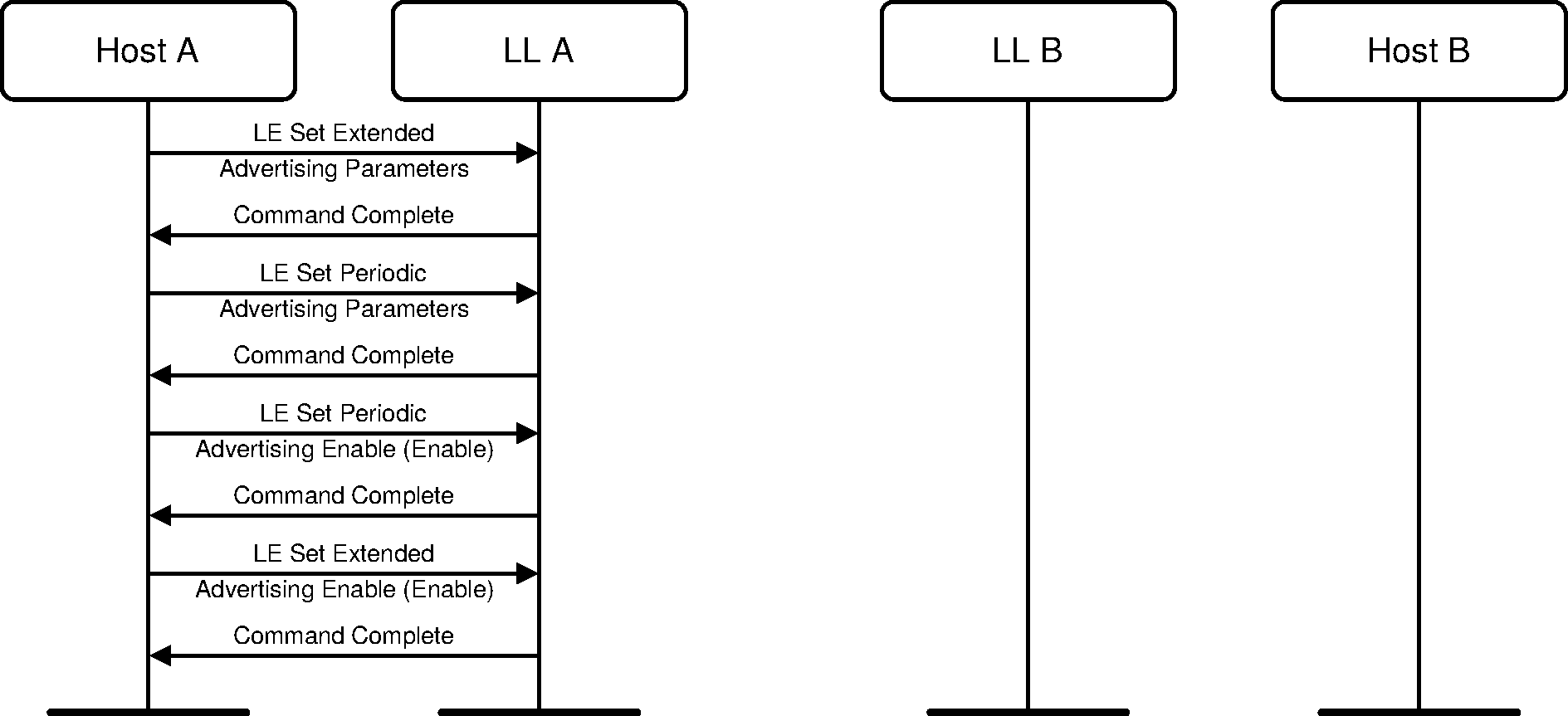

3.6. Periodic advertising

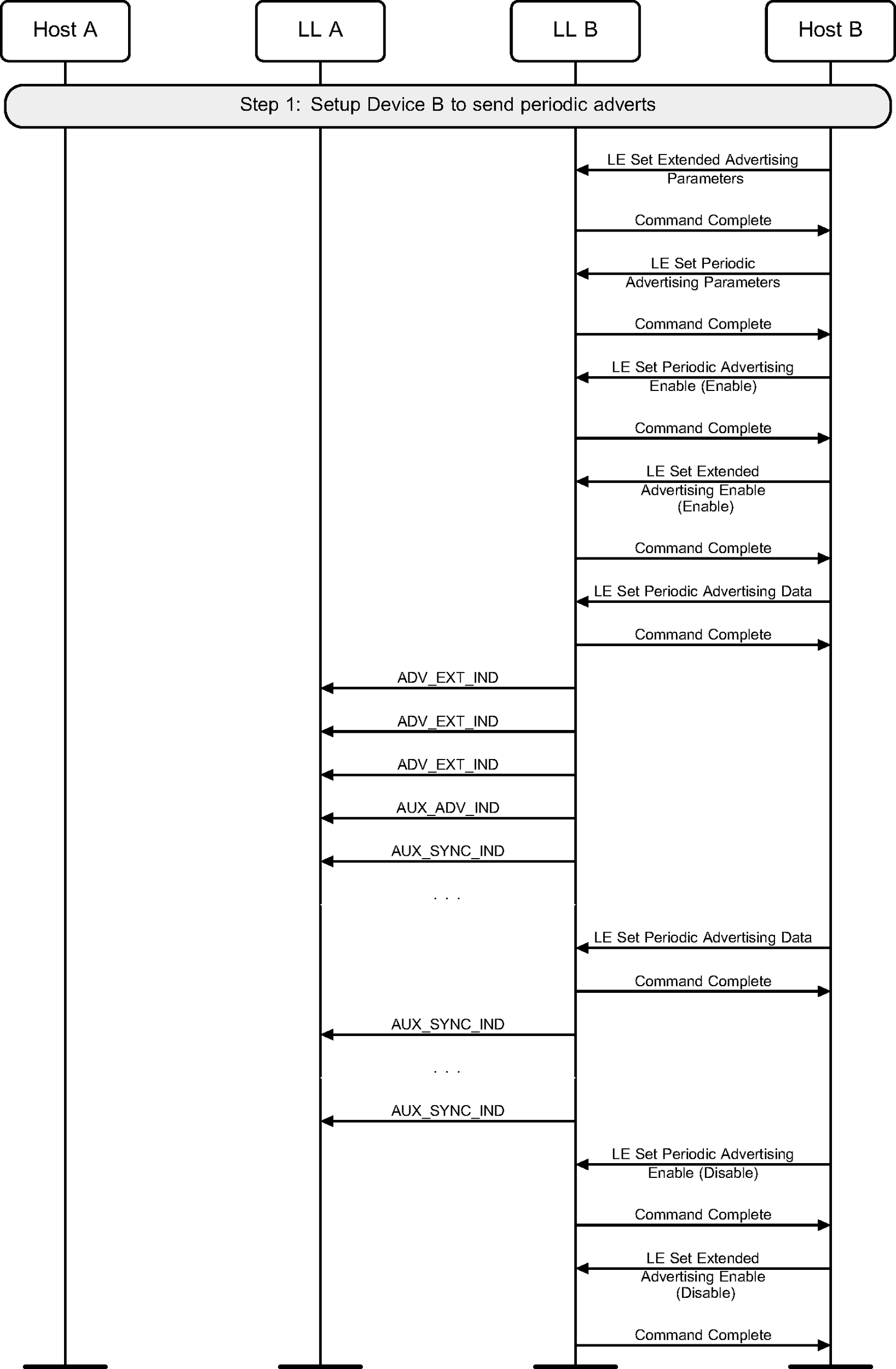

A device may enter the Advertising State by enabling periodic advertising in a set. It should also configure the advertising set parameters before doing this (see Figure 3.7).

Periodic advertising
Figure 3.7: Periodic advertising


3.7. Connectionless Constant Tone Extension transmission

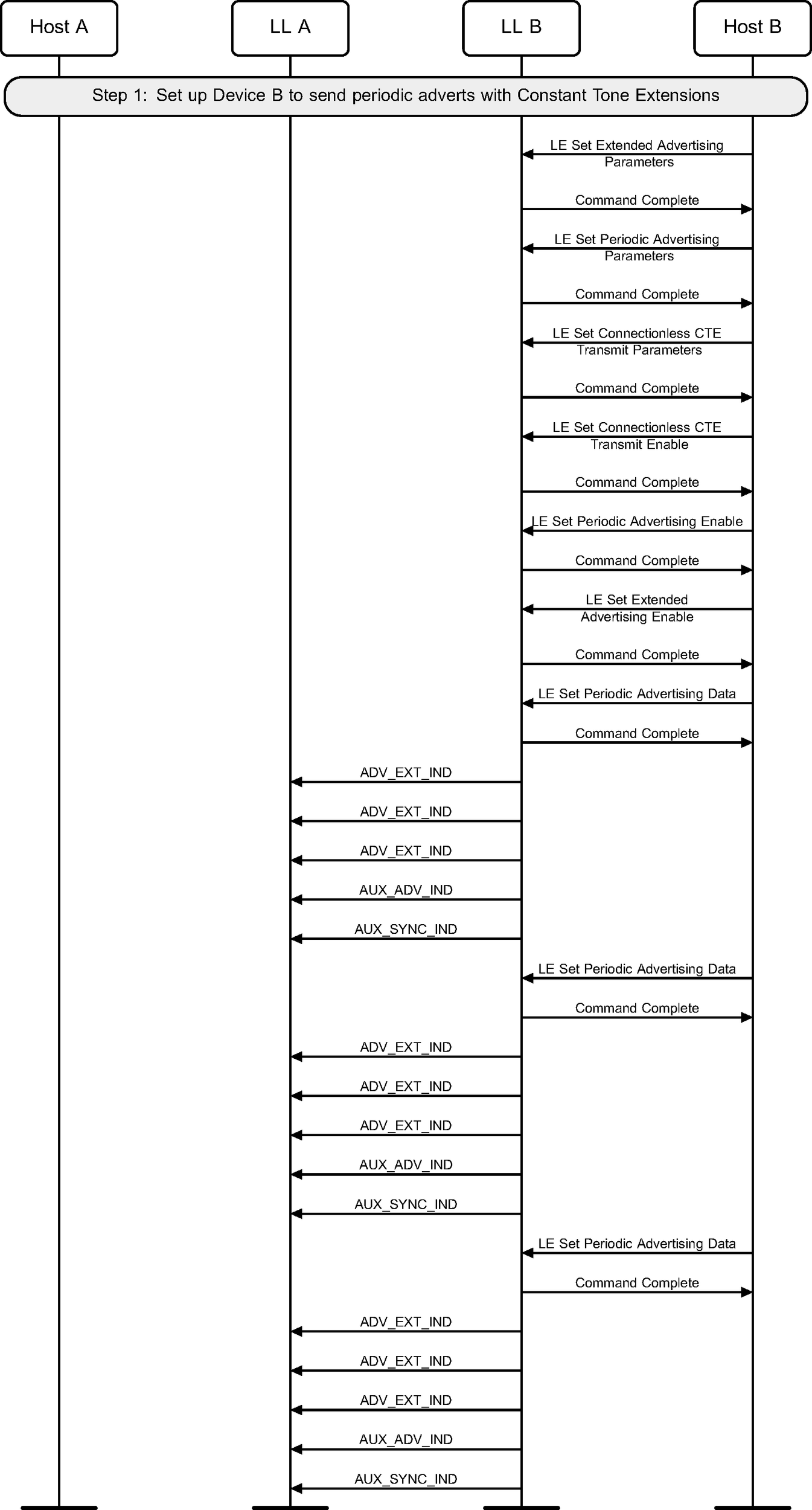

A device may send periodic advertising packets containing a Constant Tone Extension (see Figure 3.8).

Connectionless CTE transmission
Figure 3.8: Connectionless CTE transmission


3.8. Isochronous Broadcasting State
3.8.1. Create a Broadcast Isochronous Group

A device enters the Isochronous Broadcasting State and enables the periodic advertising associated with the BIG. The device then creates the BIG and sends isochronous data using the isochronous data paths (see Figure 3.9).

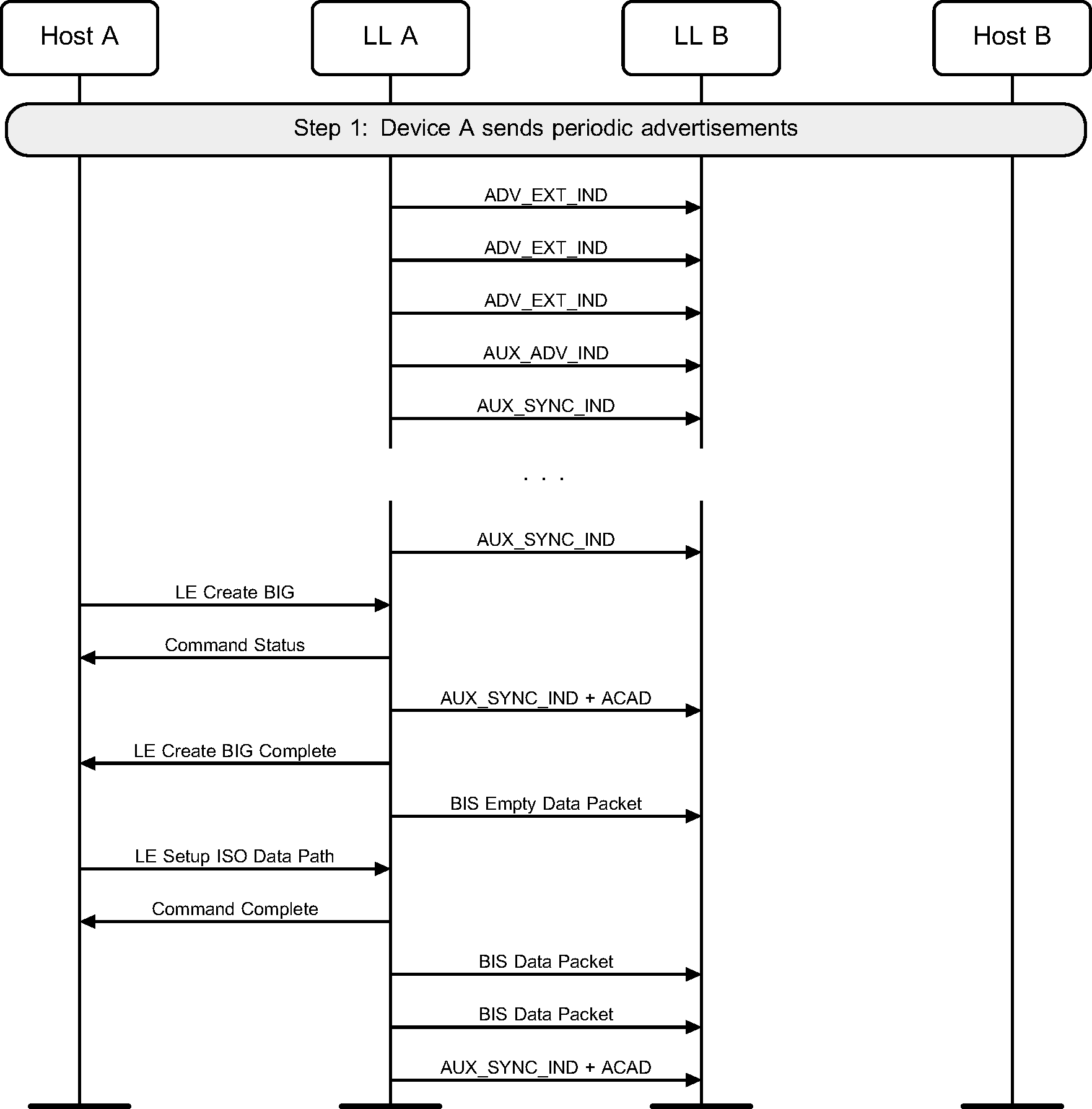

Device A creates a BIG
Figure 3.9: Device A creates a BIG


3.8.2. Terminate a Broadcast Isochronous Group

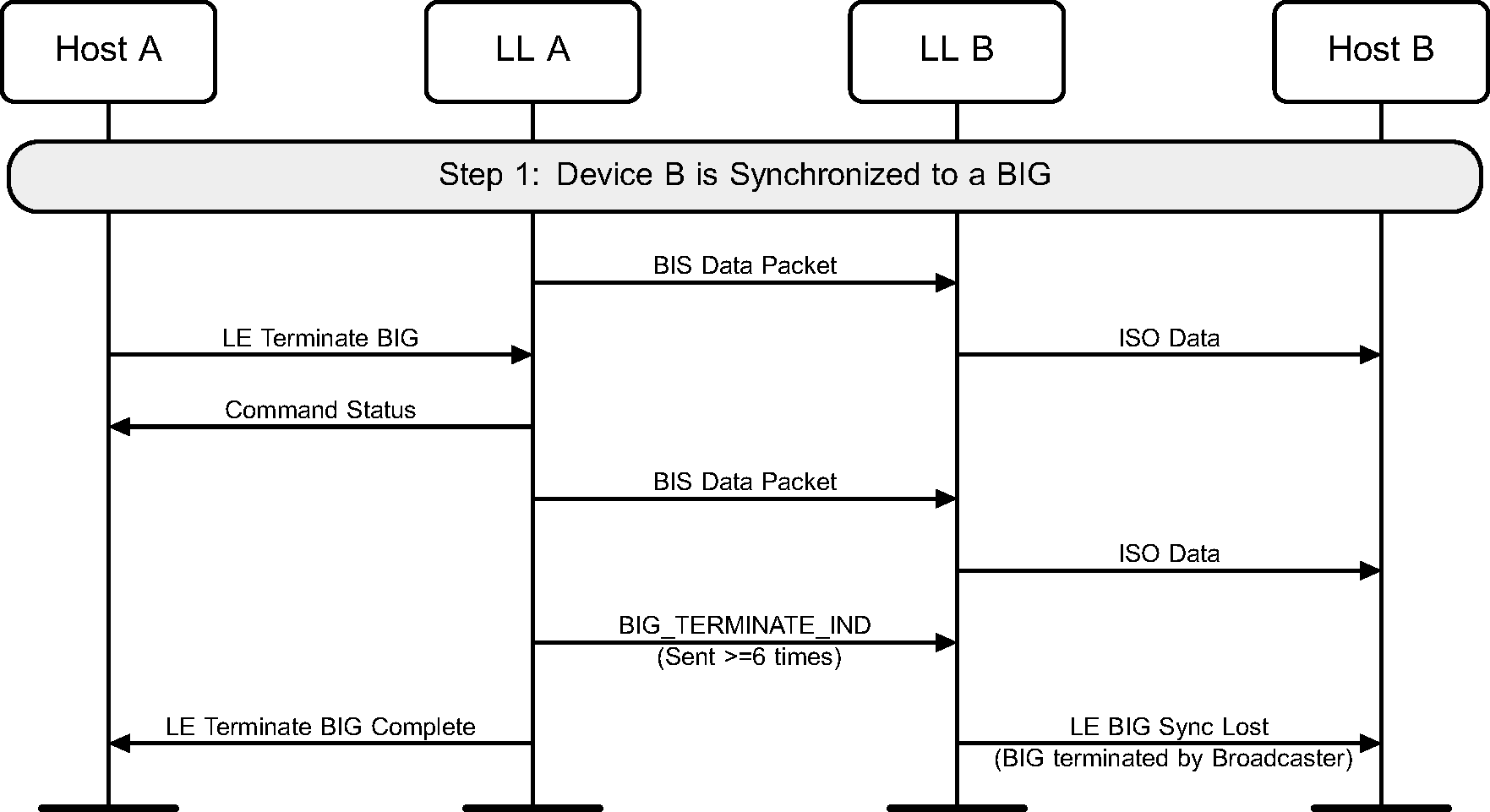

A device terminates a BIG (see Figure 3.10).

Device A terminates a BIG
Figure 3.10: Device A terminates a BIG


3.9. Periodic advertising with responses (PAwR)

A device may enter the Advertising state by enabling PAwR in a set. The device should configure the advertising set parameters before doing this (see Figure 3.11).

Configuring PAwR
Figure 3.11: Configuring PAwR


3.10. Transmitting PAwR subevents

A Controller may request data to be sent in one or more subevents of a PAwR advertising set. The Host can send this data to the Controller ahead of when the subevents are scheduled.

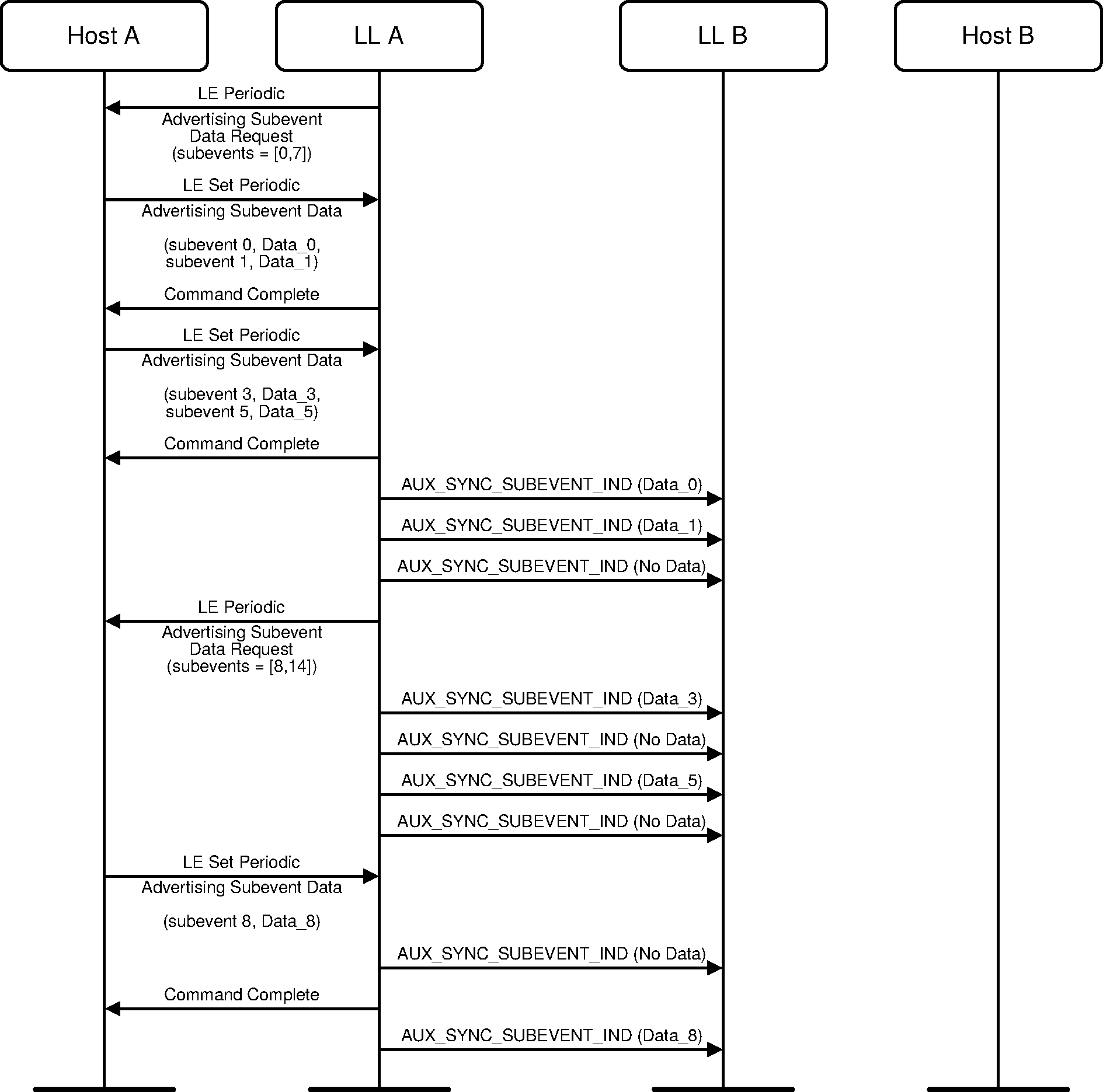

Transmitting PAwR subevents
Figure 3.12: Transmitting PAwR subevents


3.11. Using a response slot in PAwR

A device can send a response to a PAwR advertisement packet. The timing of the response is determined by the Host using information from the advertisement packet. The Host can send a response by indicating the response slot and data to be sent in that response slot.

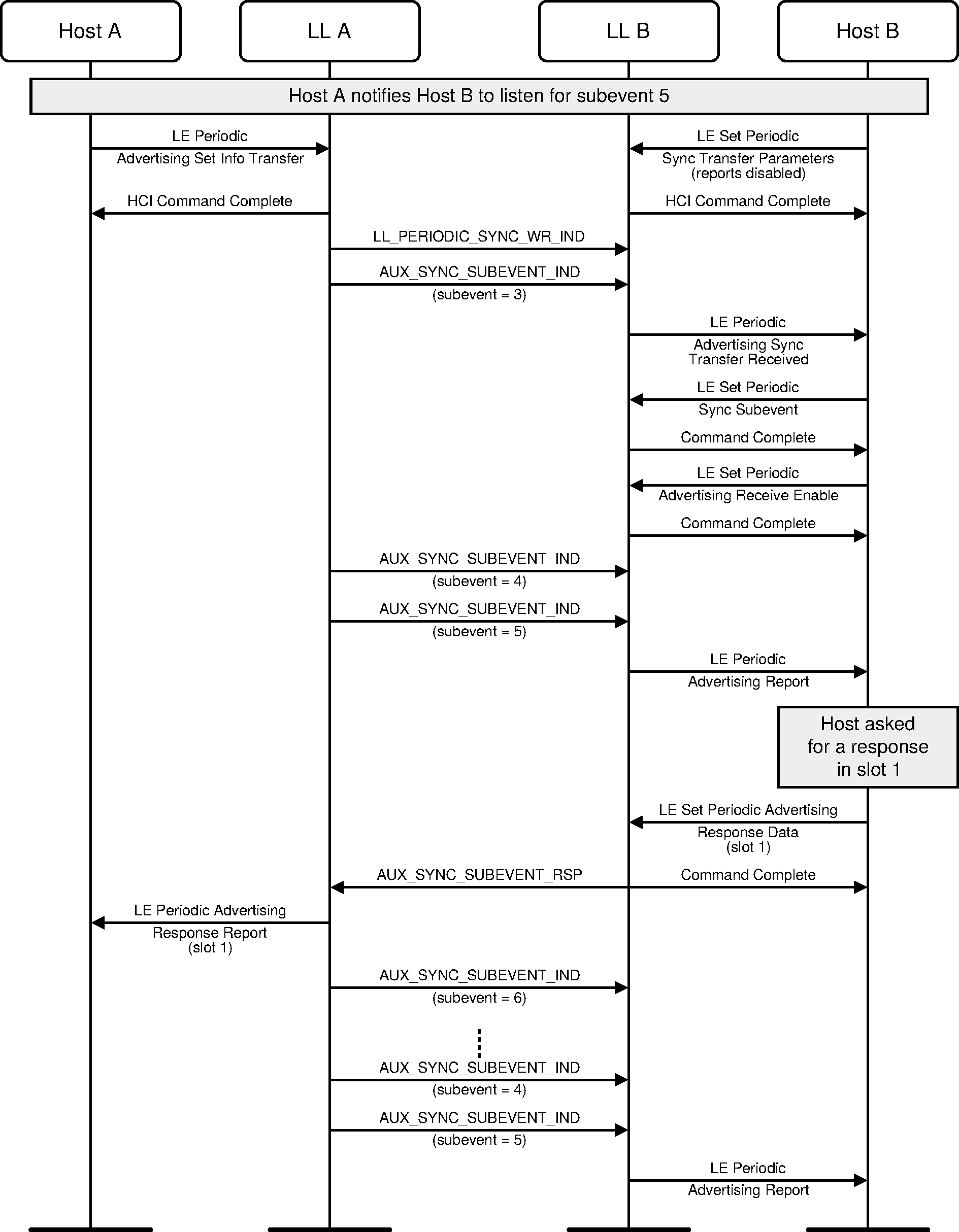

Using a response slot in PAwR
Figure 3.13: Using a response slot in PAwR


3.12. Connecting from PAwR

A device may initiate a connection with a synchronized device by using the LE Extended Create Connection command which indicates the subevent and BD_ADDR of the peer device. This initiates a connection by sending an AUX_CONNECT_REQ PDU in that subevent.

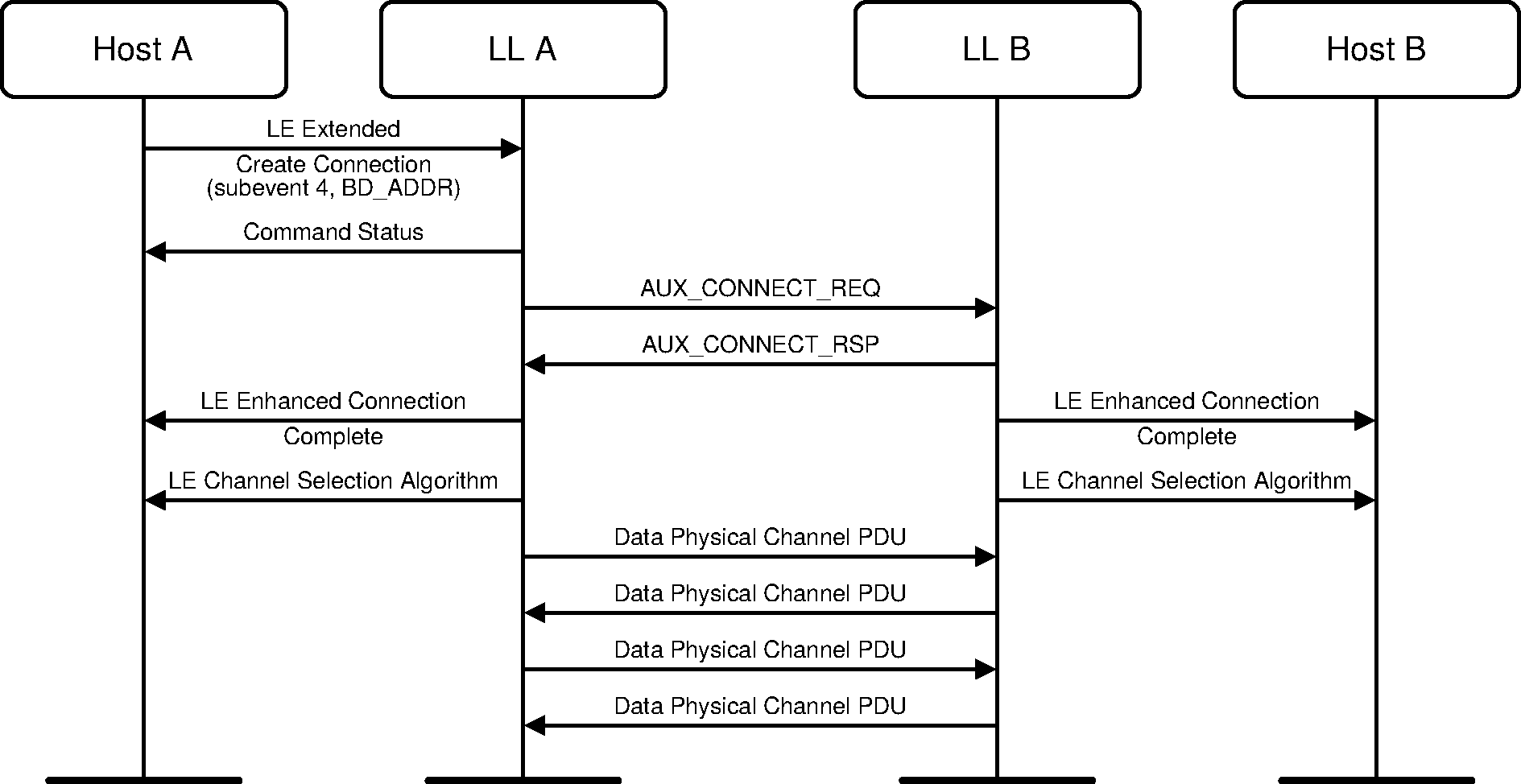

Connecting from PAwR
Figure 3.14: Connecting from PAwR


3.13. Failed Connection Attempts From PAWR

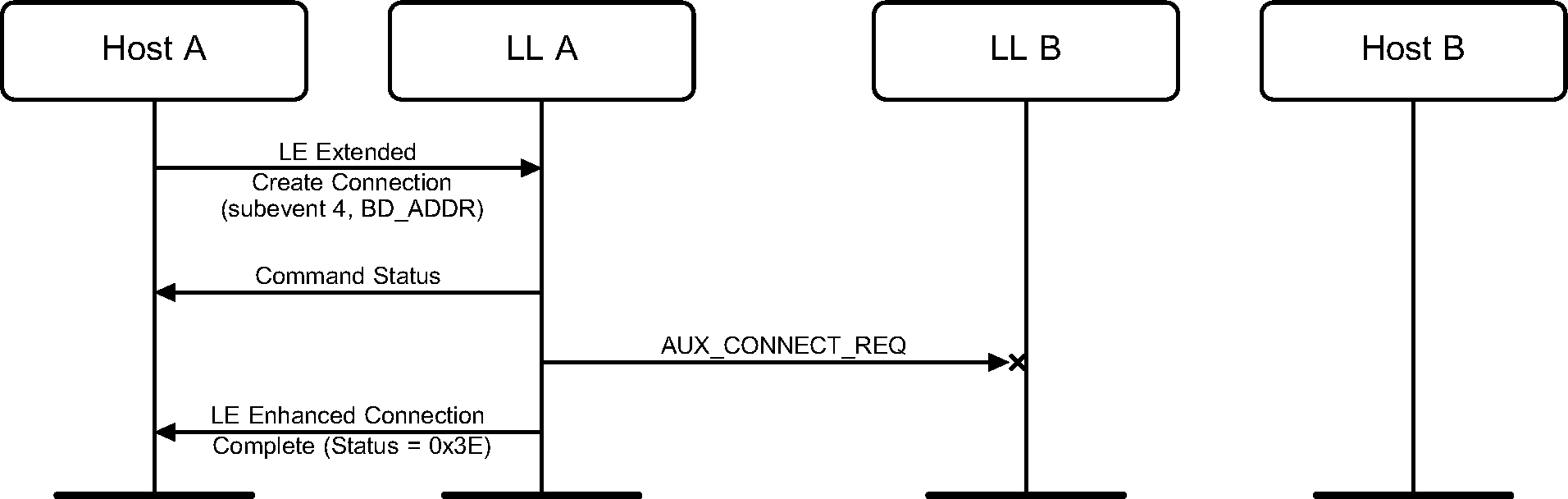

A synchronized device can miss an AUX_CONNECT_REQ PDU sent by the periodic advertiser.

Synchronized device misses the AUX_CONNECT_REQ PDU

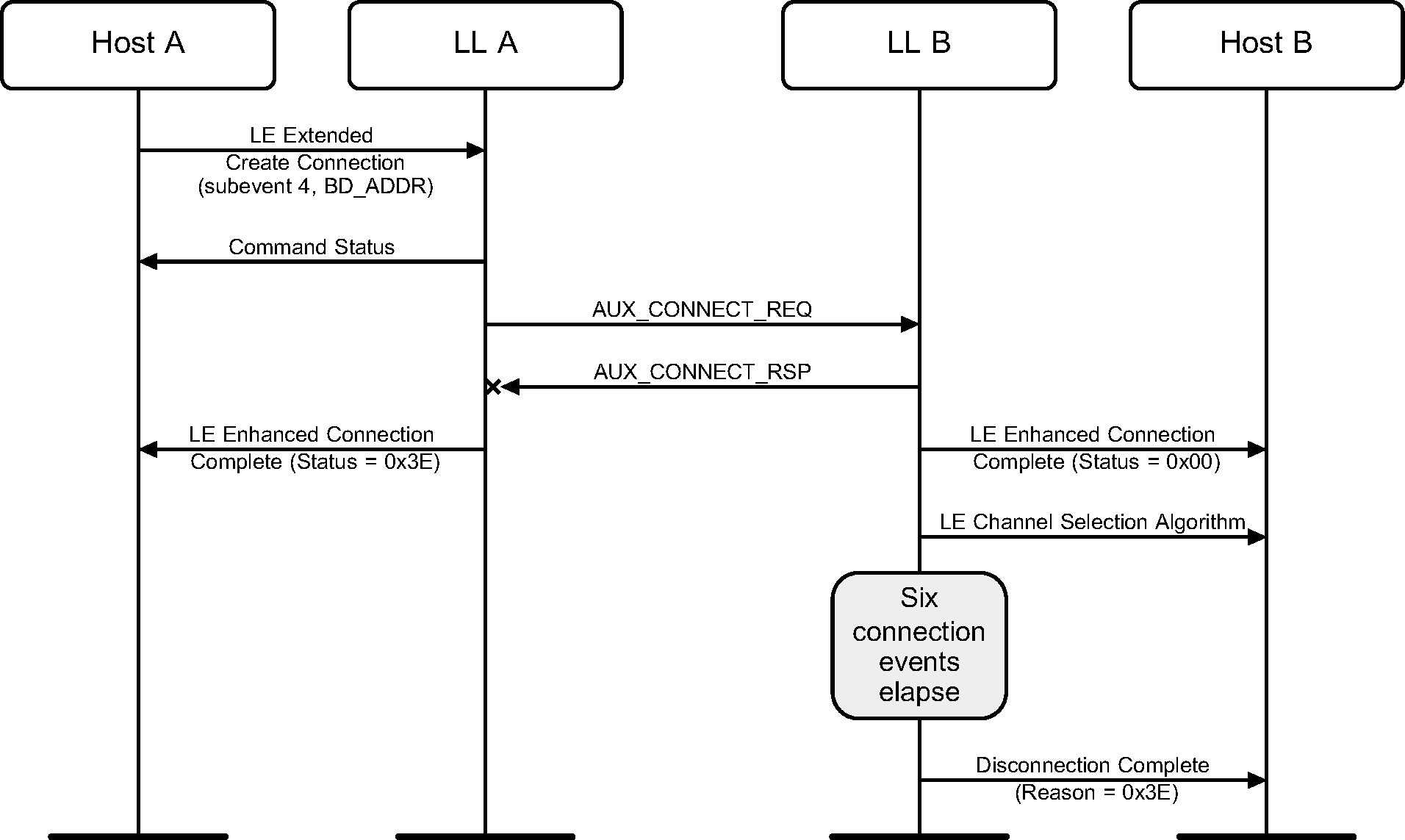

Figure 3.15: Synchronized device misses the AUX_CONNECT_REQ PDU


The periodic advertiser can miss an AUX_CONNECT_RSP PDU sent by a synchronized device.

Periodic advertiser misses the AUX_CONNECT_RSP PDU
Figure 3.16: Periodic advertiser misses the AUX_CONNECT_RSP PDU


4. Scanning state

4.1. Passive scanning

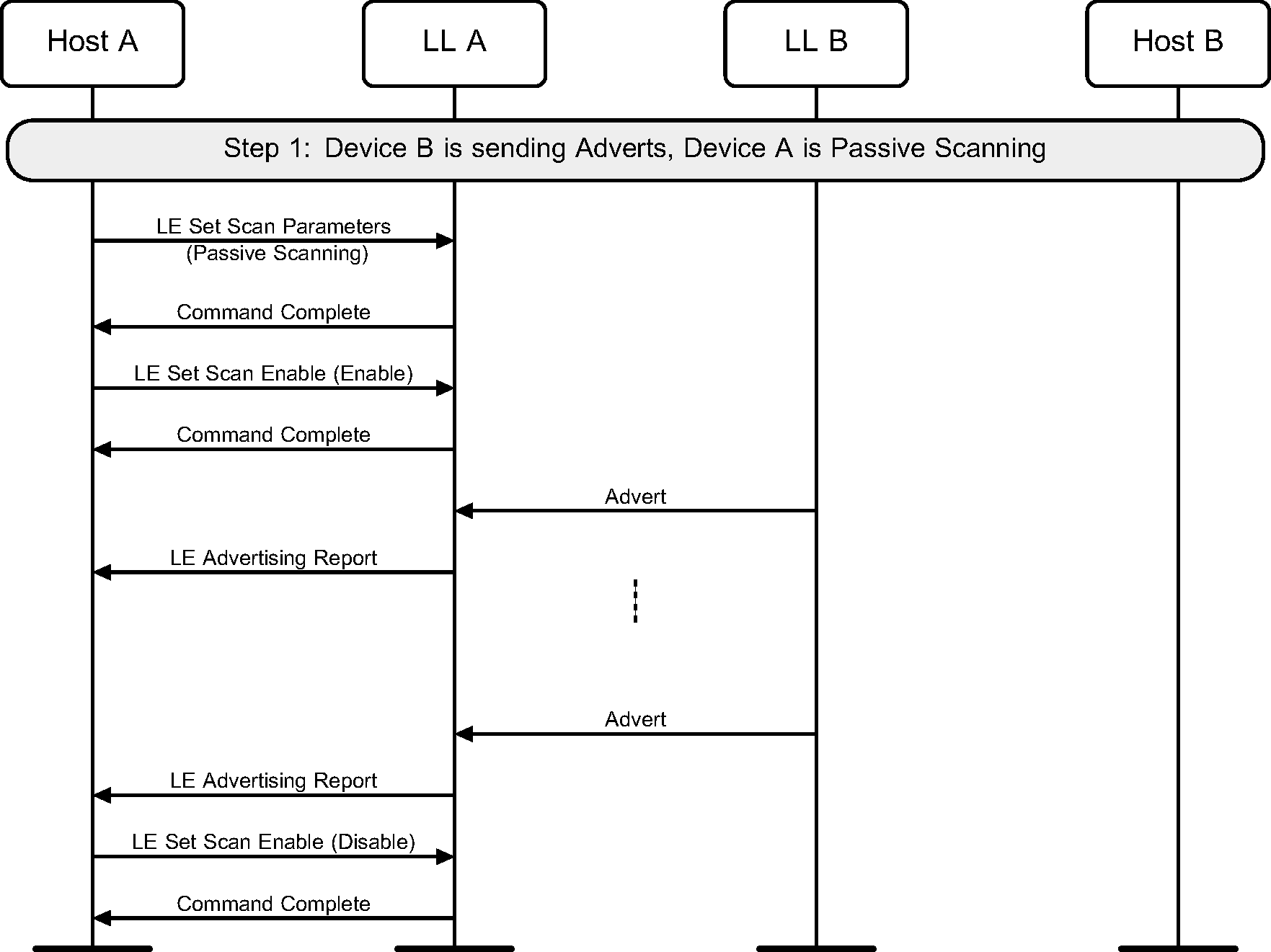

A device can use passive scanning to find advertising devices in the area. This would receive advertising packets from peer devices and report these to the Host (see Figure 4.1).

Passive scanning
Figure 4.1: Passive scanning


4.2. Active scanning

A device may use active scanning to obtain more information about devices that may be useful to populate a user interface. Active scanning involves more Link Layer advertising messages (see Figure 4.2).

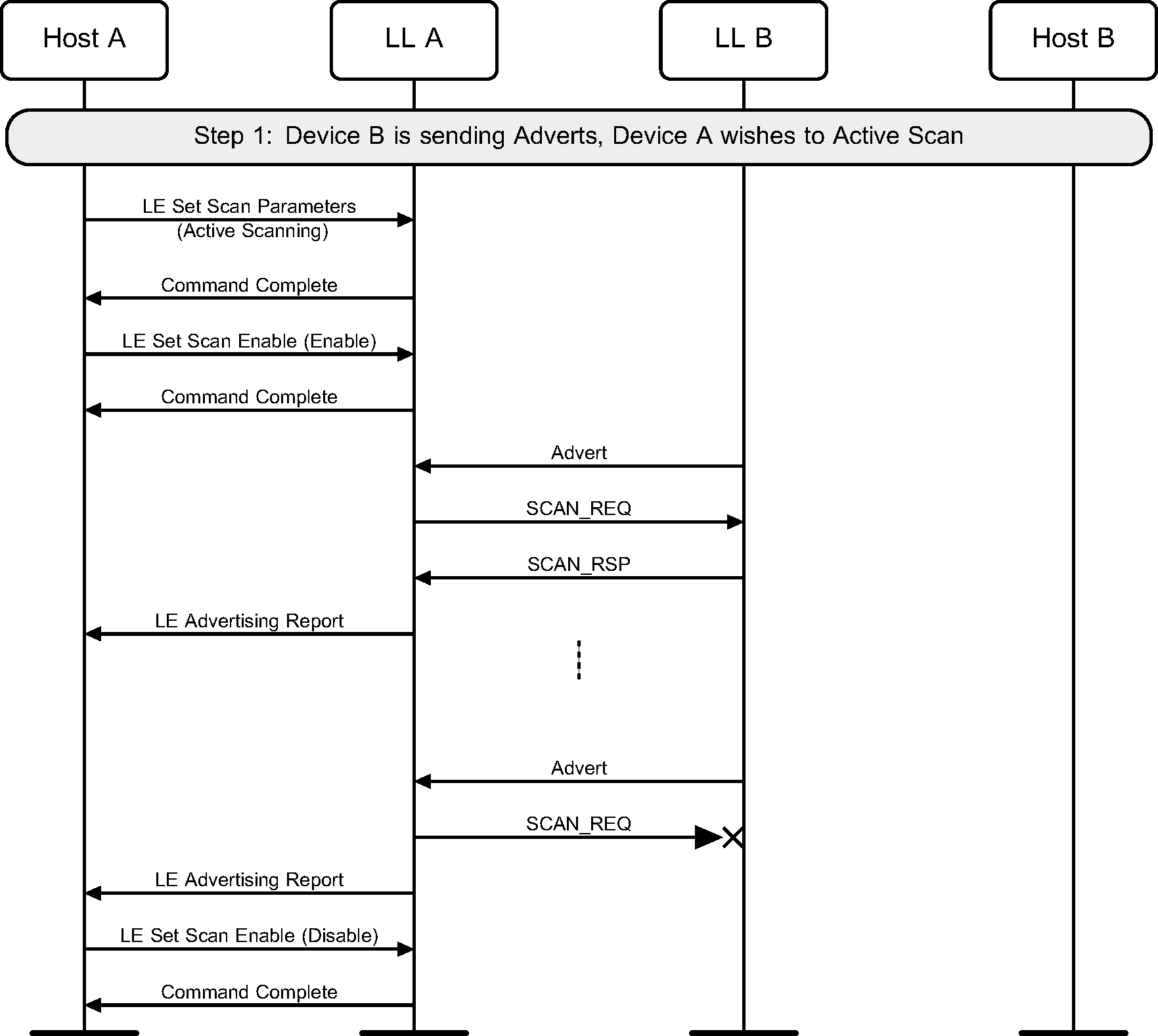

Active scanning
Figure 4.2: Active scanning


4.3. Passive scanning for directed advertisements with Privacy

If a device does not support Privacy in the Controller, it may choose to forward LE Directed Advertising Report events from devices supporting Privacy without requiring filtering through the Controller Resolving List.

Directed advertising with Privacy
Figure 4.3: Directed advertising with Privacy

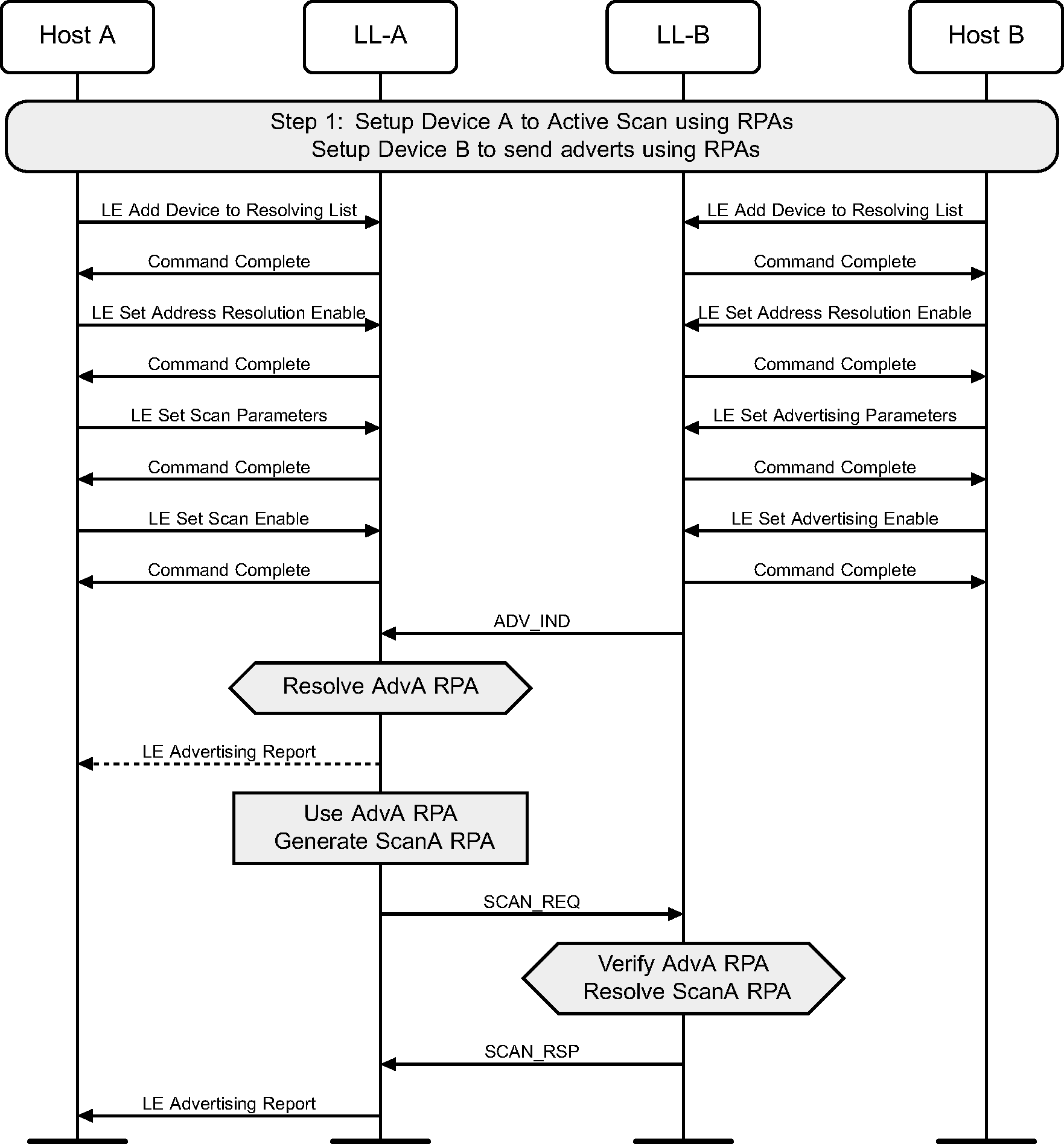

4.4. Active scanning with Privacy

A device may use active scanning to obtain more information about devices that may be useful to populate a user interface. Privacy may be used during active scanning to make it more difficult to track either device during active scanning (see Figure 4.4).

Active scanning with Privacy
Figure 4.4: Active scanning with Privacy


4.5. Active scanning with Privacy and Controller based resolvable private address generation

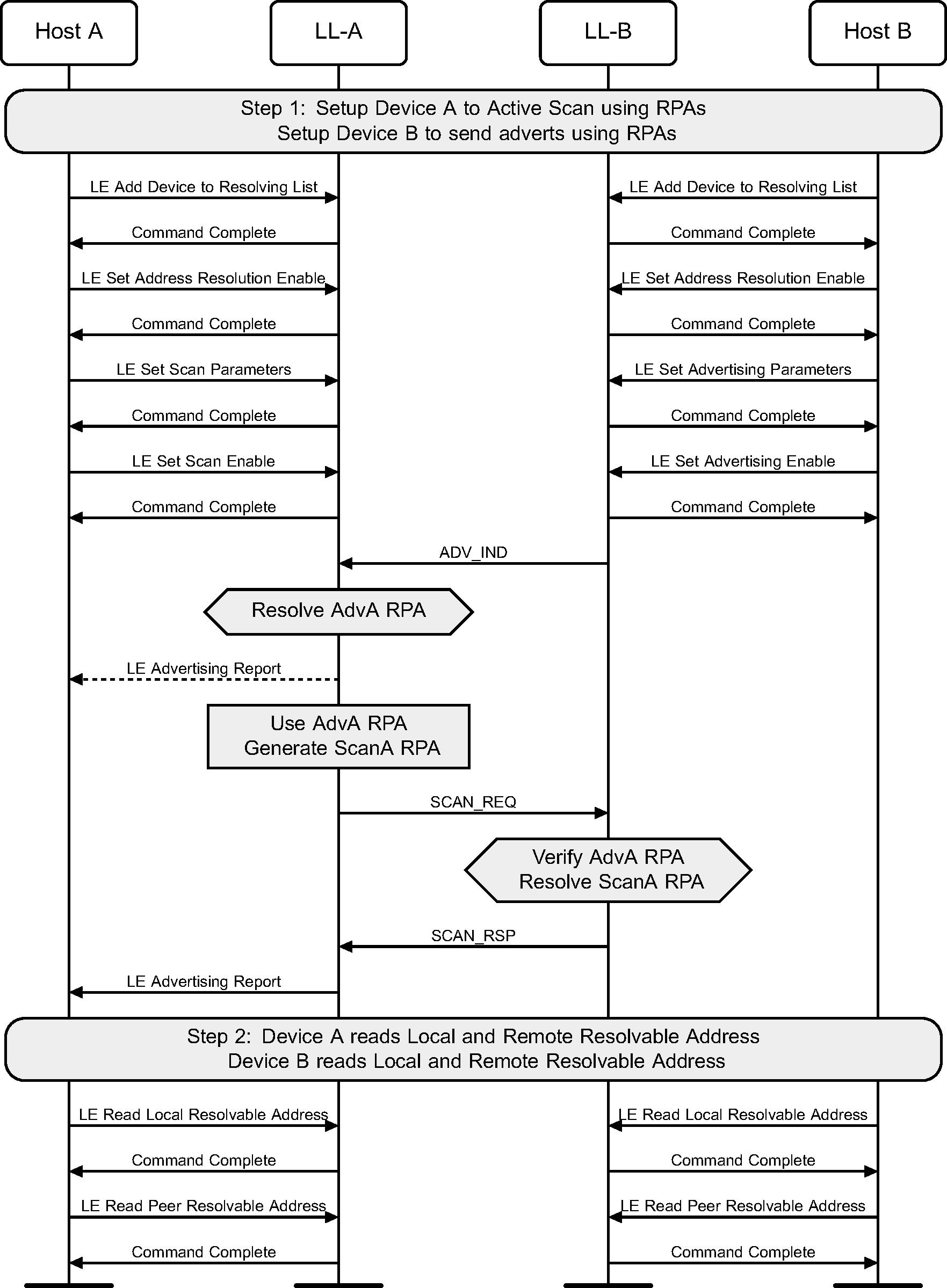

A Controller will periodically update the resolvable private addresses used on both devices if the devices use active scanning and advertising with Privacy. A Host may at anytime retrieve the read from the Controller the current addresses being used (see Figure 4.5).

Retrieving local and remote resolvable address updates from the Controller
Figure 4.5: Retrieving local and remote resolvable address updates from the Controller


4.6. Active scanning on the secondary advertising Physical channel

A device may use active scanning on the secondary advertising physical channel in order to obtain more information about devices that may be useful to populate a user interface (see Figure 4.6).

Extended active scanning on the secondary advertising physical channel
Figure 4.6: Extended active scanning on the secondary advertising physical channel

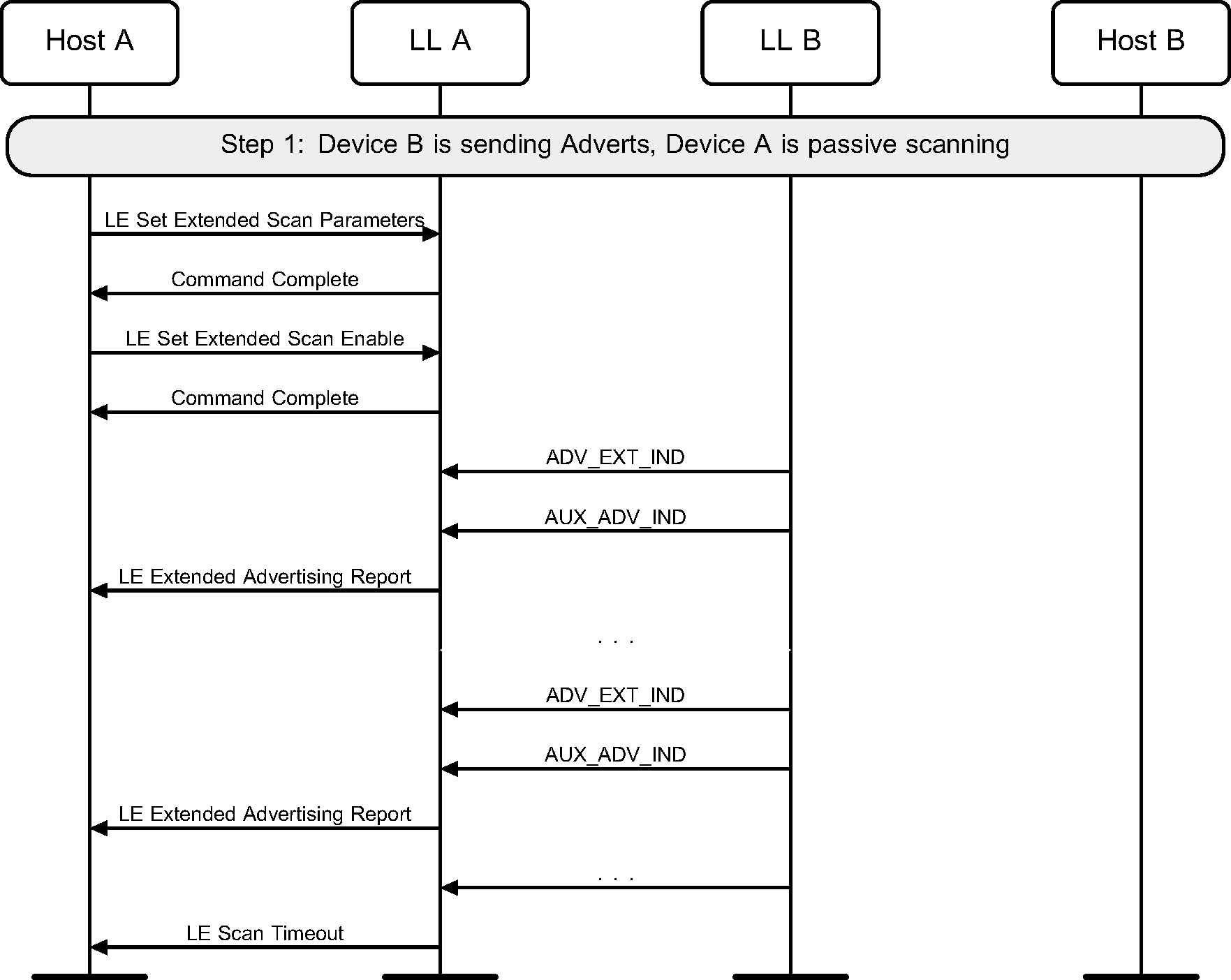

4.7. Scan timeout

A device may scan for a limited duration of time (see Figure 4.7).

Scan timeout
Figure 4.7: Scan timeout


4.8. Scanning for periodic advertisements

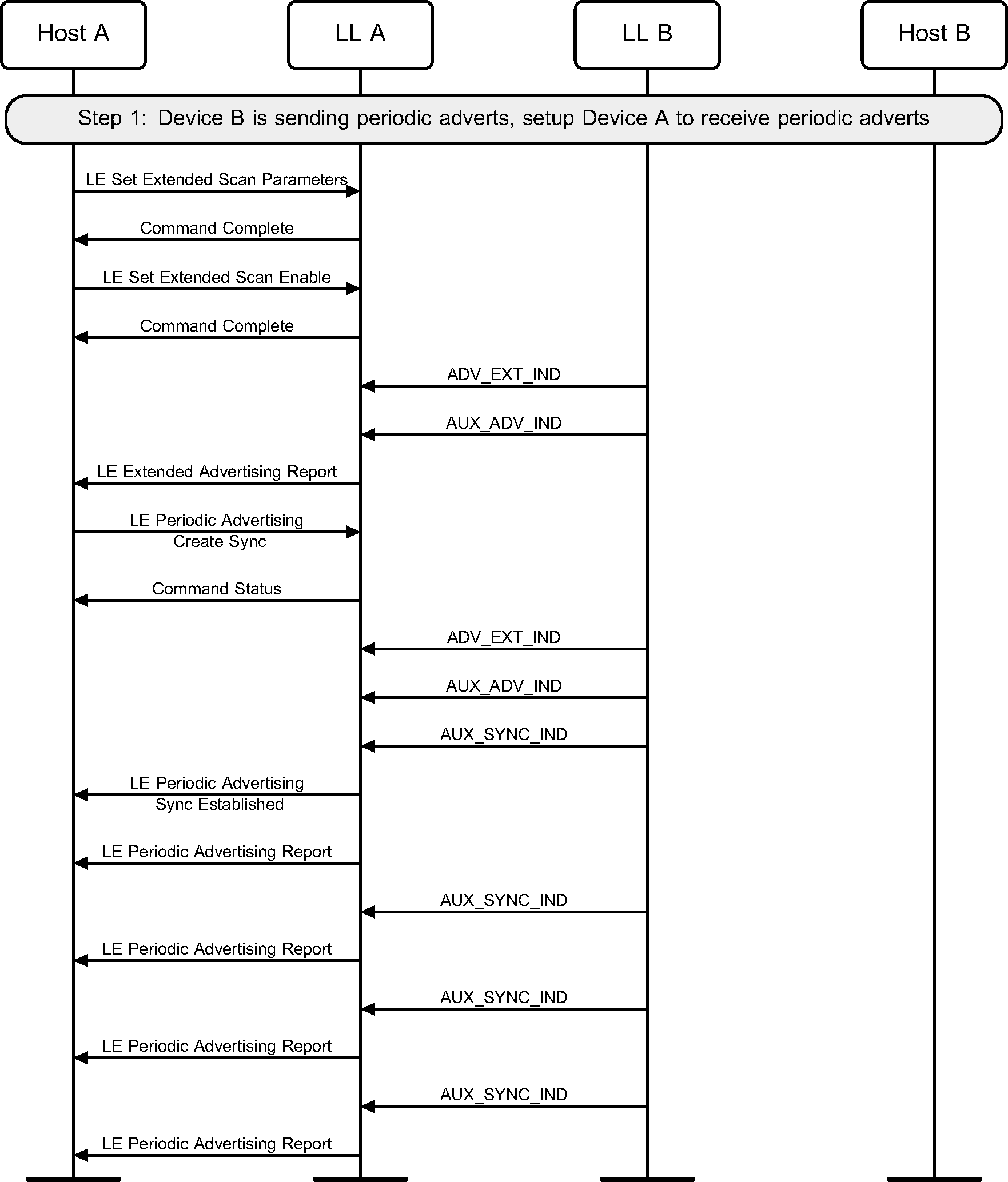

A device may establish synchronization with a periodic advertiser and report periodic advertising packets to the Host (see Figure 4.8).

Periodic scanning
Figure 4.8: Periodic scanning


4.9. Cancel scanning for periodic advertisements

A device may cancel a pending request to establish synchronization with a periodic advertiser. This example shows an unsuccessful synchronization, followed by cancellation of the synchronization (see Figure 4.9).

Periodic scanning cancel
Figure 4.9: Periodic scanning cancel


4.10. Periodic advertising synchronization timeout

A device may lose synchronization with a periodic advertiser (see Figure 4.10).

Periodic scanning timeout
Figure 4.10: Periodic scanning timeout


4.11. Terminate reception of periodic advertising

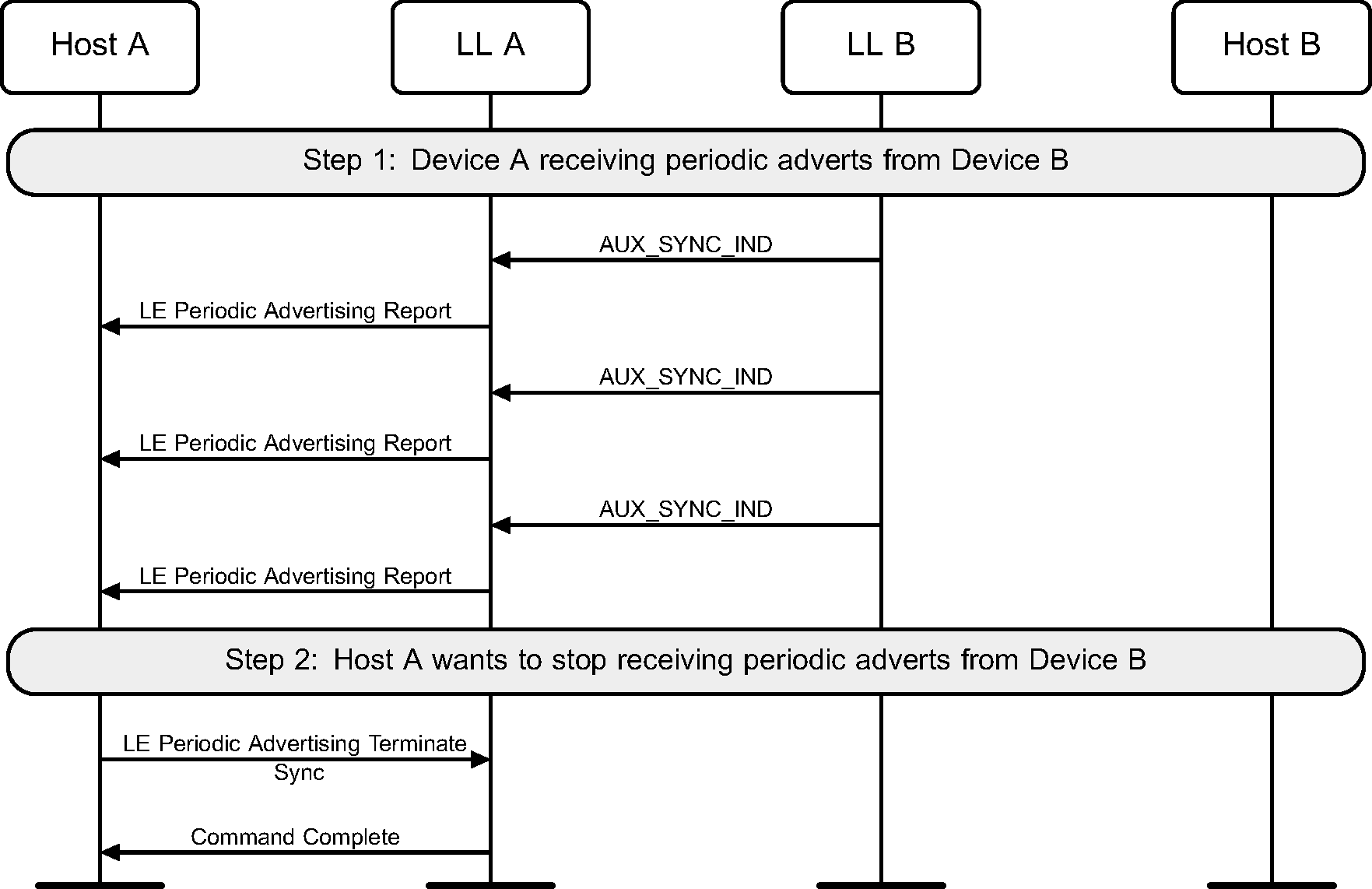

Once synchronized with a periodic advertiser, the Host can terminate the synchronization (see Figure 4.11).

Periodic scanning terminate
Figure 4.11: Periodic scanning terminate


4.12. Connectionless Constant Tone Extension reception

A device may receive periodic advertising packets containing a Constant Tone Extension and send IQ samples to the Host (see Figure 4.12).

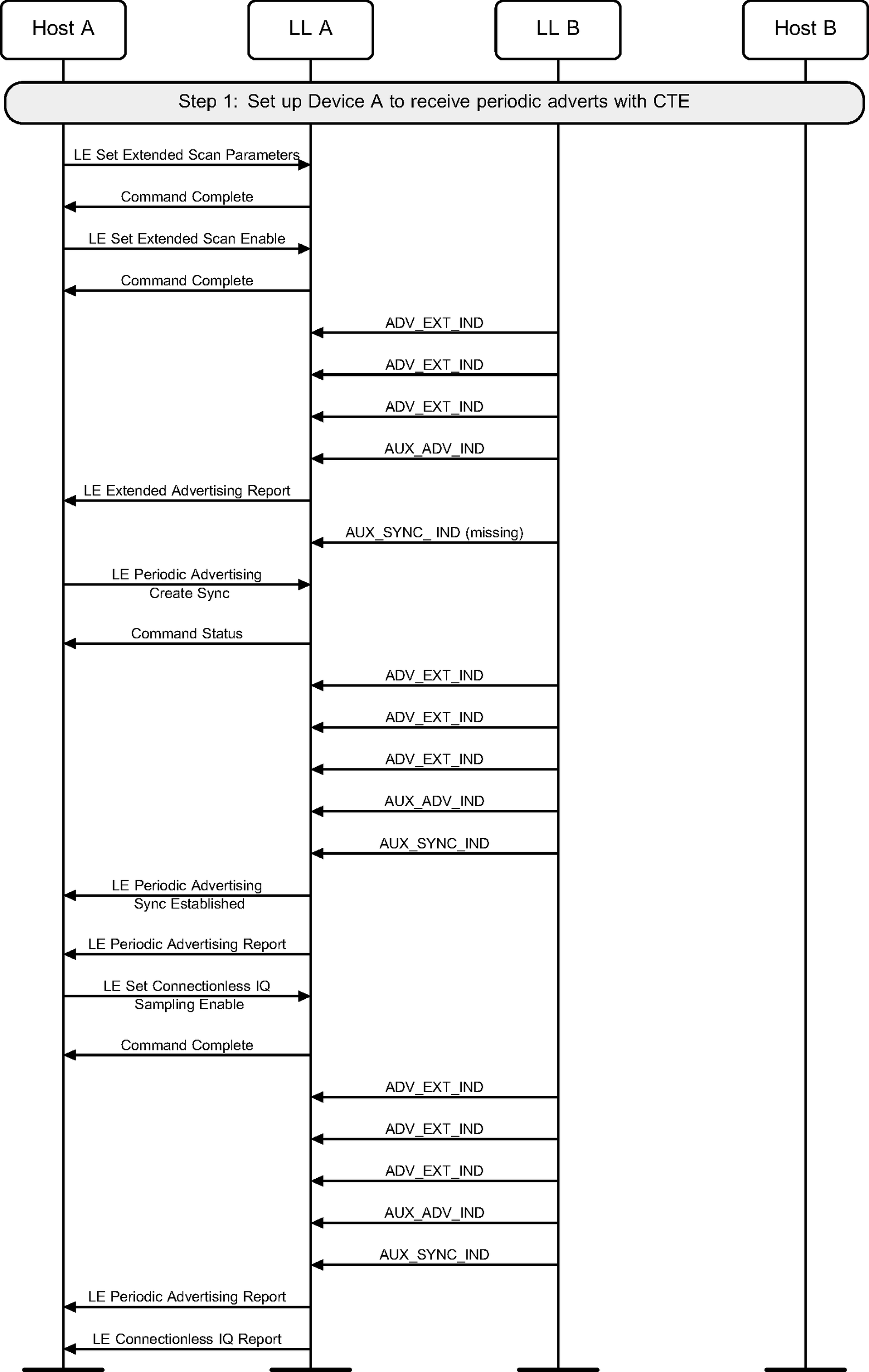

Connectionless Constant Tone Extension reception
Figure 4.12: Connectionless Constant Tone Extension reception


4.13. Synchronization with separate enable of reports

A device may enable or disable reports after establishing synchronization with a periodic advertising train.

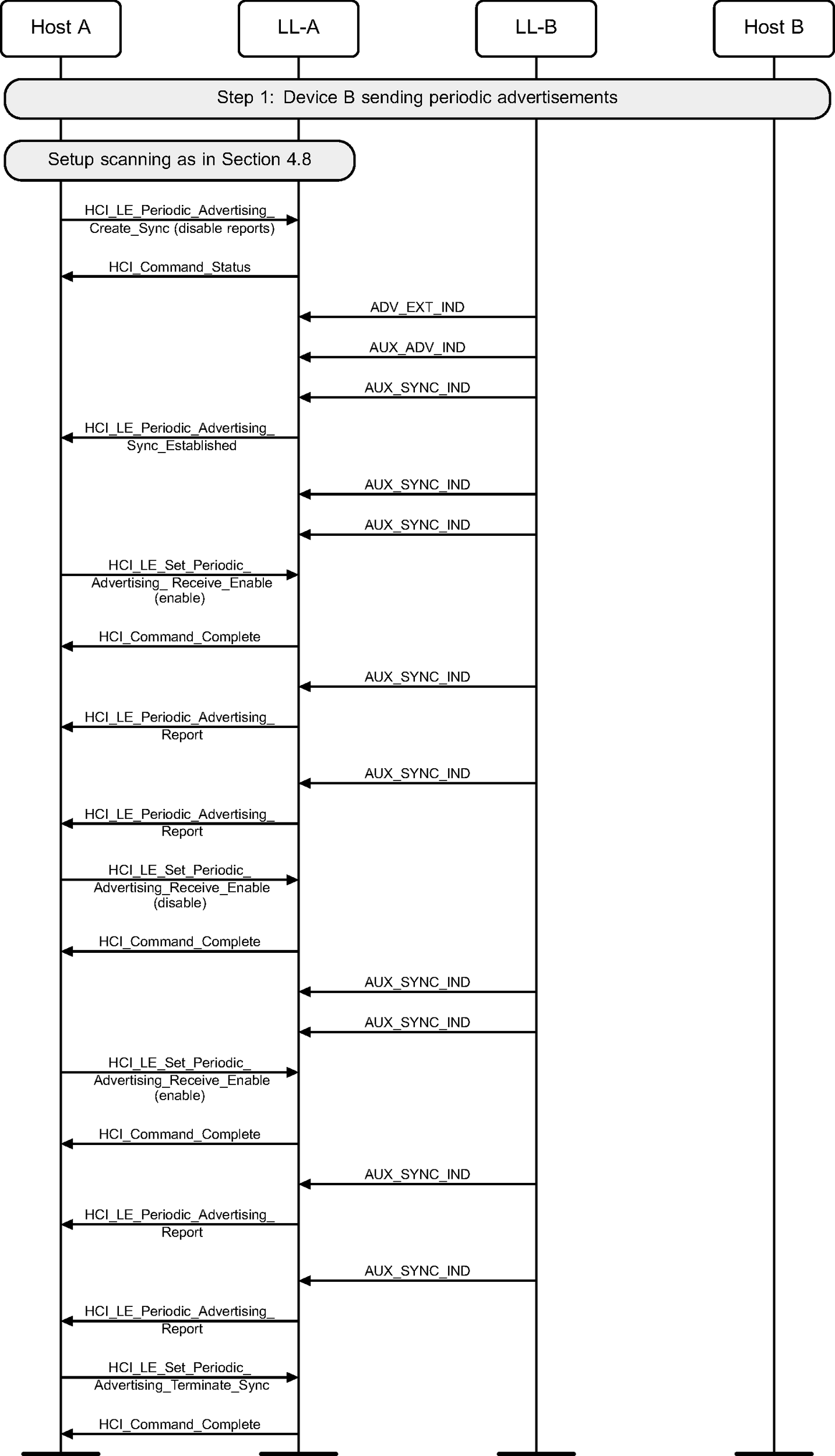

Periodic scanning with separate enable
Figure 4.13: Periodic scanning with separate enable


5. Initiating state

5.1. Initiating a connection

A device can initiate a connection to an advertiser. This example shows a successful initiation, resulting in both devices able to send application data (see Figure 5.1).

Initiating a connection
Figure 5.1: Initiating a connection


5.2. Canceling an initiation

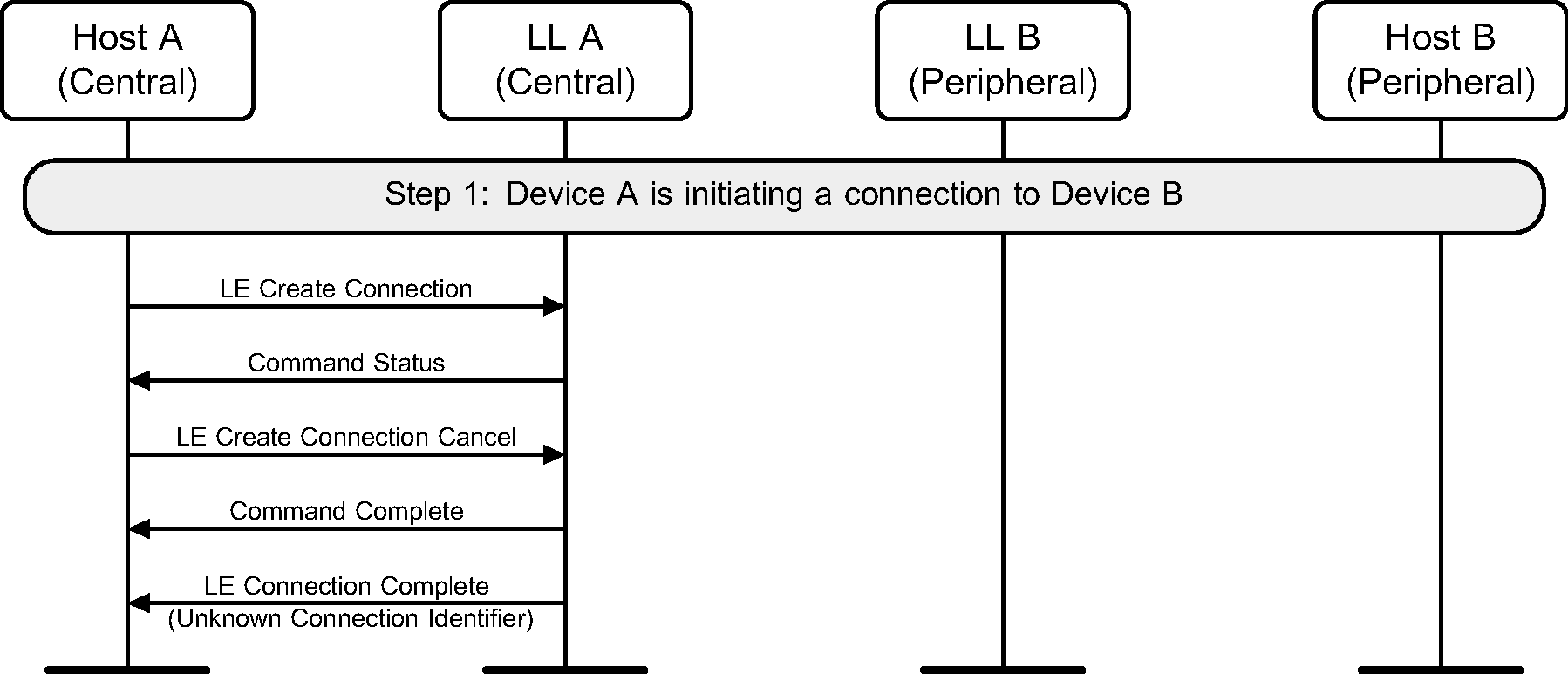

A device can cancel a pending connection creation. This example shows an unsuccessful initiation, followed by a cancellation of the initiation (see Figure 5.2).

Canceling an initiation
Figure 5.2: Canceling an initiation


5.3. Initiating a connection using undirected advertising with Privacy

A device can initiate a connection to an advertiser. Privacy may be used during connection initiation to make it more difficult to track either device during connection setup. The example shows a successful initiation, resulting in both devices able to send application data (see Figure 5.3).

Initiating a connection using undirected advertising with Privacy
Figure 5.3: Initiating a connection using undirected advertising with Privacy


5.4. Initiating a connection using directed advertising with Privacy

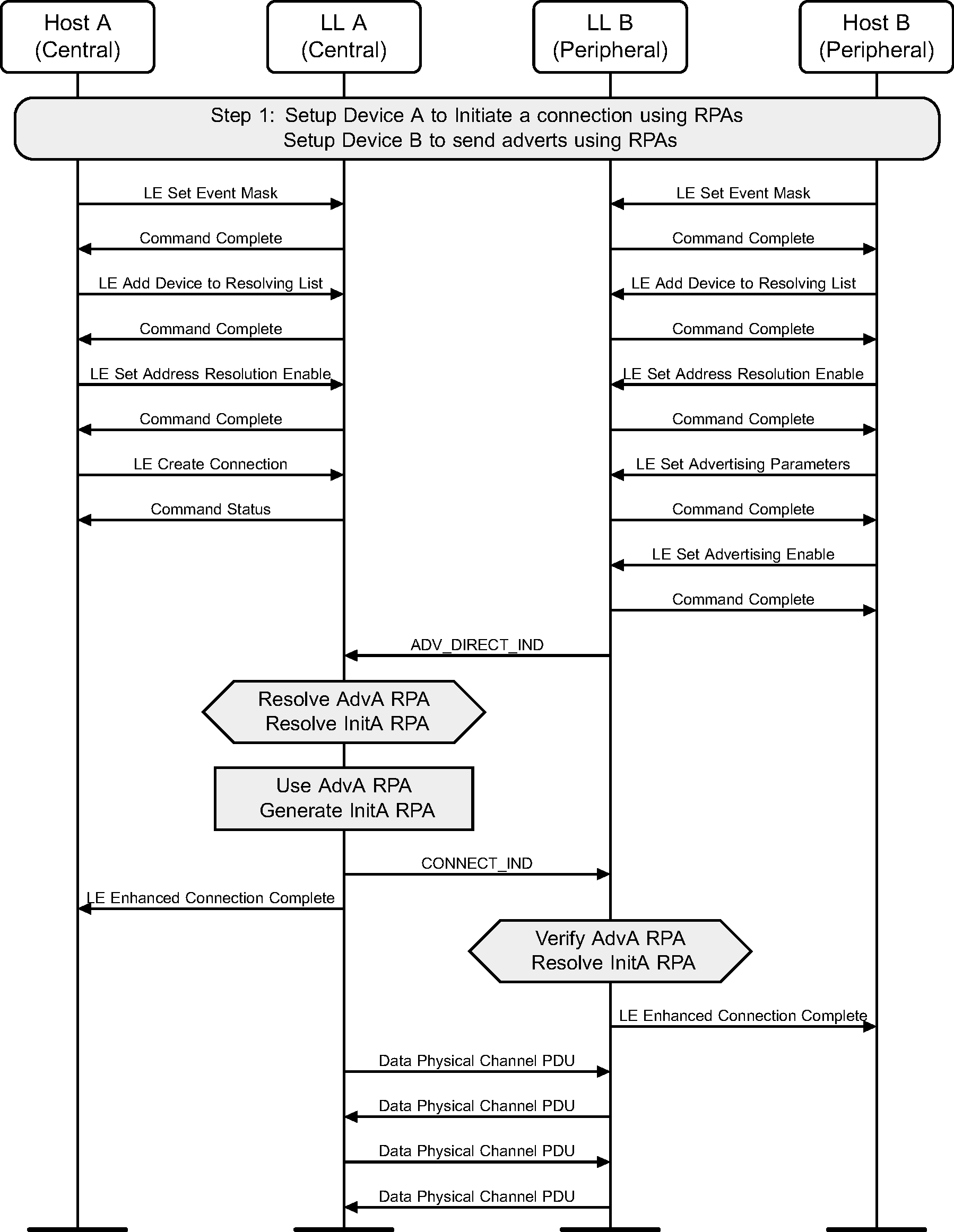

A device can initiate a connection to an advertiser who is using Directed Advertising. Privacy may be used during connection initiation to make it more difficult to track either device during connection setup as well as target a single initiator. The example shows a successful initiation, resulting in both devices able to send application data (see Figure 5.4).

Initiating a connection using directed advertising with Privacy
Figure 5.4: Initiating a connection using directed advertising with Privacy


5.5. Initiating a connection that fails to establish

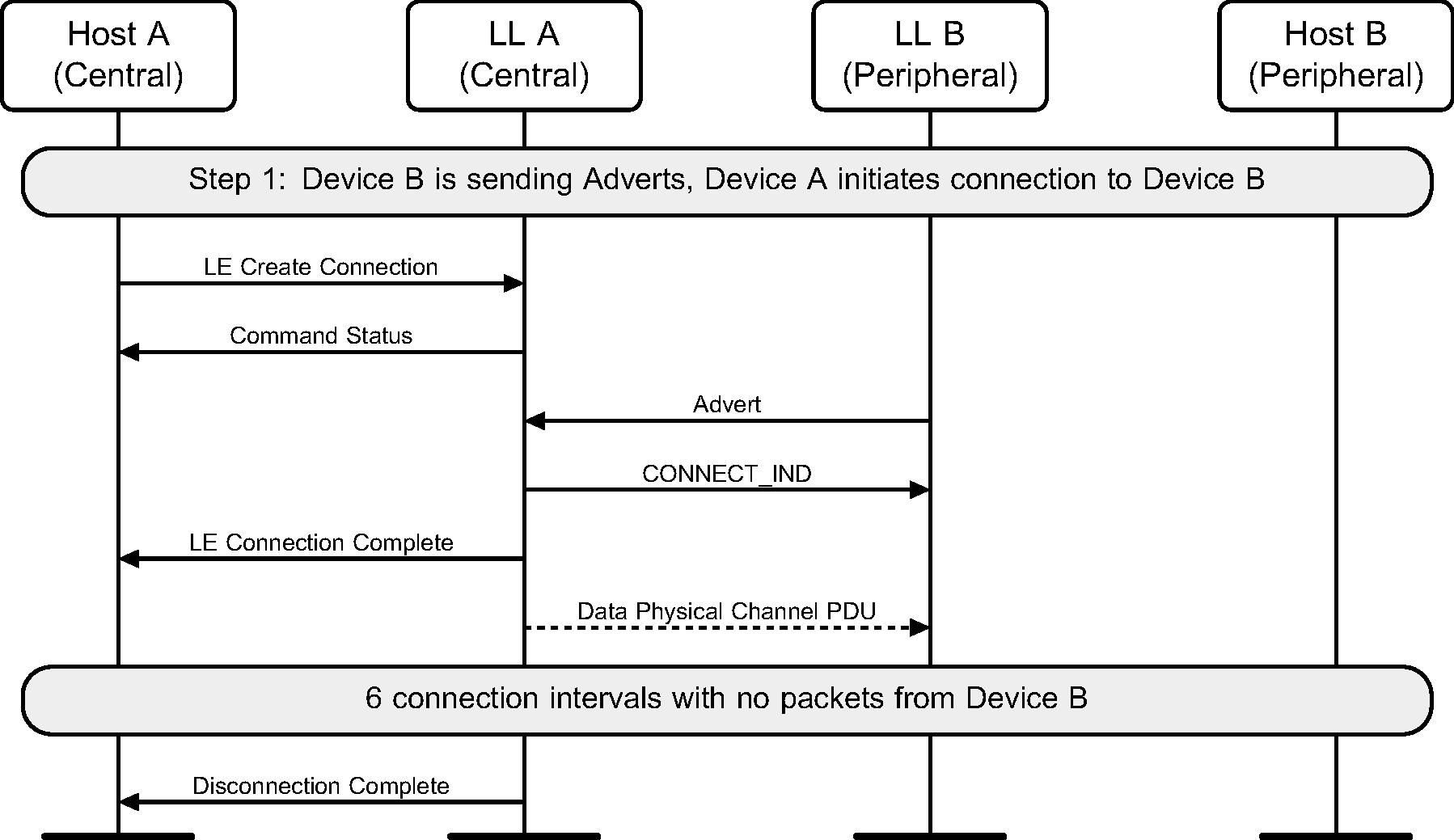

This example shows an initiation that fails to establish because Device B (the advertiser) fails to respond to the Data Physical Channel PDUs sent by Device A.

Initiating a connection that fails to establish
Figure 5.5: Initiating a connection that fails to establish


Device A is not required to send Data Channel PDUs in the 6 connection intervals before establishment fails. However, if it does not do so, Device B is unable to respond.

5.6. Initiating a connection on the secondary advertising physical channel

A device can initiate a connection to an advertiser on the secondary channel. This example shows a successful initiation, resulting in both devices able to send application data (see Figure 5.6).

Initiating a connection on the secondary advertising physical channel
Figure 5.6: Initiating a connection on the secondary advertising physical channel

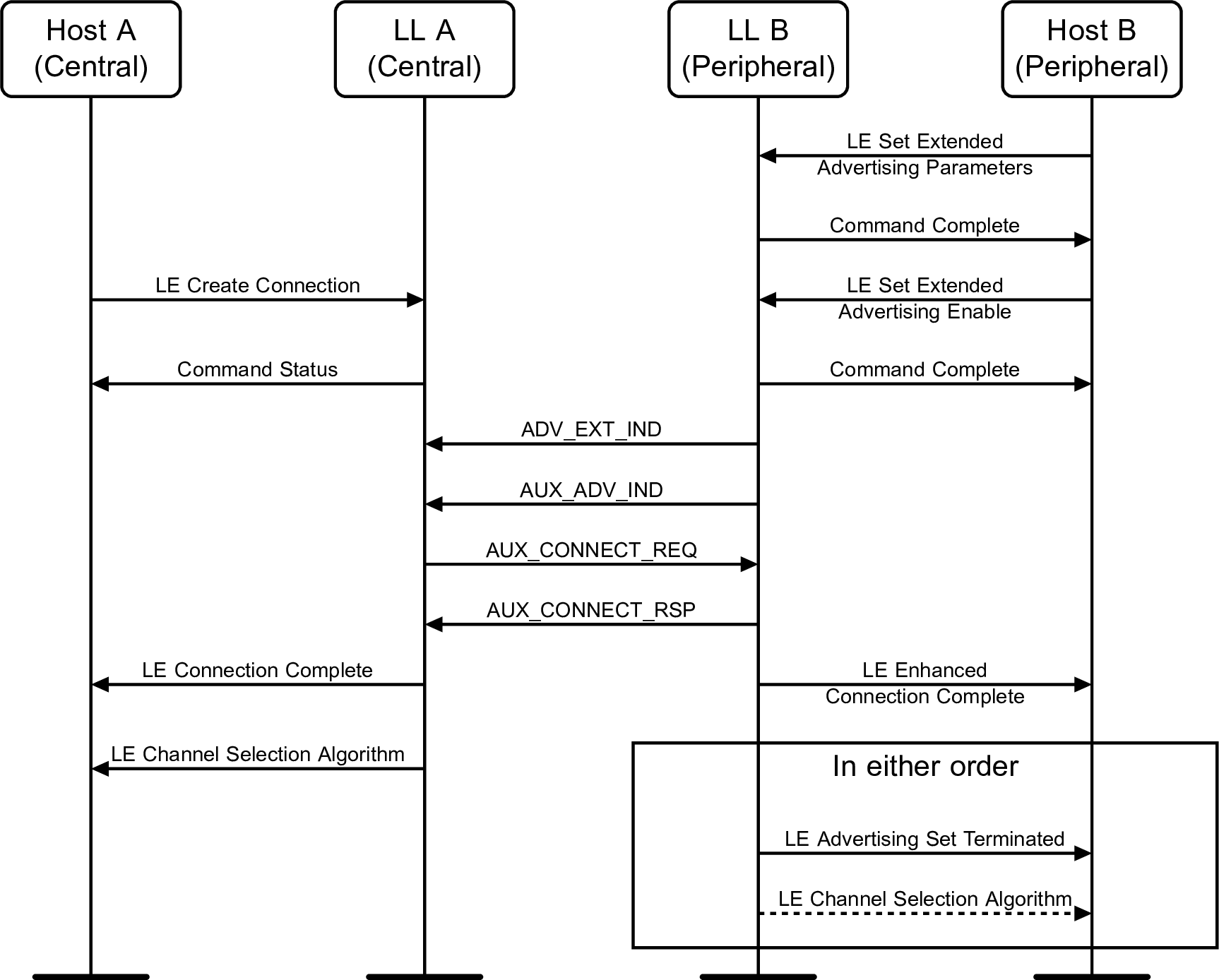

5.7. Initiating a Channel Selection algorithm #2 connection

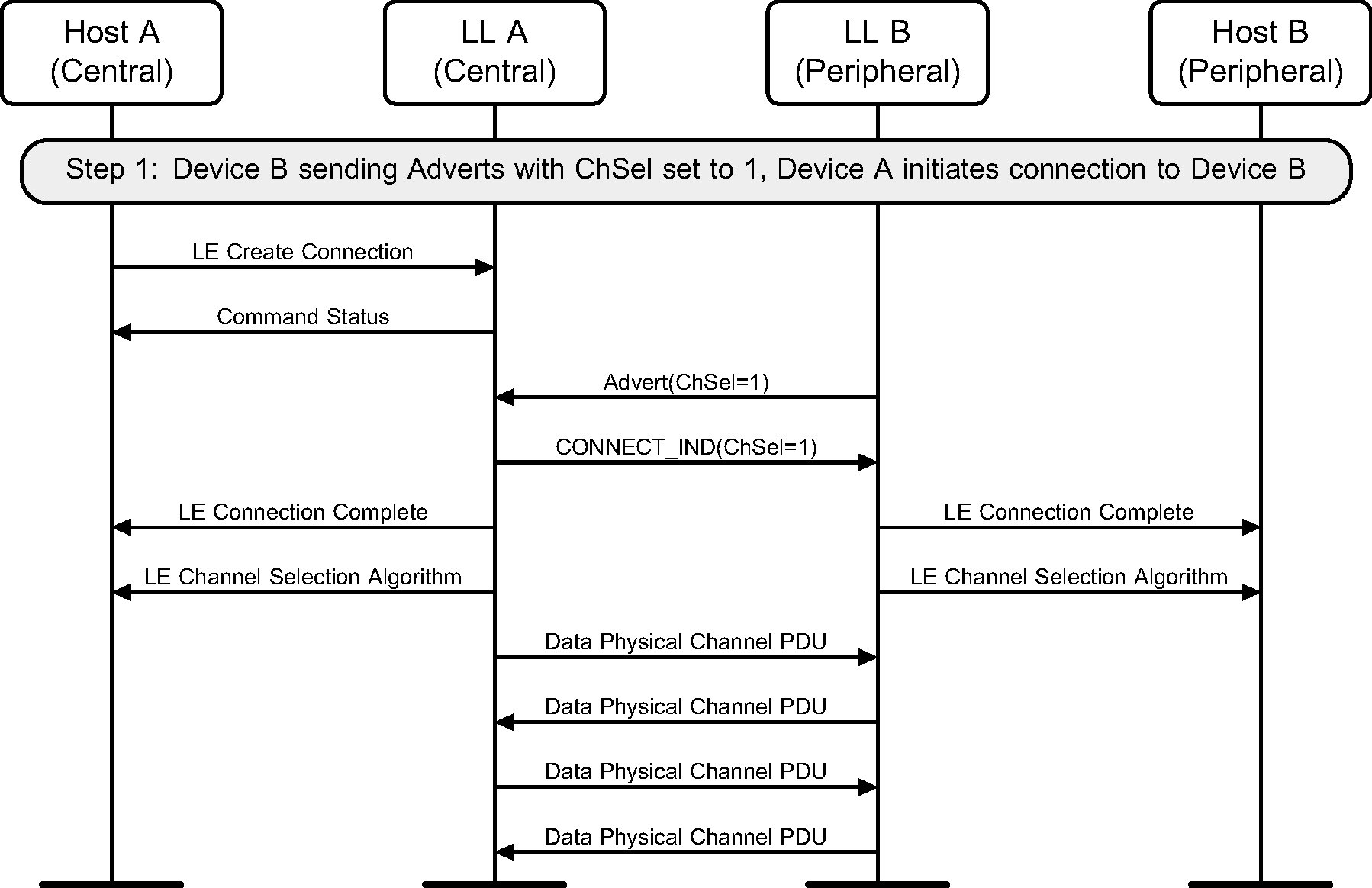

Where a device supports the Channel Selection Algorithm #2 feature, it can initiate a connection which will use Channel Selection Algorithm #2 to an advertiser who has the ChSel field of the advertising physical channel PDU set to 1. The example shows a successful initiation, resulting in the connection using Channel Selection Algorithm #2.

Initiating a Channel Selection algorithm #2 connection
Figure 5.7: Initiating a Channel Selection algorithm #2 connection


5.8. Initiating a connection using an advertising set

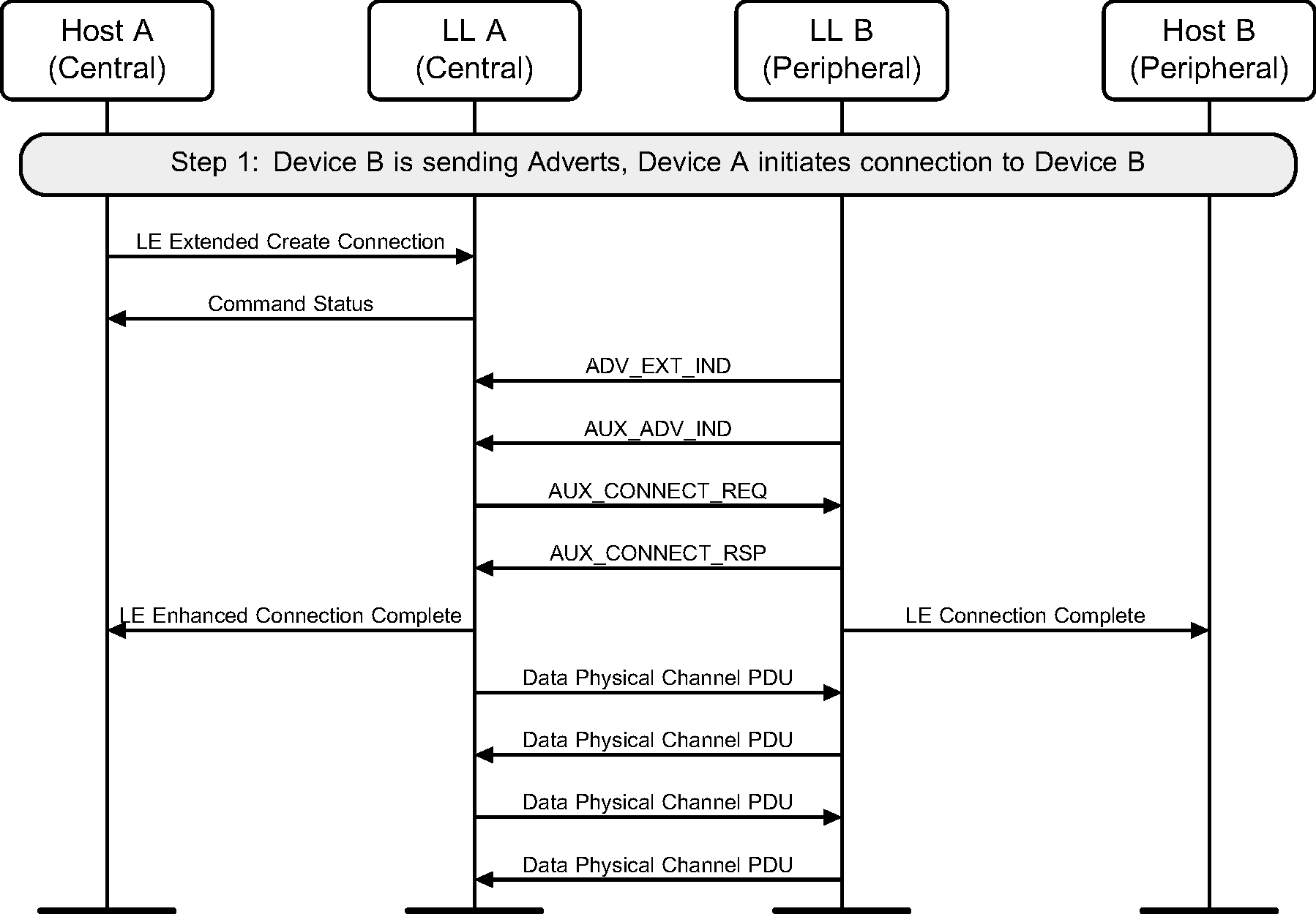

A device can initiate a connection to an advertiser using an Extended Advertising advertising set. This causes additional events to be generated (see Figure 5.8). The LE Channel Selection Algorithm event can be generated irrespective of which algorithm is used by the connection.

Initiating a connection using an advertising set
Figure 5.8: Initiating a connection using an advertising set


6. Connection state

6.1. Sending data

Once two devices are in a connection, either device can send data. This example shows both devices sending data, for example when the Attribute Protocol does a read request and a read response is returned (see Figure 6.1).

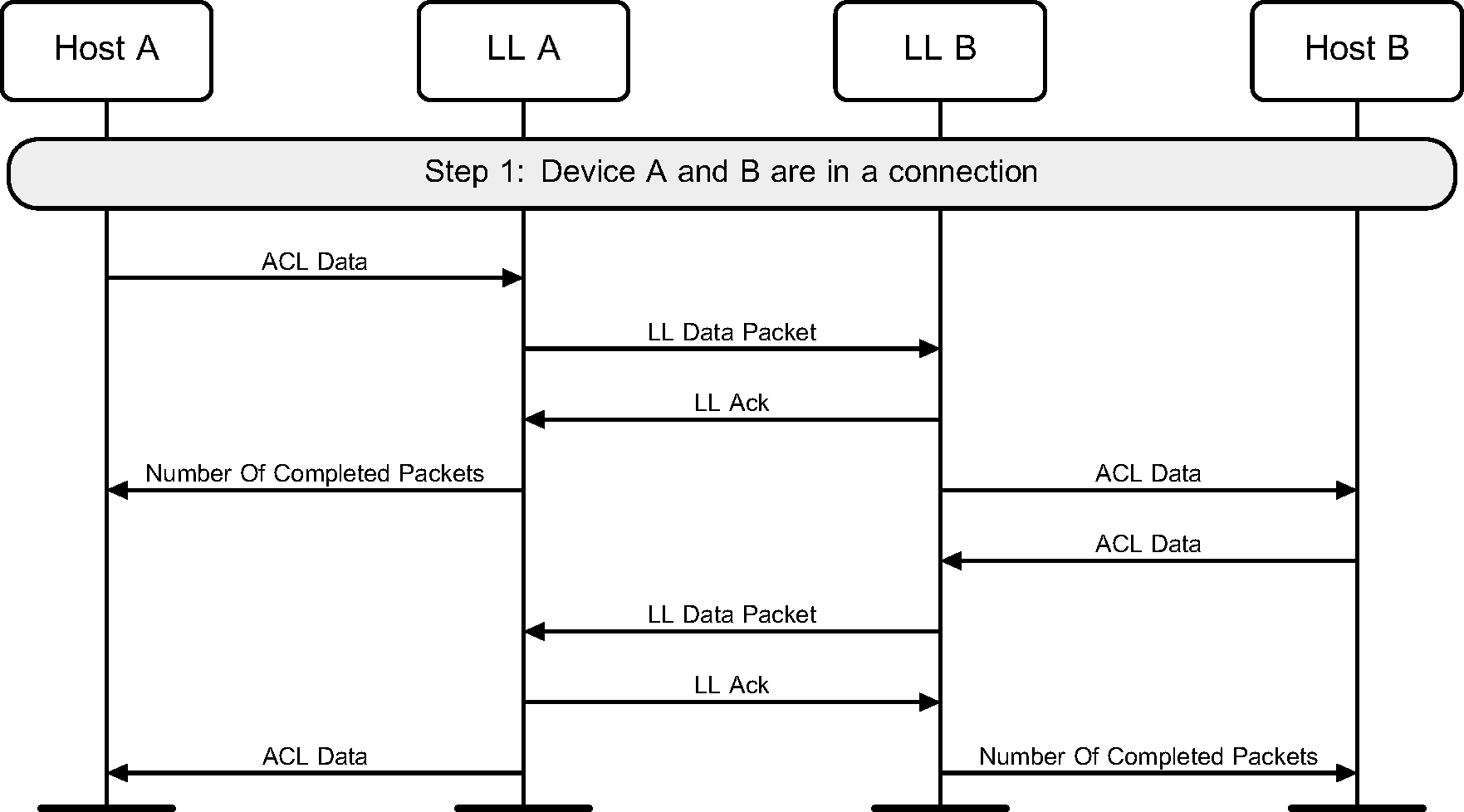

Sending data
Figure 6.1: Sending data


6.2. Connection update

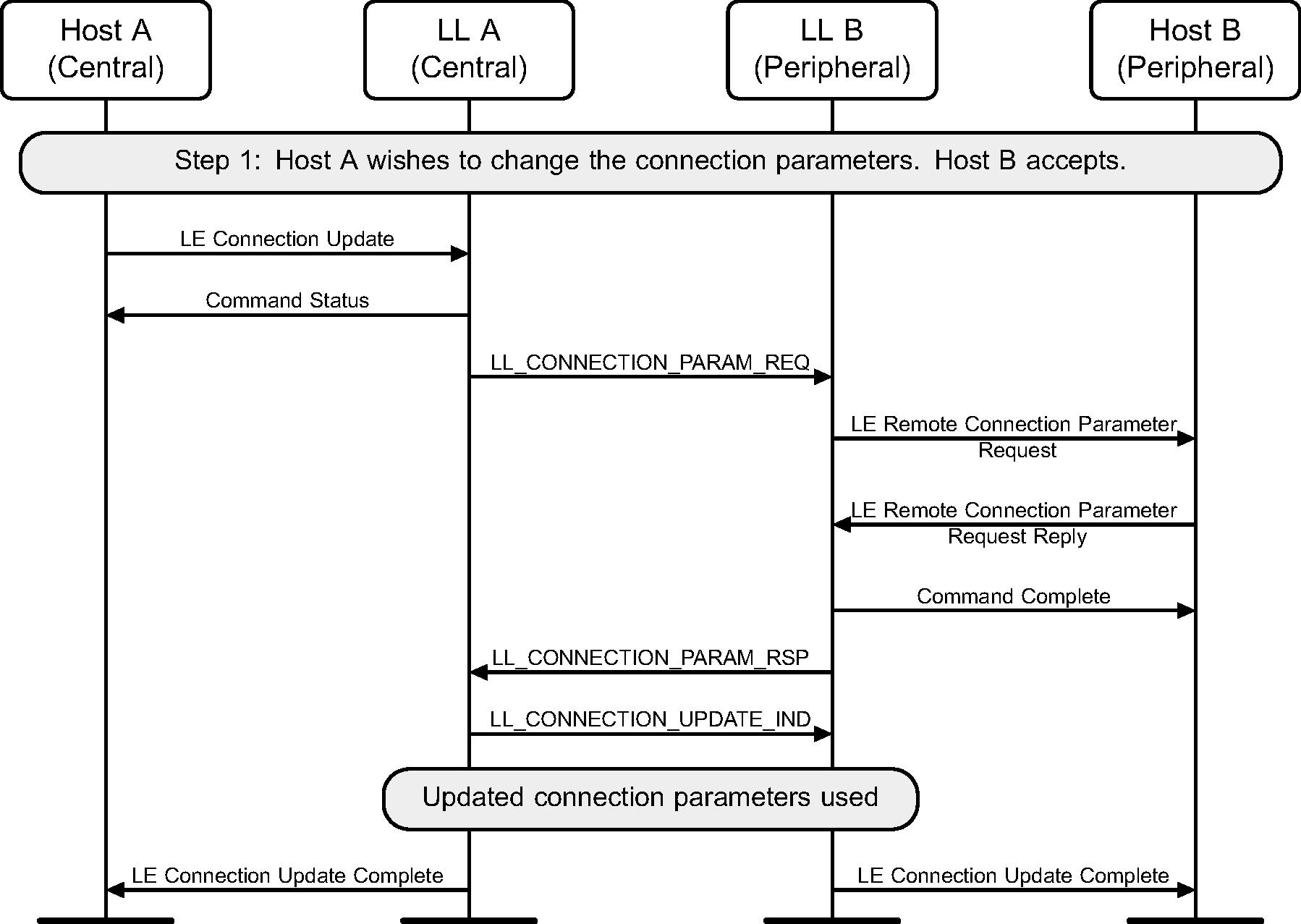

The Central of the connection may request a connection update using a Link Layer control procedure (see Figure 6.2).

Connection update
Figure 6.2: Connection update


6.3. Channel map update

The Controller of the Central may receive some channel classification data from the Host and then perform the Channel Update Link Layer Control procedure (see Figure 6.3).

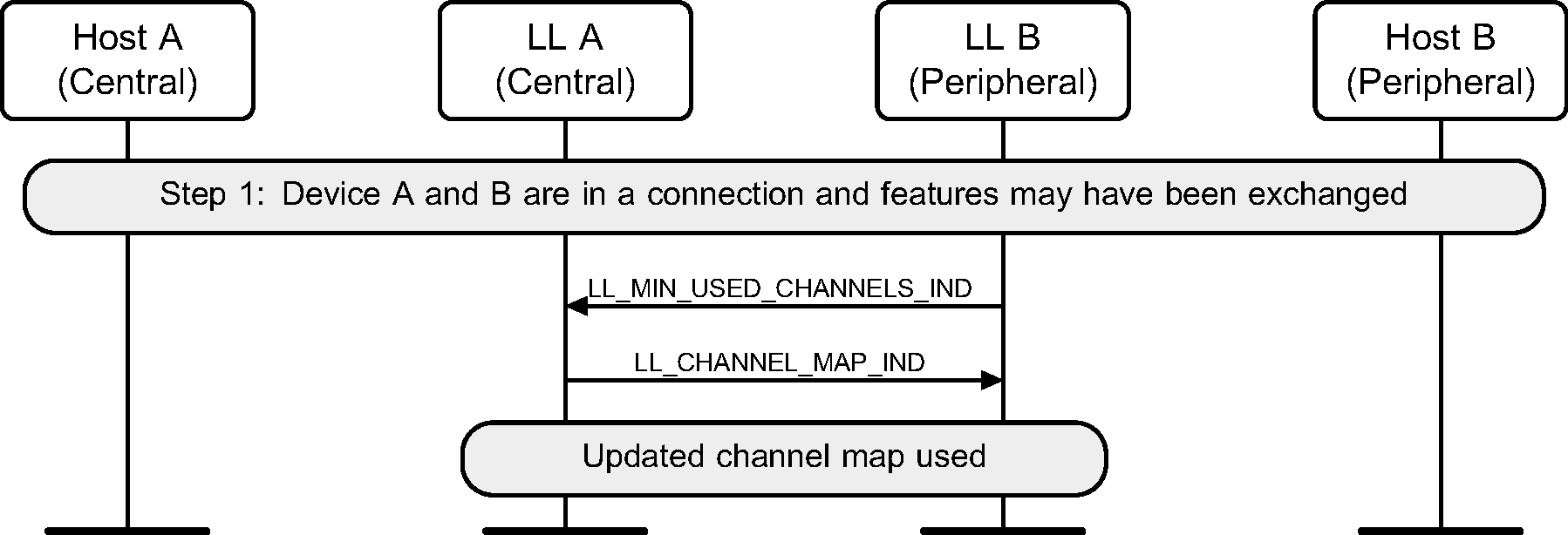

Channel map update
Figure 6.3: Channel map update


6.4. Features exchange

Both the Central and Peripheral can discover the set of features available on the remote device. To just fetch page 0, the Feature Exchange Link Layer Control procedure is used (see Figure 6.4 and Figure 6.5).

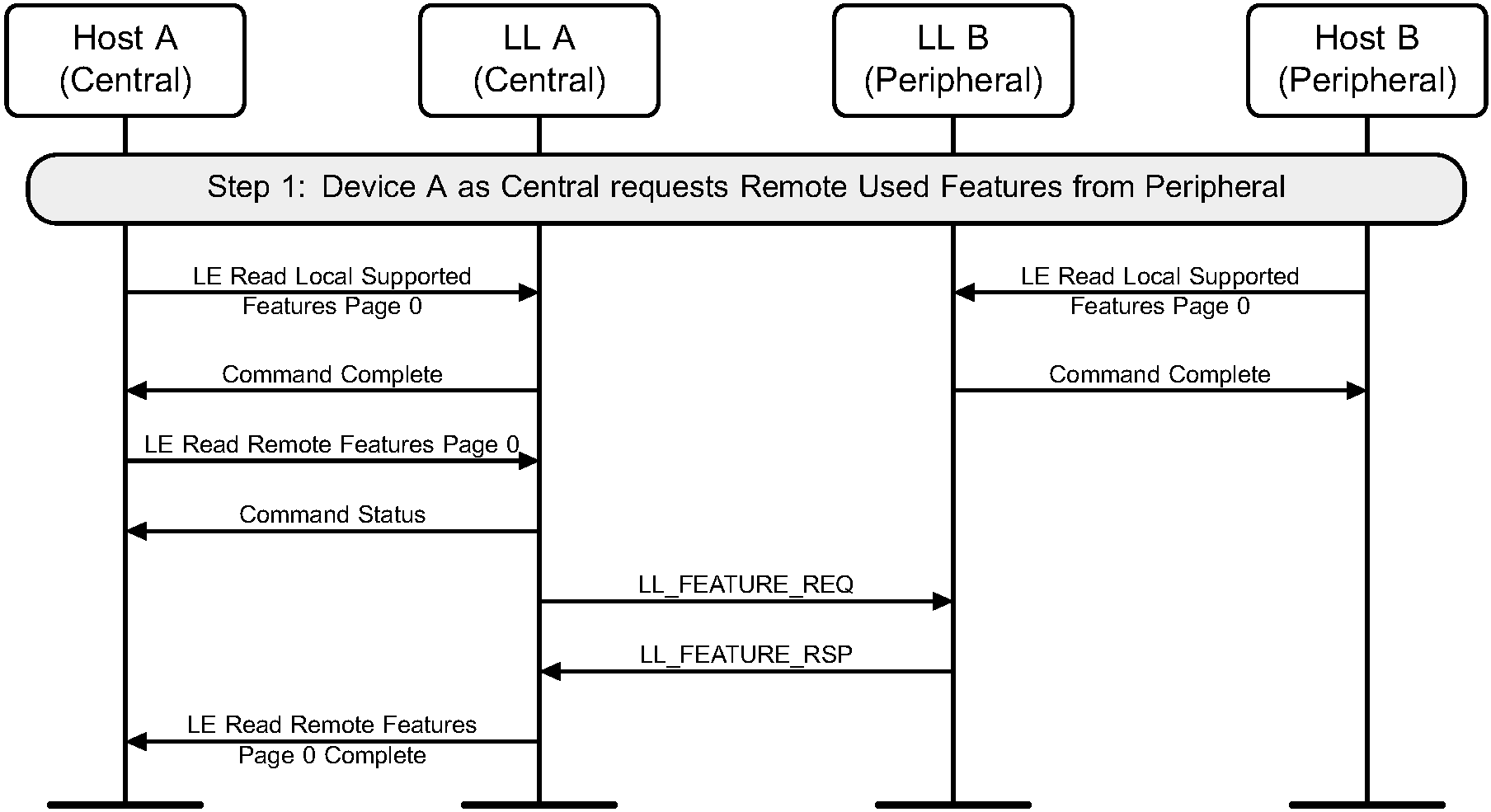

Central-initiated features exchange
Figure 6.4: Central-initiated features exchange


Peripheral-initiated features exchange
Figure 6.5: Peripheral-initiated features exchange


To fetch the entire feature list, this procedure is combined with 10 uses of the Feature Page Exchange procedure (see Figure 6.6).

Complete feature exchange
Figure 6.6: Complete feature exchange


If the peer only supports features in pages 0 to 2, then the Feature Page Exchange procedure need only be used twice (see Figure 6.7).

Complete feature exchange where only pages 0 to 2 are used
Figure 6.7: Complete feature exchange where only pages 0 to 2 are used

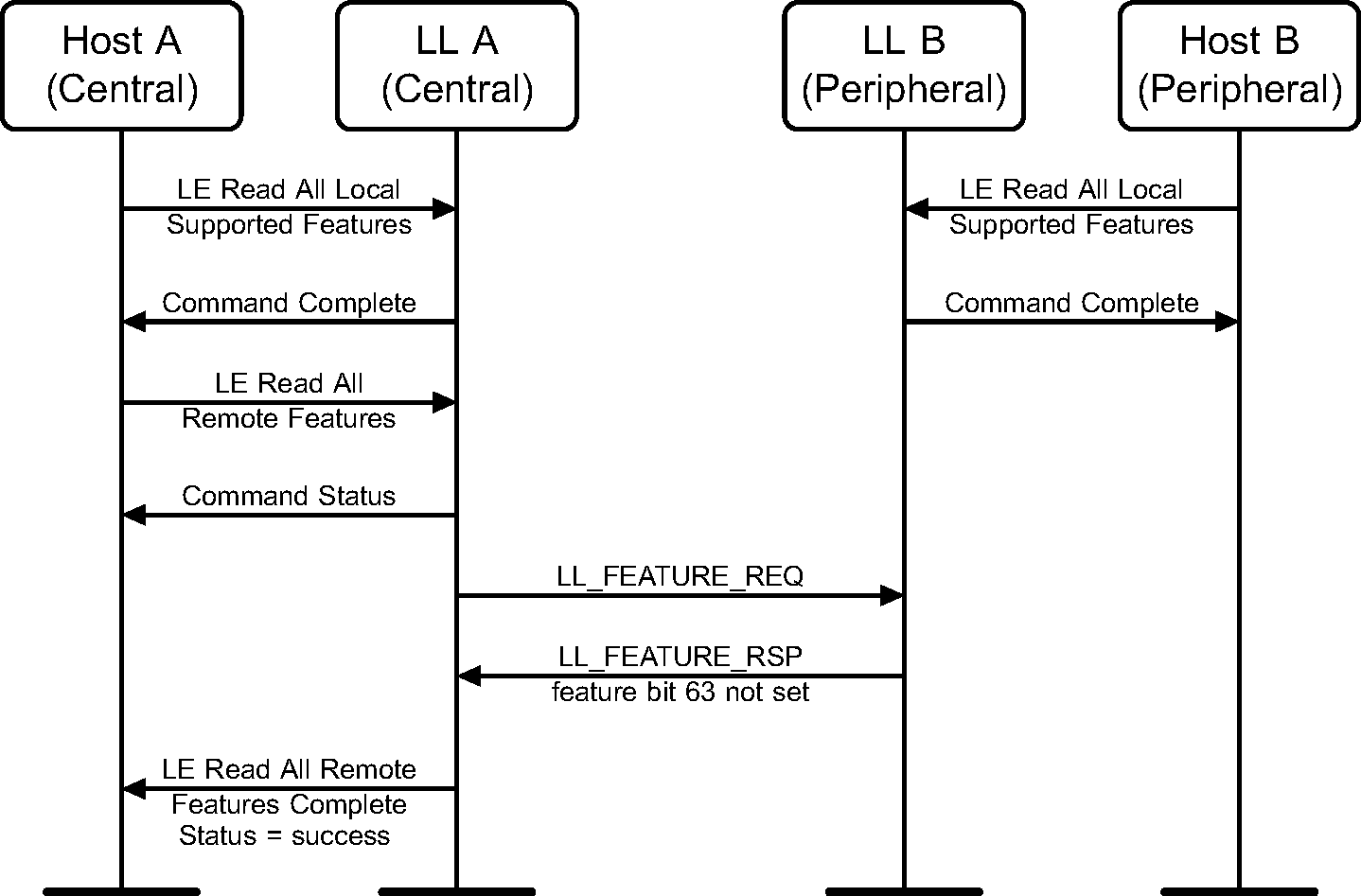

If the Peripheral does not support the Feature Page Exchange procedure, then the command has finished successfully as soon as it determines that it does not support the new procedure (see Figure 6.8).

Complete feature exchange where the Peripheral does not support the new procedure
Figure 6.8: Complete feature exchange where the Peripheral does not support the new procedure


6.5. Version exchange

Either device may perform a Version Exchange procedure (see Figure 6.9 and Figure 6.10).

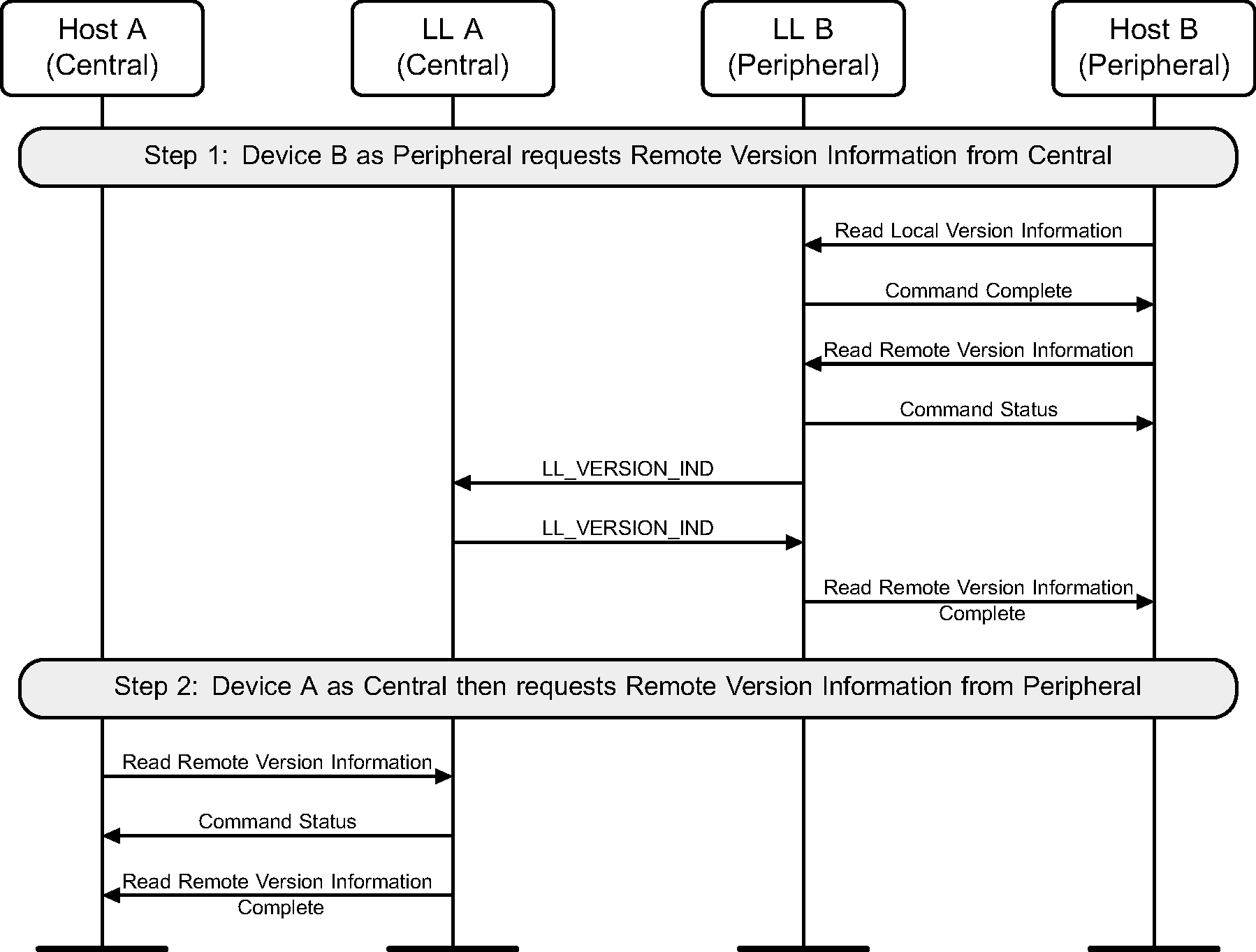

Version exchange from Central
Figure 6.9: Version exchange from Central


Version exchange from Peripheral
Figure 6.10: Version exchange from Peripheral


6.6. Start encryption

If encryption has not been started on a connection, it may be started by the Central (see Figure 6.11).

Start encryption

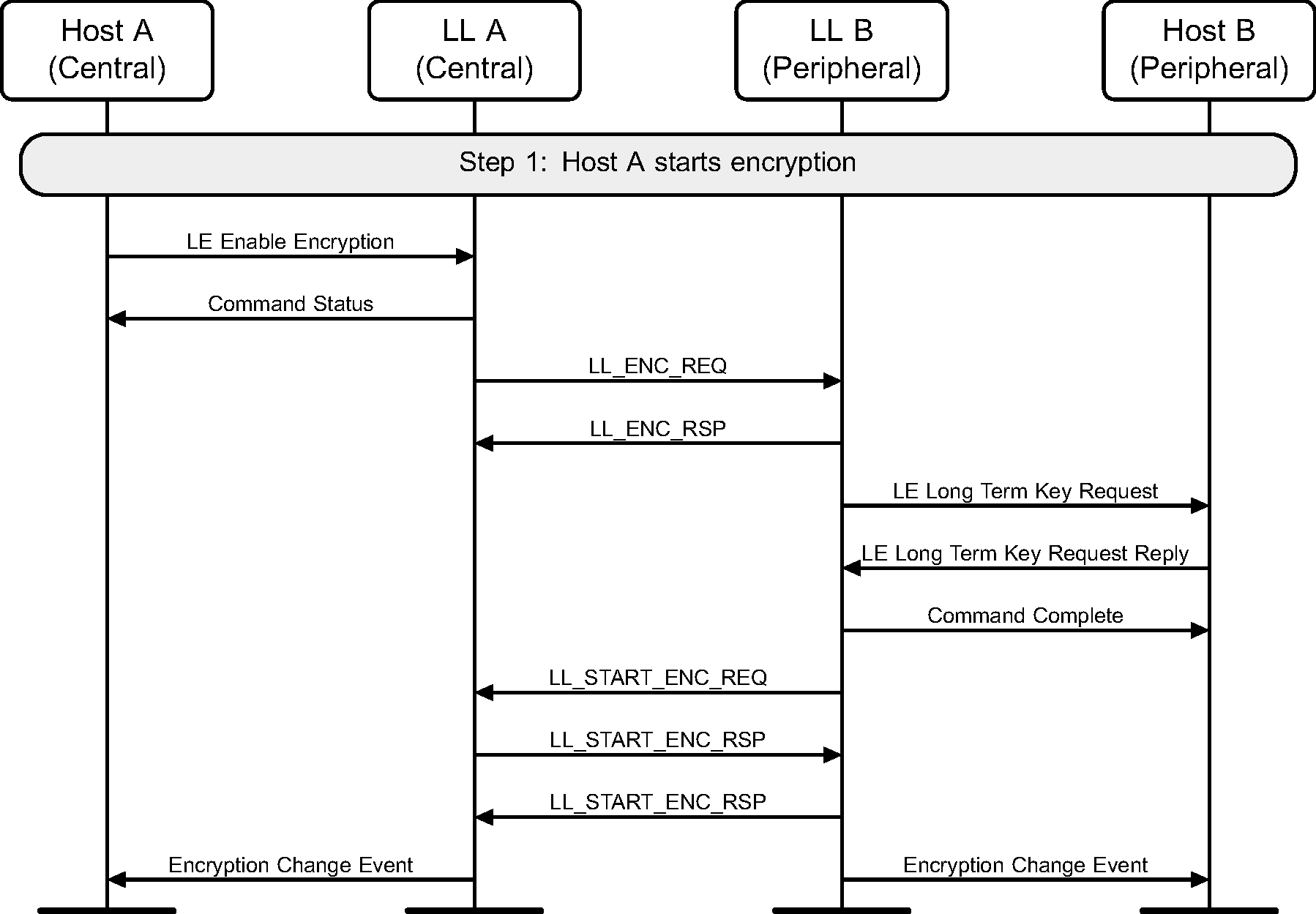

Figure 6.11: Start encryption


6.7. Start encryption without long-term key

If encryption has not been started on a connection, it may be started by the Central. Figure 6.12 shows the failure case of the Peripheral not having the long term key for the Central.

Start encryption without long-term key
Figure 6.12: Start encryption without long-term key


6.8. Start encryption with event masked

If encryption has not been started on a connection, it may be started by the Central. Figure 6.13 shows the failure case when the Peripheral has masked out the HCI_LE_­Long_­Term_­Key_­Request event.

Start encryption with Peripheral masking out event

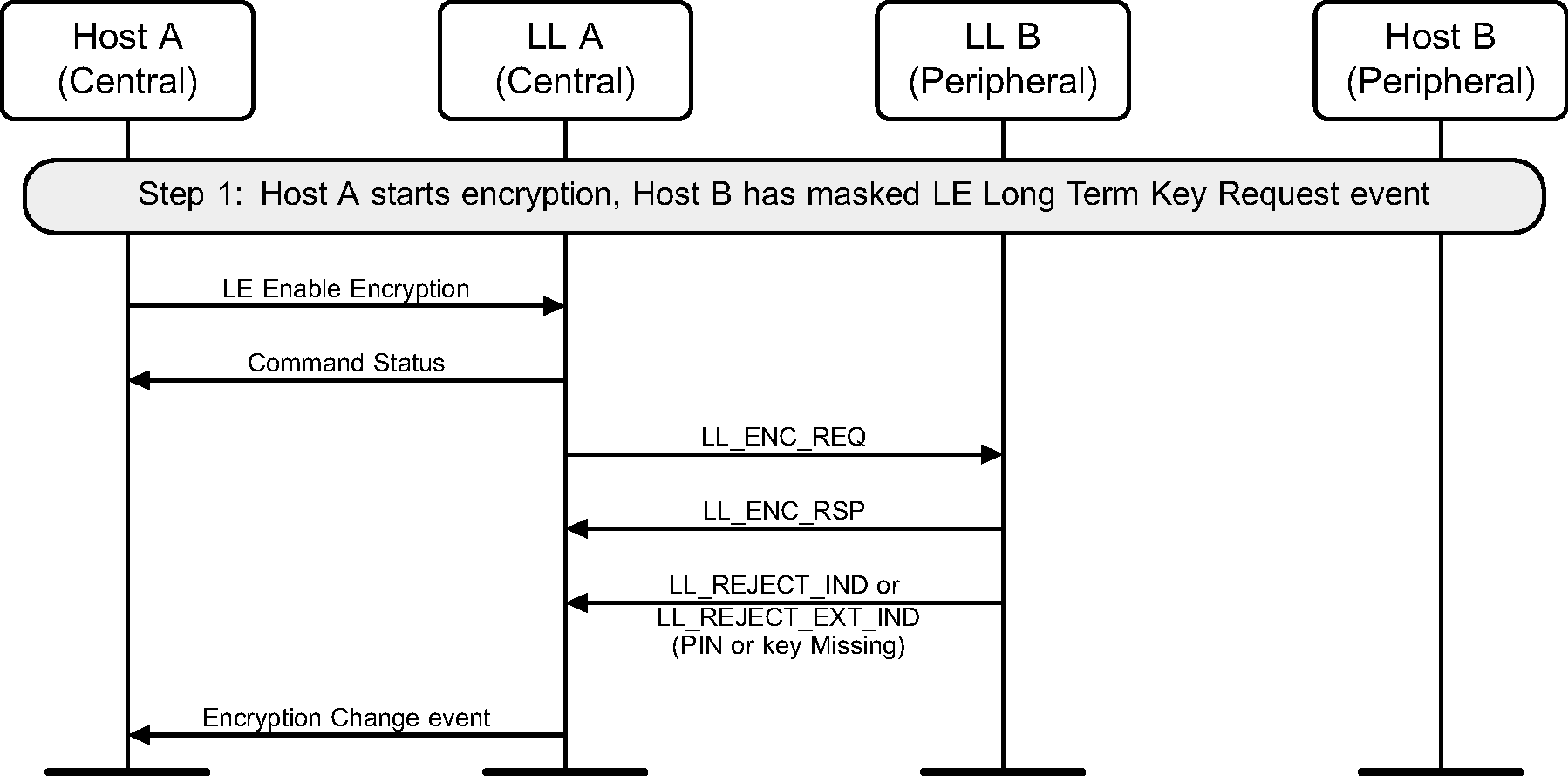

Figure 6.13: Start encryption with Peripheral masking out event


6.9. Start encryption without Peripheral supporting encryption

If encryption has not been started on a connection, it may be started by the Central. Figure 6.14 shows the failure case of the Peripheral that does not support the encryption feature.

Start encryption failure when Peripheral does not support encryption
Figure 6.14: Start encryption failure when Peripheral does not support encryption


6.10. Restart encryption

If encryption has already been started on a connection, it may be restarted by the Central. This may be required to use a stronger encryption as negotiated by the Security Manager Protocol (see Figure 6.15).

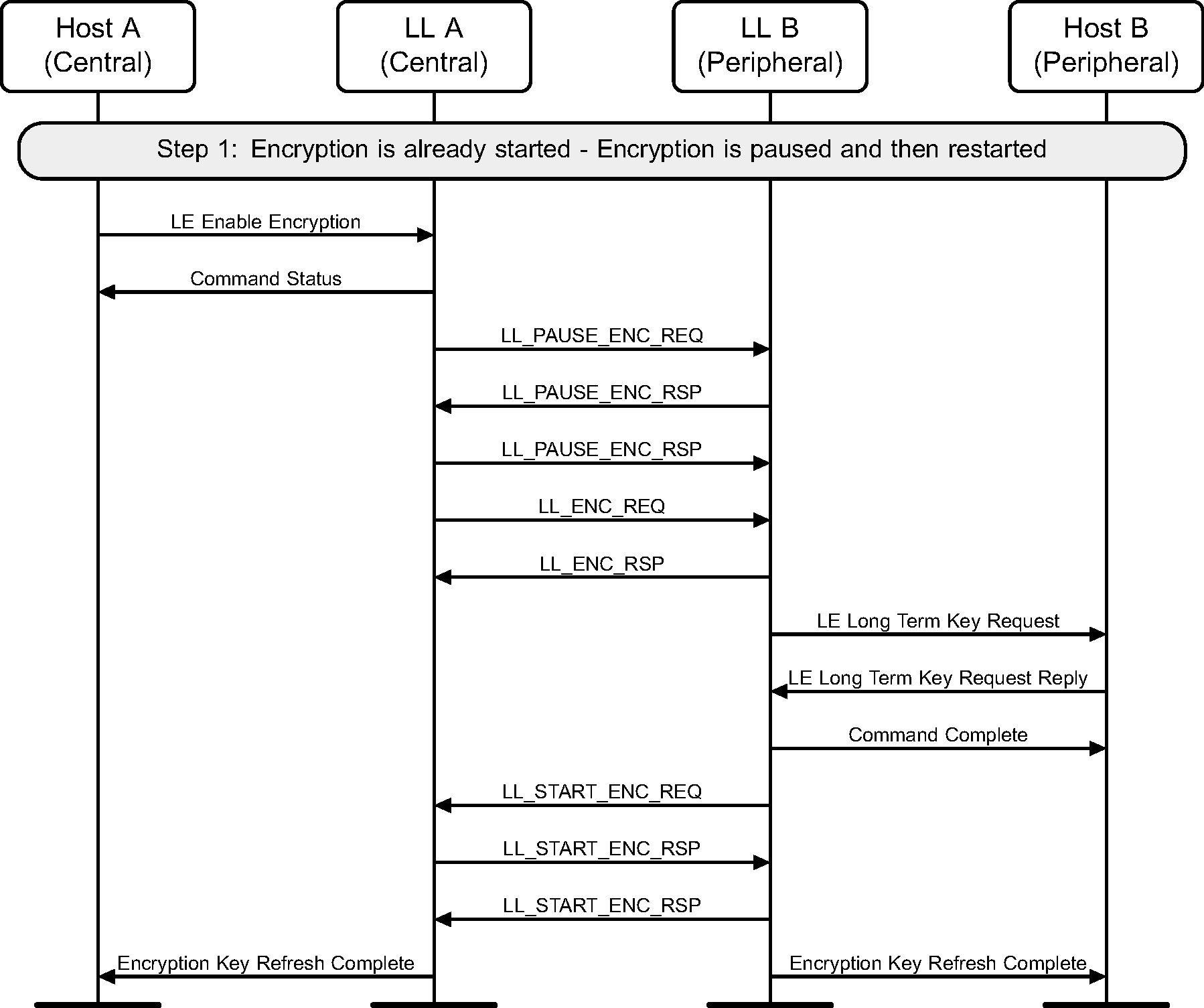

Restart encryption
Figure 6.15: Restart encryption


6.11. Disconnect

Once a connection has no need to be kept active, the Host can disconnect it. This can be done by either device (see Figure 6.16 and Figure 6.17).

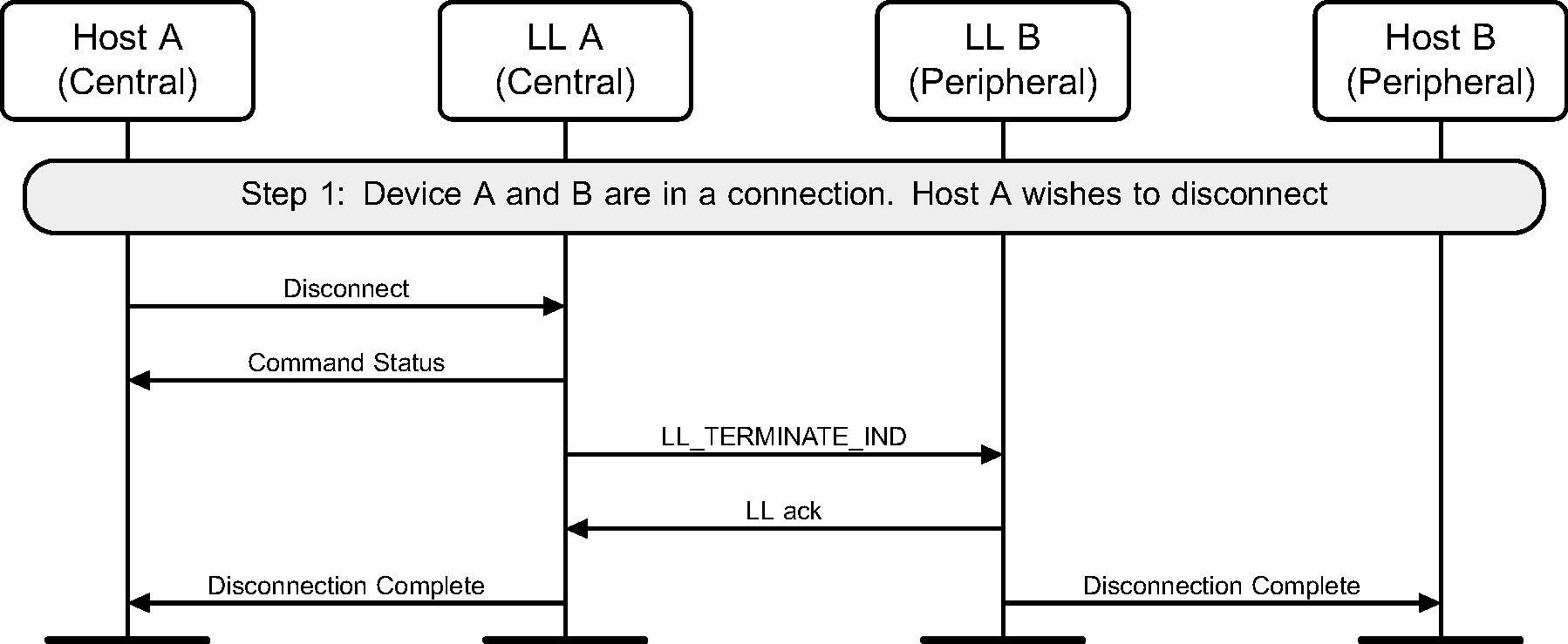

Disconnect from Central
Figure 6.16: Disconnect from Central

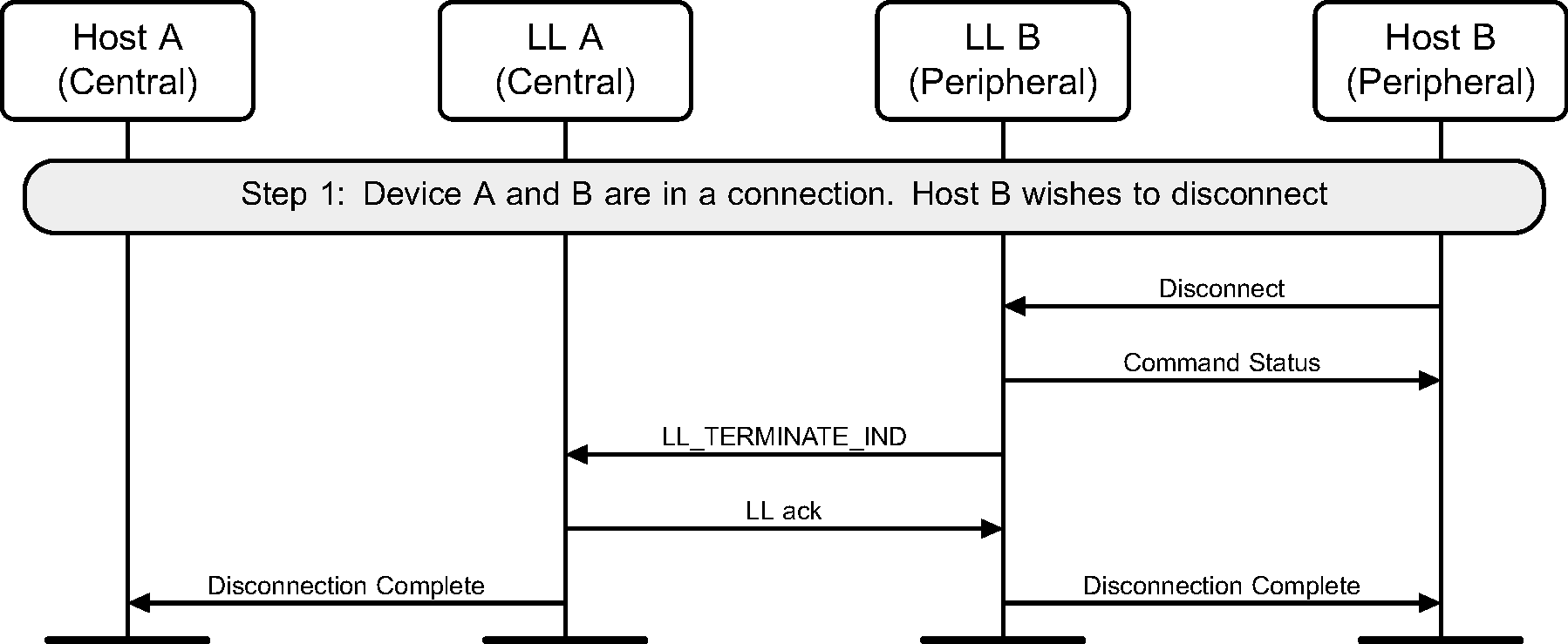

Disconnect from Peripheral
Figure 6.17: Disconnect from Peripheral


6.12. Connection parameters request

The Central or the Peripheral of the connection may request change in connection parameters using a Link Layer control procedure (see Figure 6.18 to Figure 6.25).

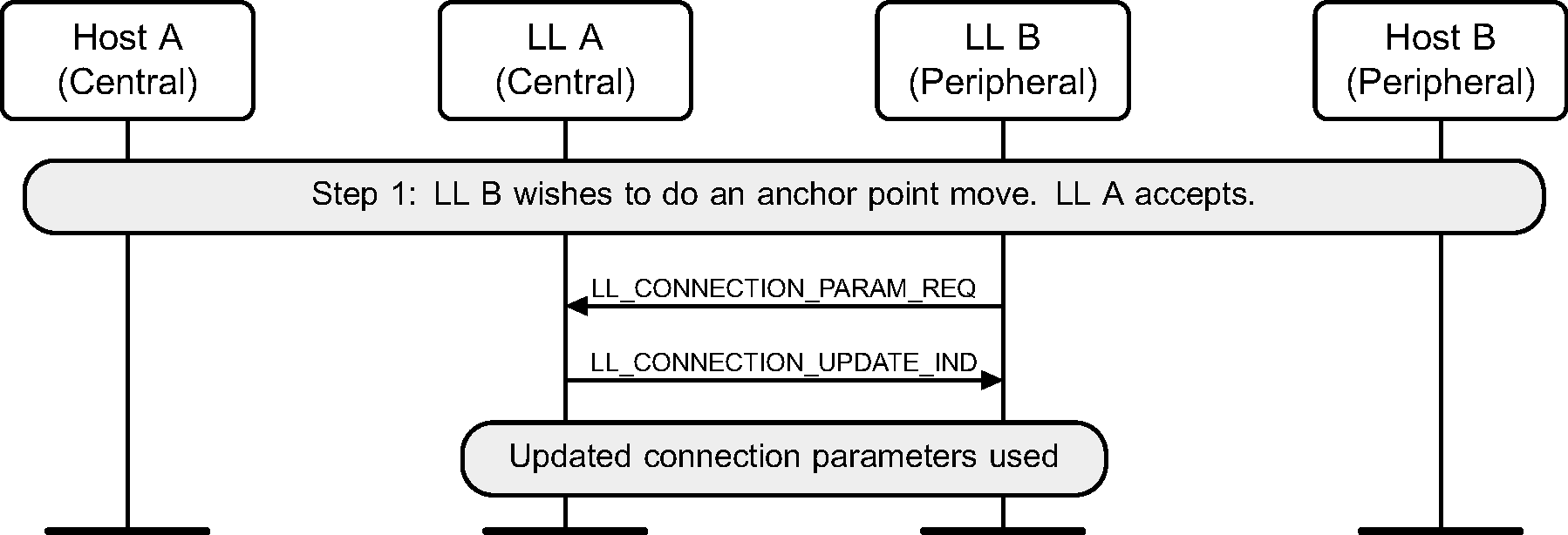

Peripheral-initiated Connection Parameters Request procedure - Peripheral requests a change in anchor points, Central accepts
Figure 6.18: Peripheral-initiated Connection Parameters Request procedure - Peripheral requests a change in anchor points, Central accepts


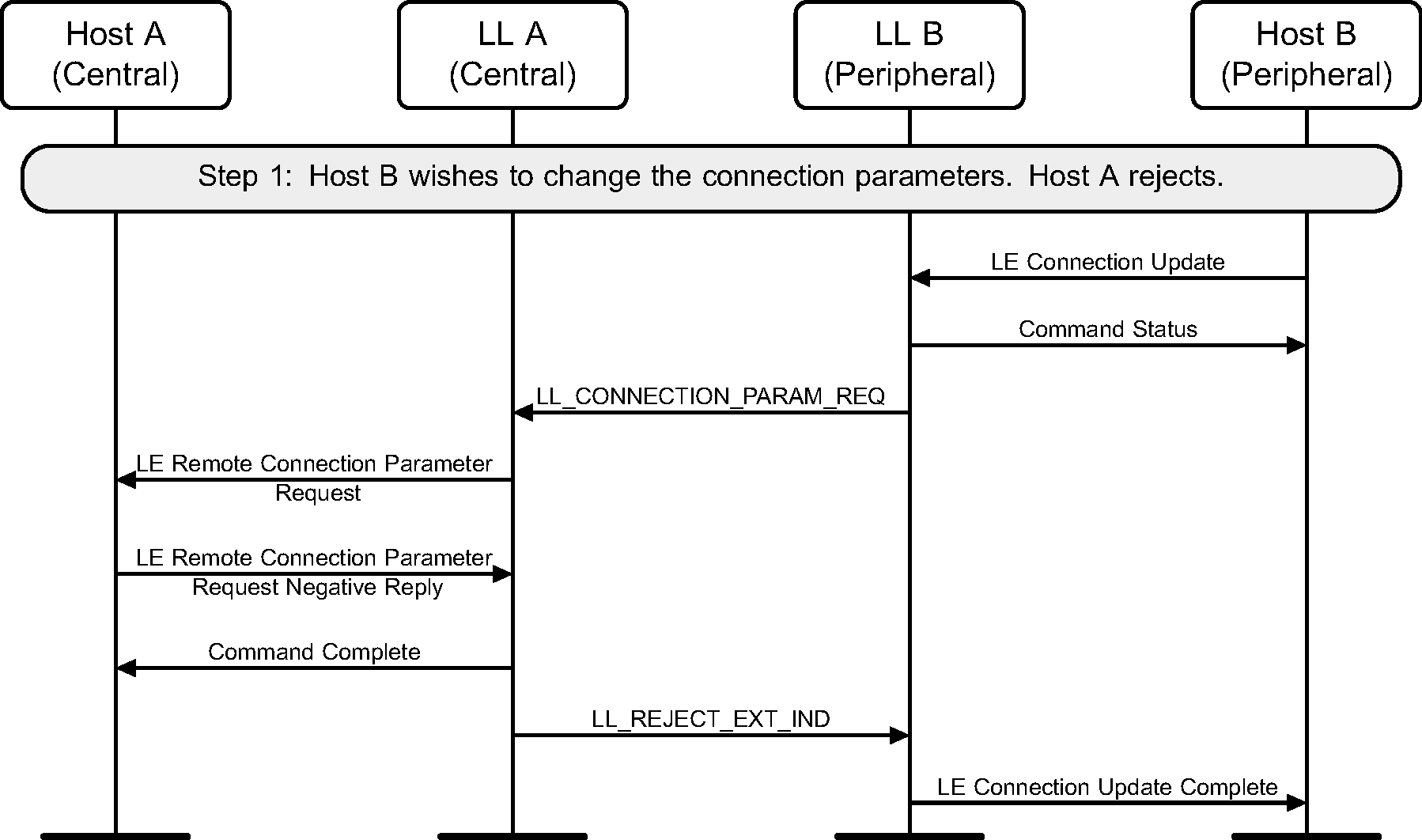

Peripheral-initiated Connection Parameters Request procedure – Peripheral requests a change in anchor points, Central rejects
Figure 6.19: Peripheral-initiated Connection Parameters Request procedure – Peripheral requests a change in anchor points, Central rejects


Peripheral-initiated Connection Parameters Request procedure – Peripheral requests change in LE connection parameters, Central’s Host accepts
Figure 6.20: Peripheral-initiated Connection Parameters Request procedure – Peripheral requests change in LE connection parameters, Central’s Host accepts


Peripheral-initiated Connection Parameters Request procedure – Peripheral requests change in LE connection parameters, Central’s Host rejects
Figure 6.21: Peripheral-initiated Connection Parameters Request procedure – Peripheral requests change in LE connection parameters, Central’s Host rejects


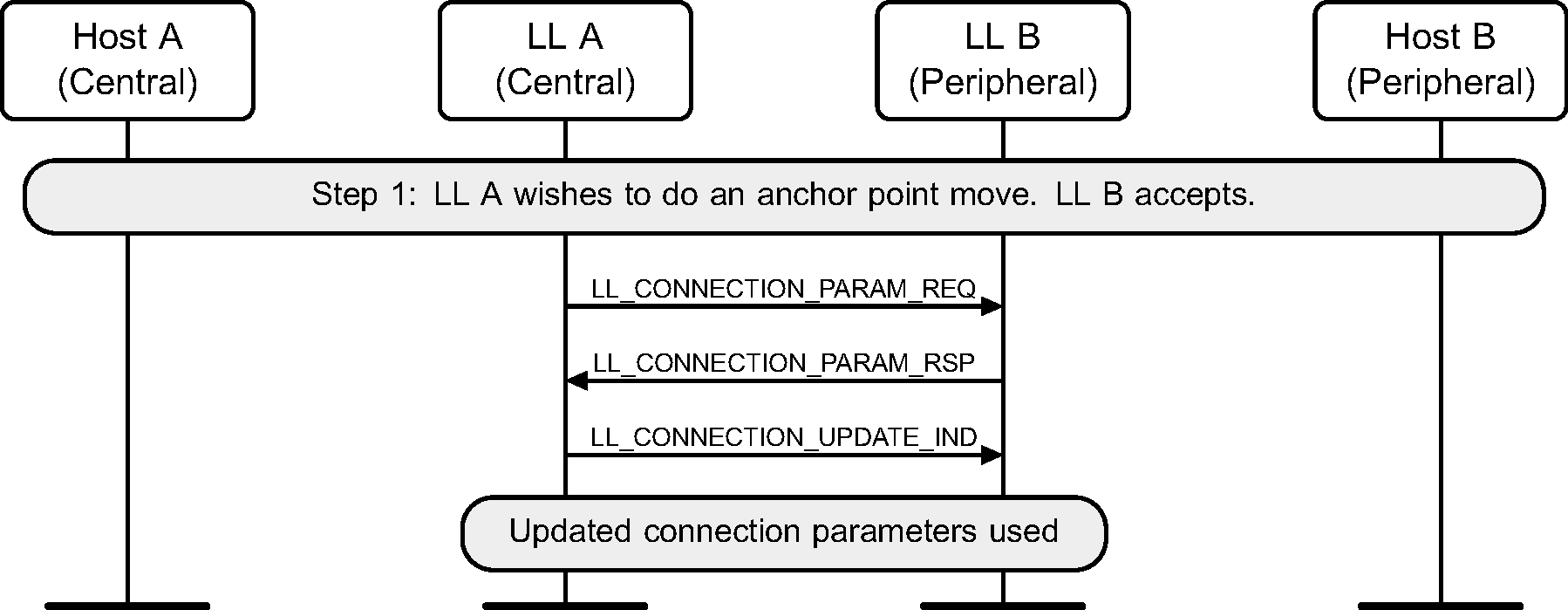

Central-initiated Connection Parameters Request procedure – Central requests a change in anchor points, Peripheral accepts
Figure 6.22: Central-initiated Connection Parameters Request procedure – Central requests a change in anchor points, Peripheral accepts


Central-initiated Connection Parameters Request procedure – Central requests a change in anchor points, Peripheral rejects
Figure 6.23: Central-initiated Connection Parameters Request procedure – Central requests a change in anchor points, Peripheral rejects


Central-initiated Connection Parameters Request procedure – Central requests change in LE connection parameters, Peripheral’s Host accepts
Figure 6.24: Central-initiated Connection Parameters Request procedure – Central requests change in LE connection parameters, Peripheral’s Host accepts


Central-initiated Connection Parameters Request procedure – Central requests change in LE connection parameters, Peripheral’s Host rejects
Figure 6.25: Central-initiated Connection Parameters Request procedure – Central requests change in LE connection parameters, Peripheral’s Host rejects


6.13. LE Ping

A Host may use the HCI_Write_Authenticated_Payload_Timeout command to change the maximum interval between packets containing a valid MIC that the Link Layer will enforce when encryption is used.

Set LE authenticated payload timeout

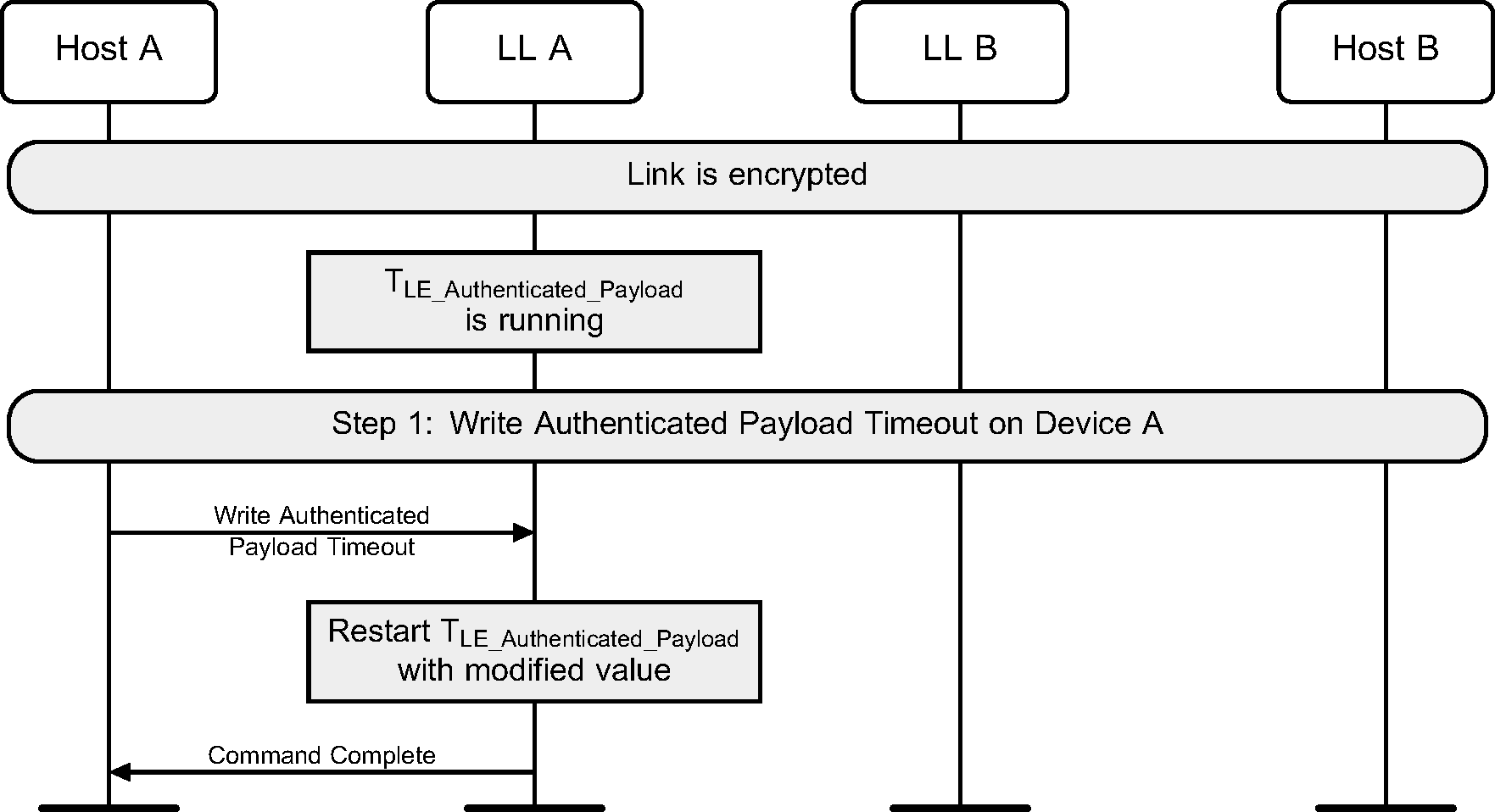

Figure 6.26: Set LE authenticated payload timeout


Either Link Layer can authenticate the remote device using the LE Ping procedure even if the remote device does not support the LE Ping feature. This procedure can also be used for soliciting a packet from the remote device containing a valid MIC. LL A may be a Central or a Peripheral.

Successful LE Ping
Figure 6.27: Successful LE Ping

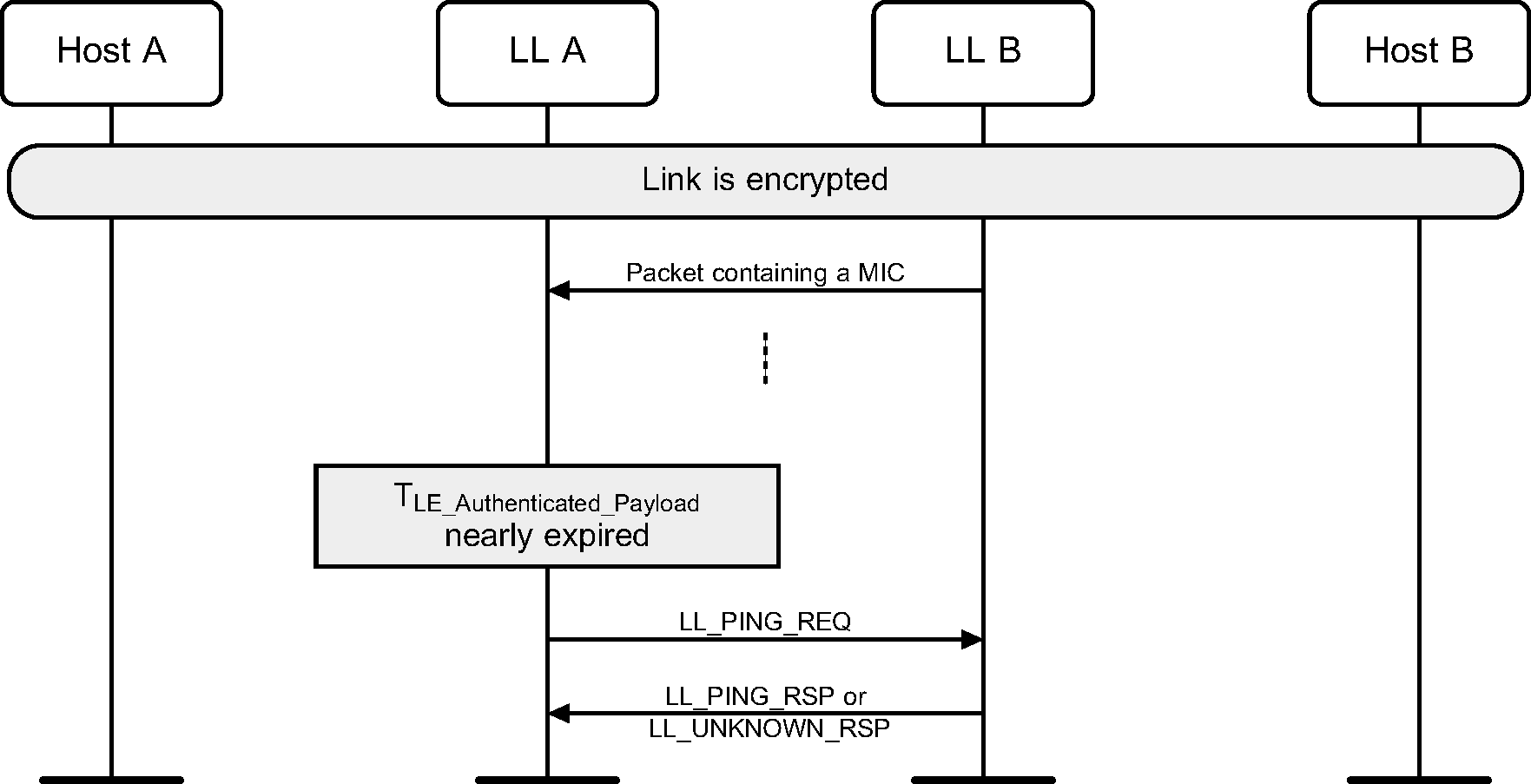

When a packet with a valid MIC has not been received within the LE Authenticated Payload Timeout, the Host is notified that the timer has expired.

Unsuccessful LE Ping
Figure 6.28: Unsuccessful LE Ping


The TLE_Authenticated_Payload Timer gets reset when the Host sets the Authenticated Payload Timeout.

TLE_Authenticated_Payload Timer reset
Figure 6.29: TLE_Authenticated_Payload Timer reset


6.14. Data length update

Once a connection has been created, the Host may suggest maximum transmission packet size and maximum packet transmission time to be used for the connection. This may be done on either the Central or the Peripheral.

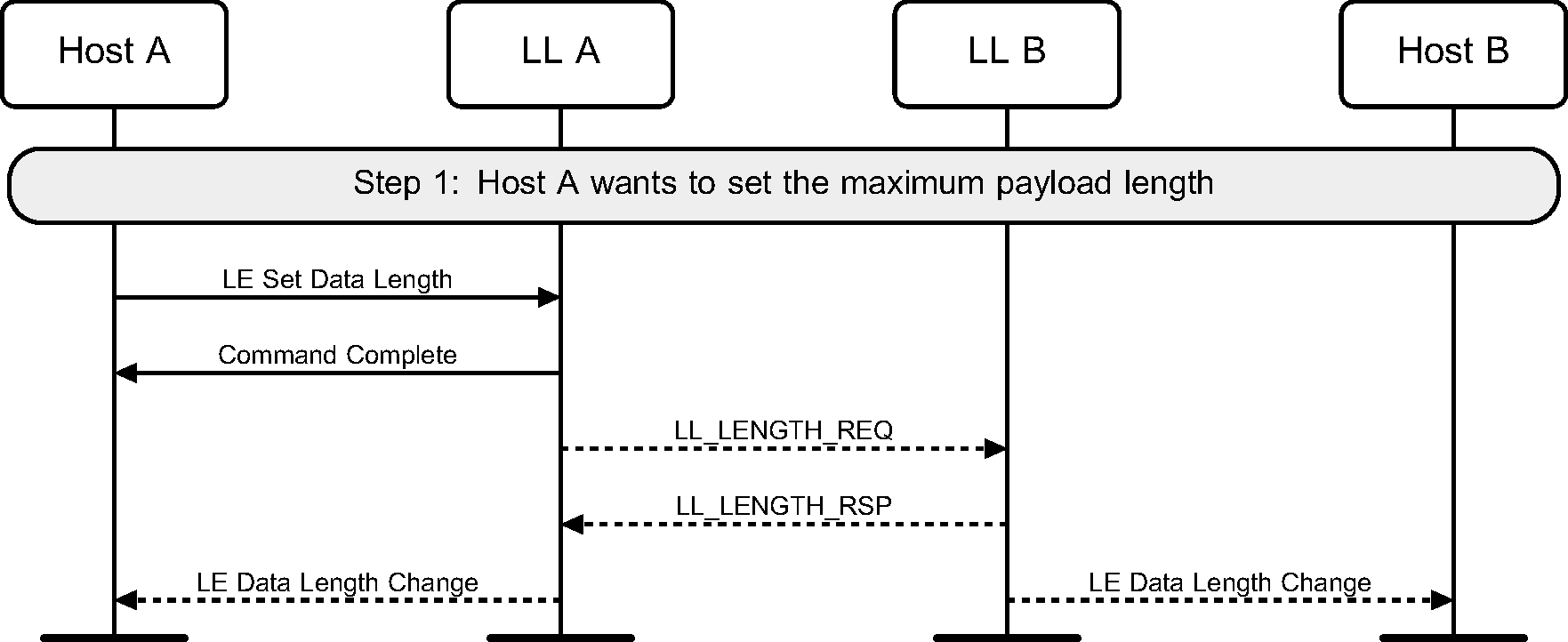

Data length update
Figure 6.30: Data length update


6.15. PHY update

The Central or Peripheral of the connection may request a change in the PHY using a Link Layer control procedure (see Figure 6.31 to Figure 6.39).

The sequence of events shown in Figure 6.33 and Figure 6.36 can only happen before feature exchange and can only happen once per connection, because a Link Layer must not use a procedure that it knows the peer does not support as required by [Vol 6] Part B, Section 4.6.

Central-initiated PHY Update procedure – Central requests a change of PHY, PHY changed in at least one direction

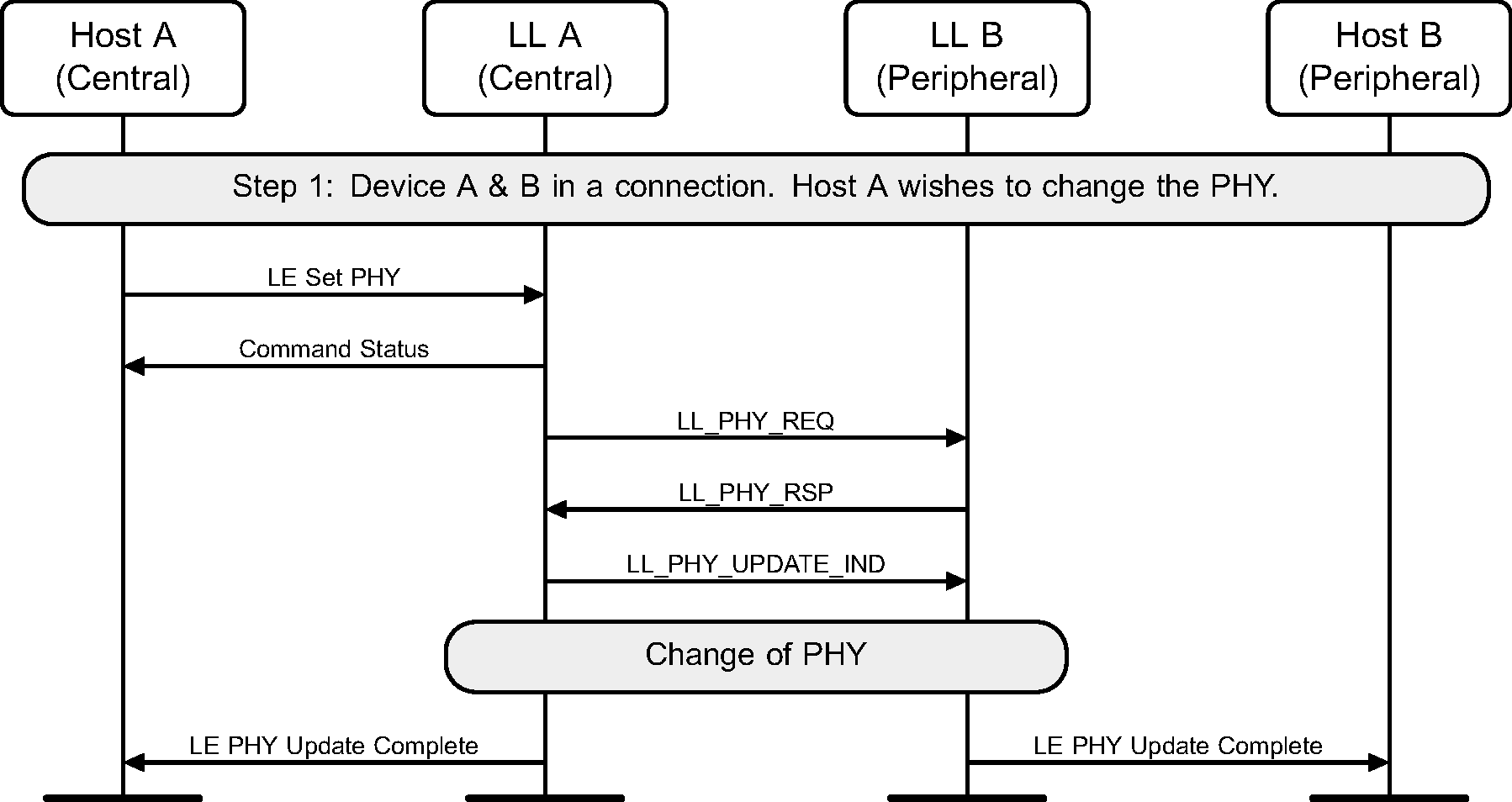

Figure 6.31: Central-initiated PHY Update procedure – Central requests a change of PHY, PHY changed in at least one direction

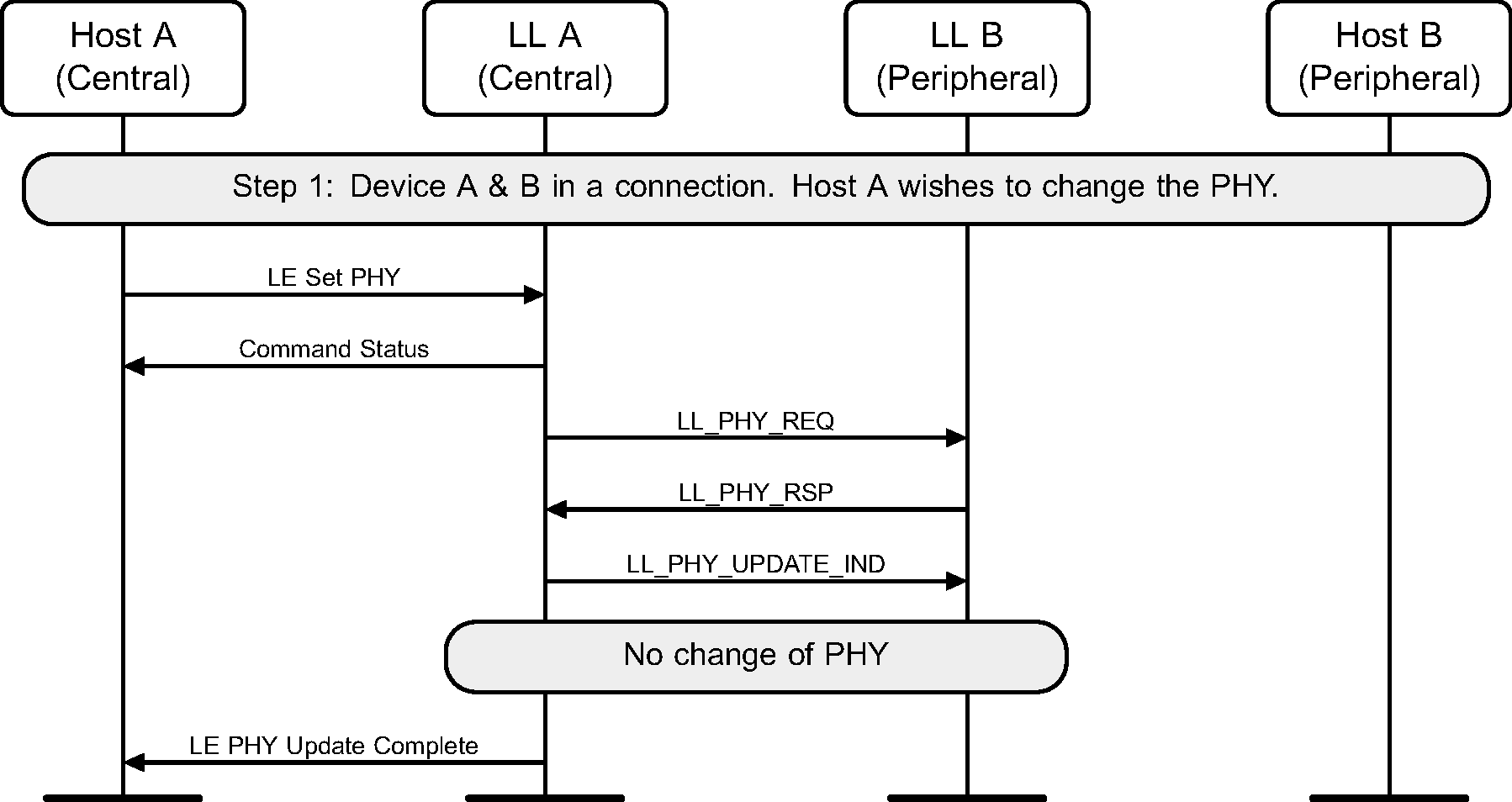

Central-initiated PHY Update procedure – PHY not changed (either because Peripheral doesn't specify PHYs that the Central prefers, or because the Central concludes that the current PHYs are still best)
Figure 6.32: Central-initiated PHY Update procedure – PHY not changed (either because Peripheral doesn't specify PHYs that the Central prefers, or because the Central concludes that the current PHYs are still best)


Central-initiated PHY Update procedure – Central requests a change of PHY, Peripheral does not support the feature
Figure 6.33: Central-initiated PHY Update procedure – Central requests a change of PHY, Peripheral does not support the feature


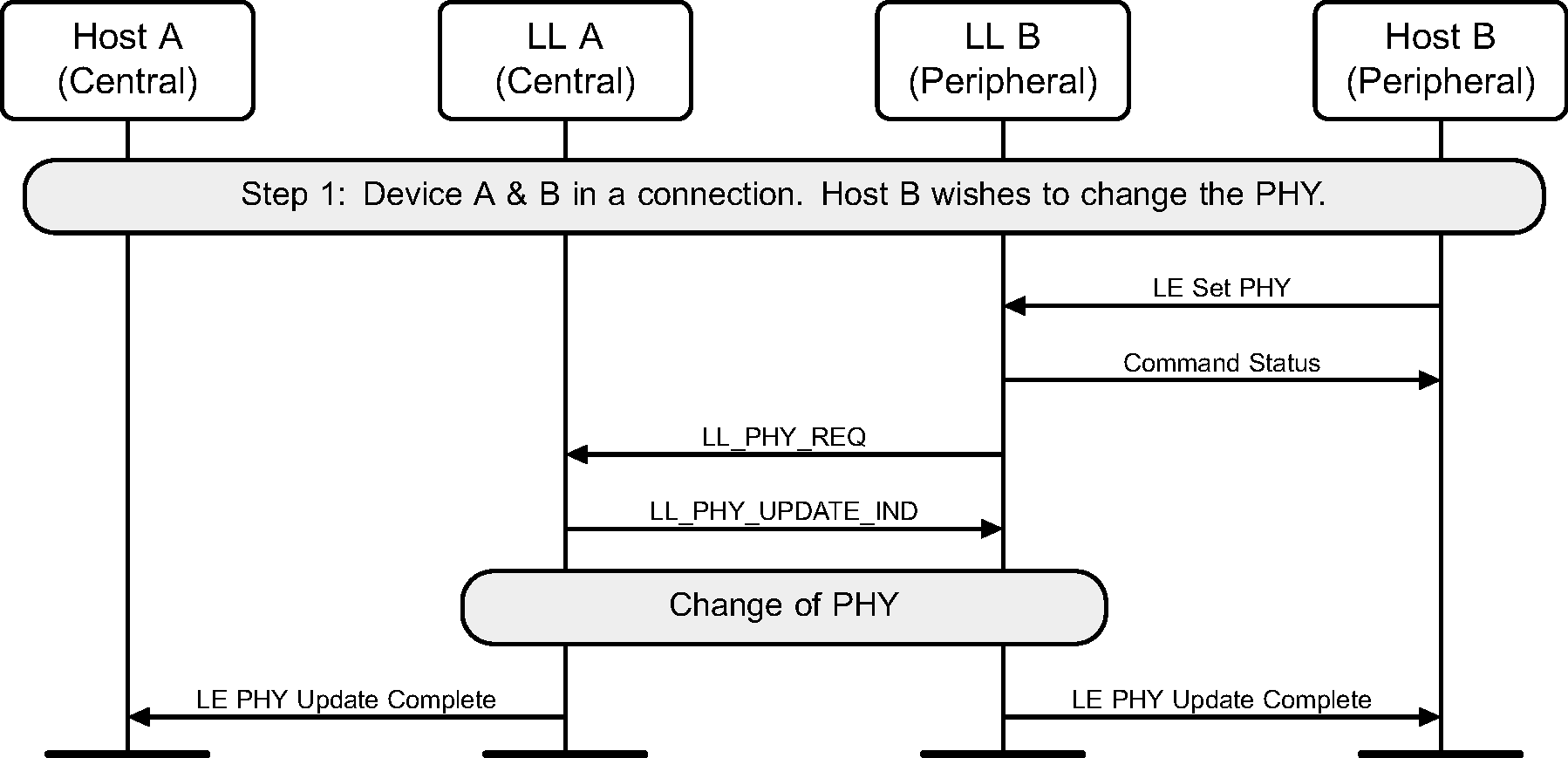

Peripheral-initiated PHY Update procedure – Peripheral requests a change of PHY, PHY changed in at least one direction
Figure 6.34: Peripheral-initiated PHY Update procedure – Peripheral requests a change of PHY, PHY changed in at least one direction


Peripheral-initiated PHY Update procedure – PHY not changed (either because Peripheral doesn't specify PHYs that the Central prefers, or because the Central concludes that the current PHYs are still best)
Figure 6.35: Peripheral-initiated PHY Update procedure – PHY not changed (either because Peripheral doesn't specify PHYs that the Central prefers, or because the Central concludes that the current PHYs are still best)


Peripheral-initiated PHY Update procedure – Peripheral requests a change of PHY, Central does not support the feature
Figure 6.36: Peripheral-initiated PHY Update procedure – Peripheral requests a change of PHY, Central does not support the feature

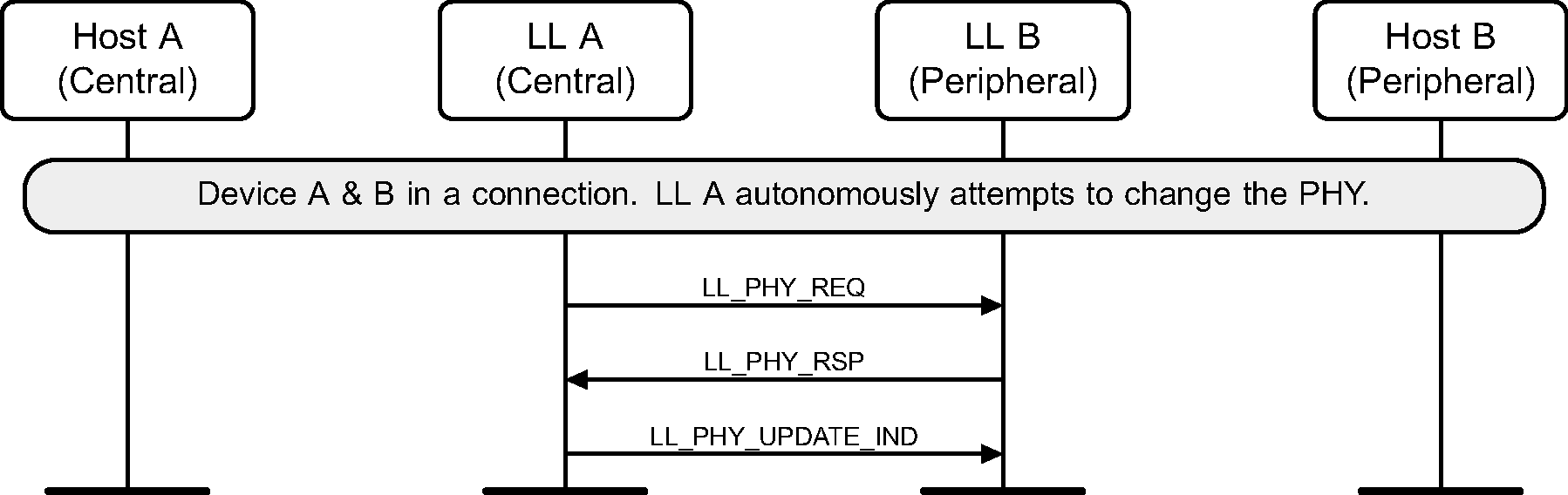

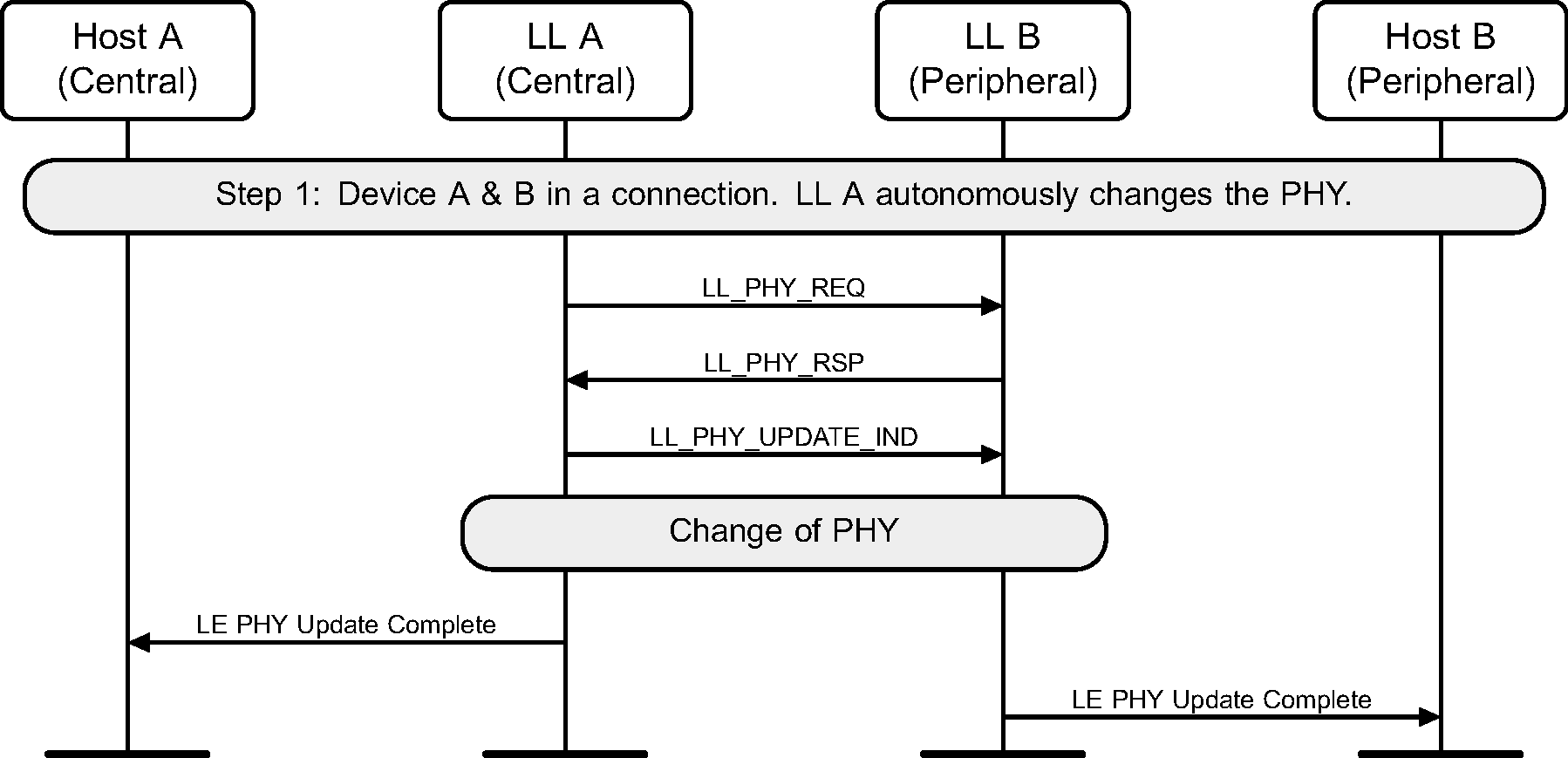

Autonomous Central-initiated PHY Update procedure – Central requests a change of PHY, Peripheral accepts, PHY changed in at least one direction
Figure 6.37: Autonomous Central-initiated PHY Update procedure – Central requests a change of PHY, Peripheral accepts, PHY changed in at least one direction


Autonomous Central-initiated PHY Update procedure – Central requests a change of PHY, PHY not changed (either because Peripheral doesn't specify PHYs that the Central prefers, or because the Central concludes that the current PHYs are still best)
Figure 6.38: Autonomous Central-initiated PHY Update procedure – Central requests a change of PHY, PHY not changed (either because Peripheral doesn't specify PHYs that the Central prefers, or because the Central concludes that the current PHYs are still best)


Central and Peripheral crossover PHY Update procedure – Central and Peripheral request a change of PHY concurrently

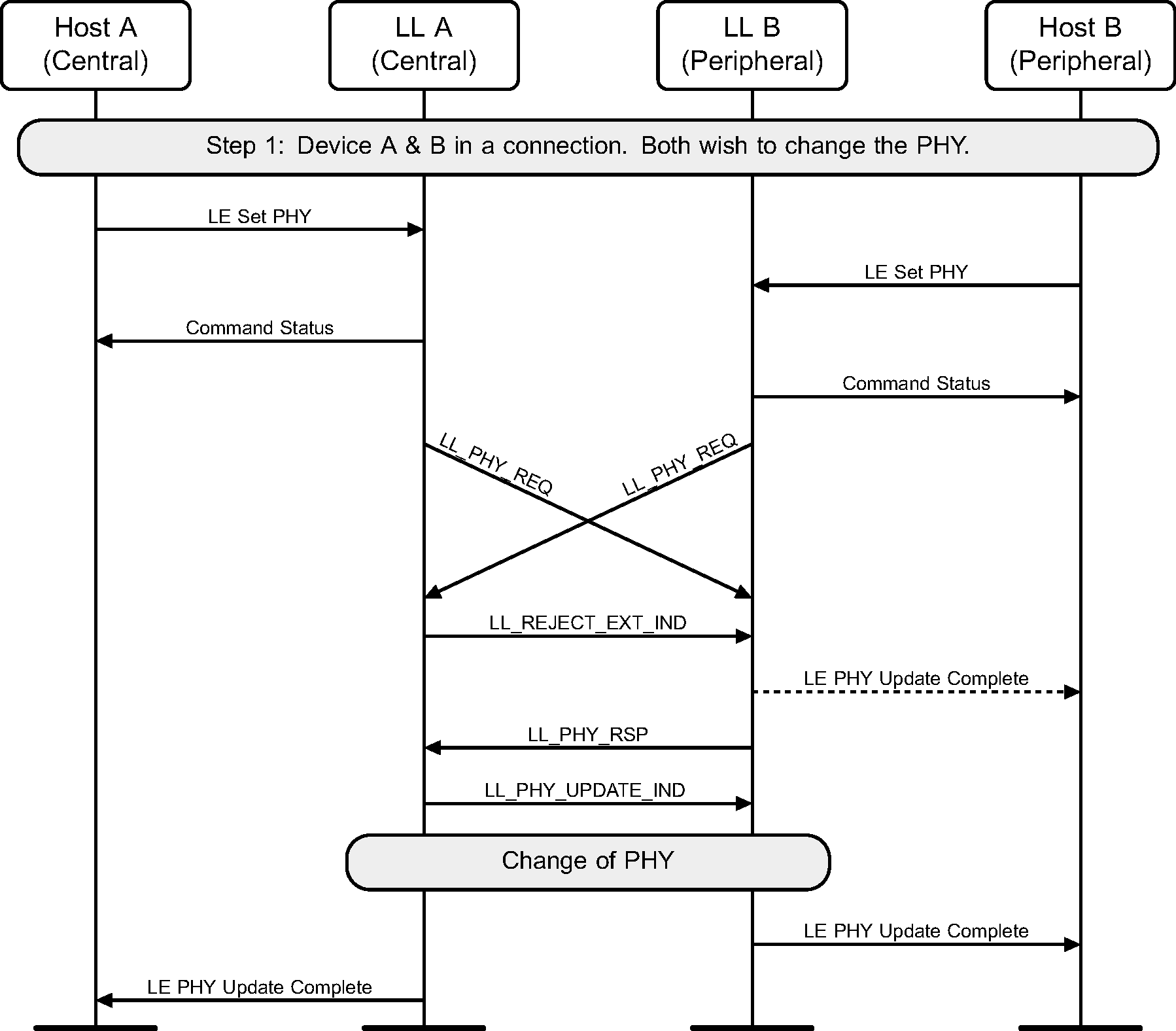

Figure 6.39: Central and Peripheral crossover PHY Update procedure – Central and Peripheral request a change of PHY concurrently


6.16. Minimum number of used channels request

Where a Peripheral supports the Minimum Number of Used Channels procedure, it can request that a certain minimum number of channels be used on the indicated PHY. The example shows a successful request, resulting in a channel map update with the requested minimum number of channels used for the connection.

Requesting minimum number of used channels
Figure 6.40: Requesting minimum number of used channels


6.17. LL procedure collision

The Link Layers of both the Central and Peripheral may initiate the same LL procedure at the same time.

LL procedure collision
Figure 6.41: LL procedure collision


6.18. Constant Tone Extension Request

The Central or Peripheral of the connection may request the remote device to send an LL_CTE_RSP PDU with a Constant Tone Extension (see Figure 6.42 to Figure 6.44).

The sequence of events shown in figure 6.40 can only happen before feature exchange and can only happen once per connection, because a Link Layer must not use a procedure that it knows the peer does not support as required by [Vol 6] Part B, Section 4.6.

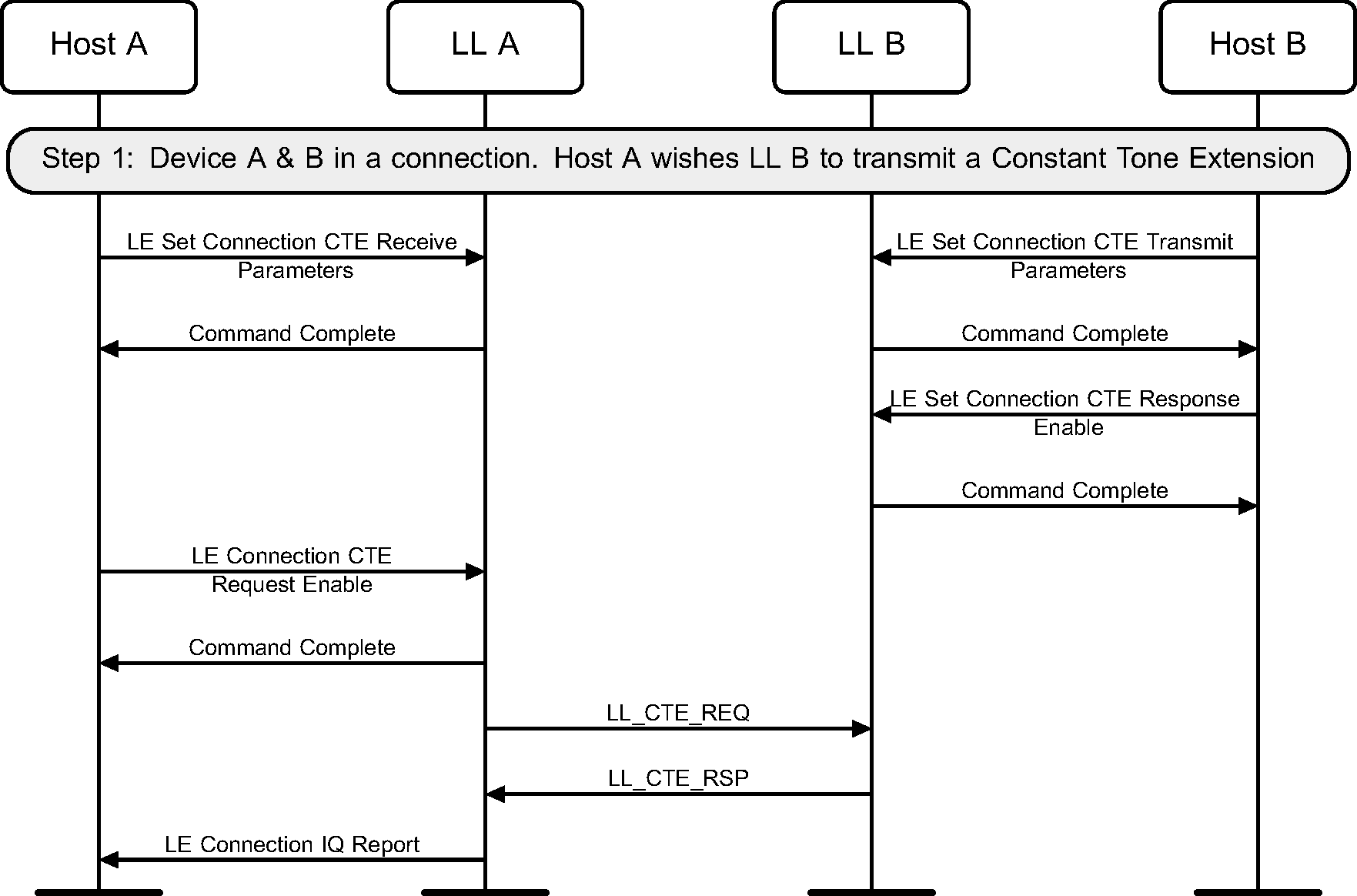

Central or Peripheral-initiated Constant Tone Extension Request procedure – remote device responds successfully
Figure 6.42: Central or Peripheral-initiated Constant Tone Extension Request procedure – remote device responds successfully


Central or Peripheral-initiated Constant Tone Extension Request procedure – remote device does not support the feature
Figure 6.43: Central or Peripheral-initiated Constant Tone Extension Request procedure – remote device does not support the feature

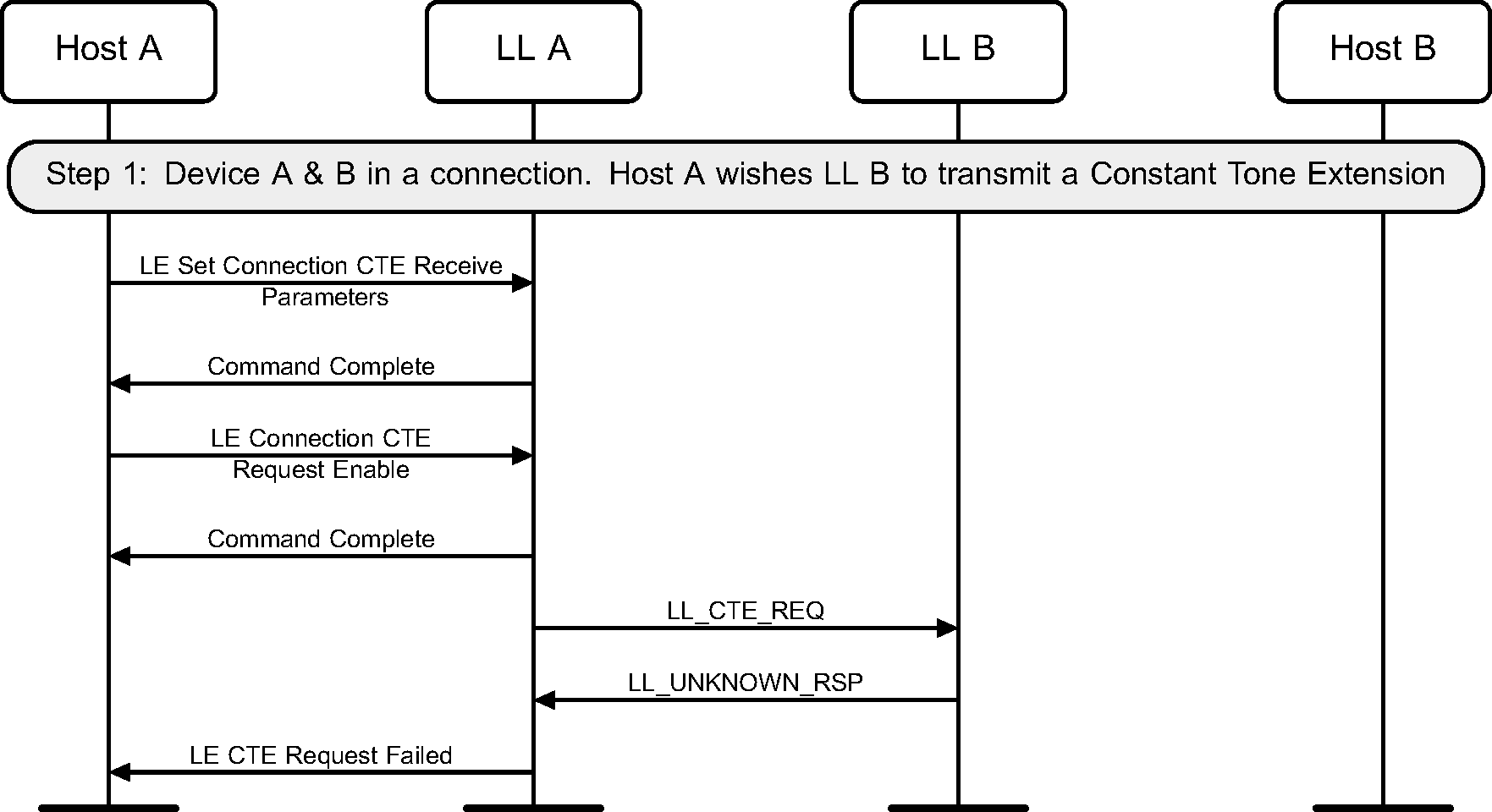

Central or Peripheral-initiated Constant Tone Extension Request procedure – remote device rejects
Figure 6.44: Central or Peripheral-initiated Constant Tone Extension Request procedure – remote device rejects


6.19. Connected Isochronous Group Setup

A Central sets up a CIG with parameters for one or more CISes, then establishes a CIS with a Peripheral (see Figure 6.45).

Device A establishes a CIS with a Peripheral

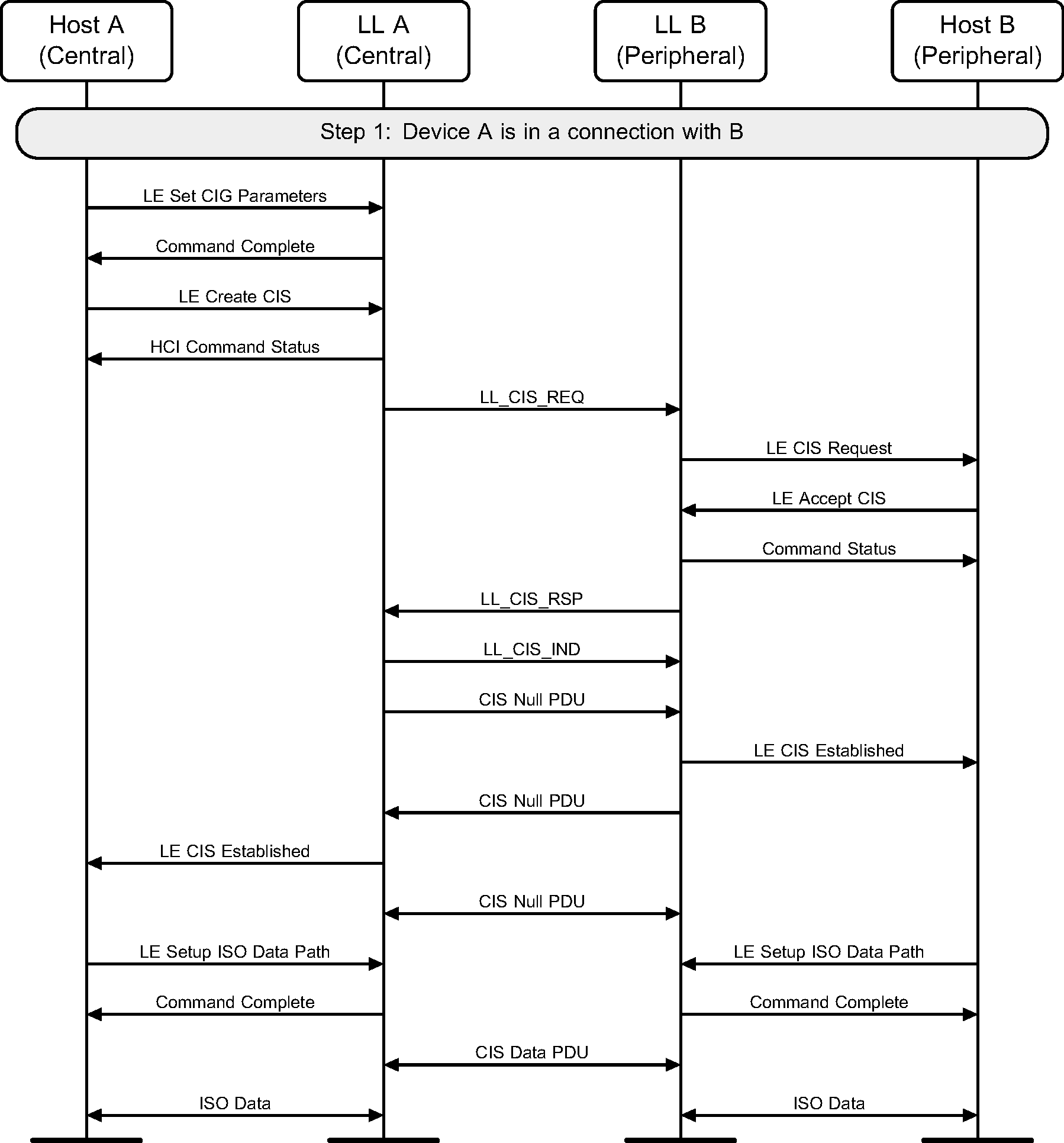

Figure 6.45: Device A establishes a CIS with a Peripheral


A Central sets up CIG parameters and establishes a CIS with two Peripherals (see Figure 6.46).

Device A establishes CISes with two Peripherals
Figure 6.46: Device A establishes CISes with two Peripherals


6.20. Host Rejects Connected Isochronous Stream

The Peripheral’s Host rejects the request to establish a CIS with the Central (see Figure 6.47).

The Host in Device B rejects a CIS from Device A
Figure 6.47: The Host in Device B rejects a CIS from Device A

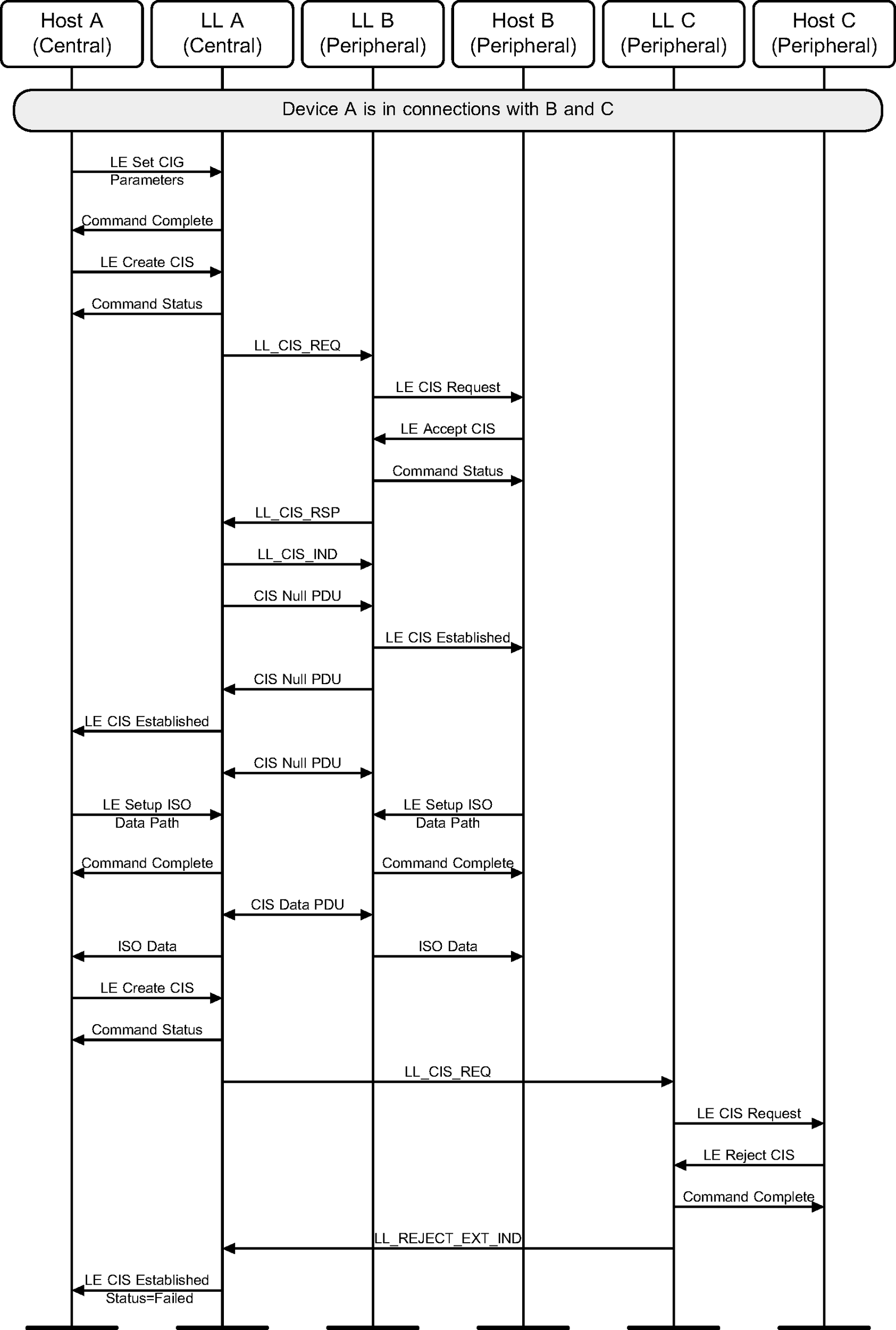

While setting up CISes with two Peripherals, the Host of one of the Peripherals rejects the request to establish a CIS with the Central (see Figure 6.48).

The Host in Device C rejects a CIS from Device A
Figure 6.48: The Host in Device C rejects a CIS from Device A


6.21. Link Layer Rejects Connected Isochronous Stream

The Link Layer of the Peripheral rejects the request to establish a CIS with a Central (see Figure 6.49).

The Link Layer in Device B rejects a CIS request from Device A
Figure 6.49: The Link Layer in Device B rejects a CIS request from Device A


While setting up CISes with two Peripherals, the Link Layer of one of the Peripherals rejects the request to establish a CIS with the Central (see Figure 6.50).

The Link Layer in Device C rejects a CIS from Device A
Figure 6.50: The Link Layer in Device C rejects a CIS from Device A


6.22. Link Layer Rejects Connected Isochronous Stream

The Link Layer of the Central rejects the request to create a CIS (see Figure 6.51).

Link Layer in Device A rejects a request to create a CIS
Figure 6.51: Link Layer in Device A rejects a request to create a CIS


6.23. Host A Terminates Connected Isochronous Stream

The Host of the Central terminates a Connected Isochronous Stream (see Figure 6.52). Either A or B can be the Central.

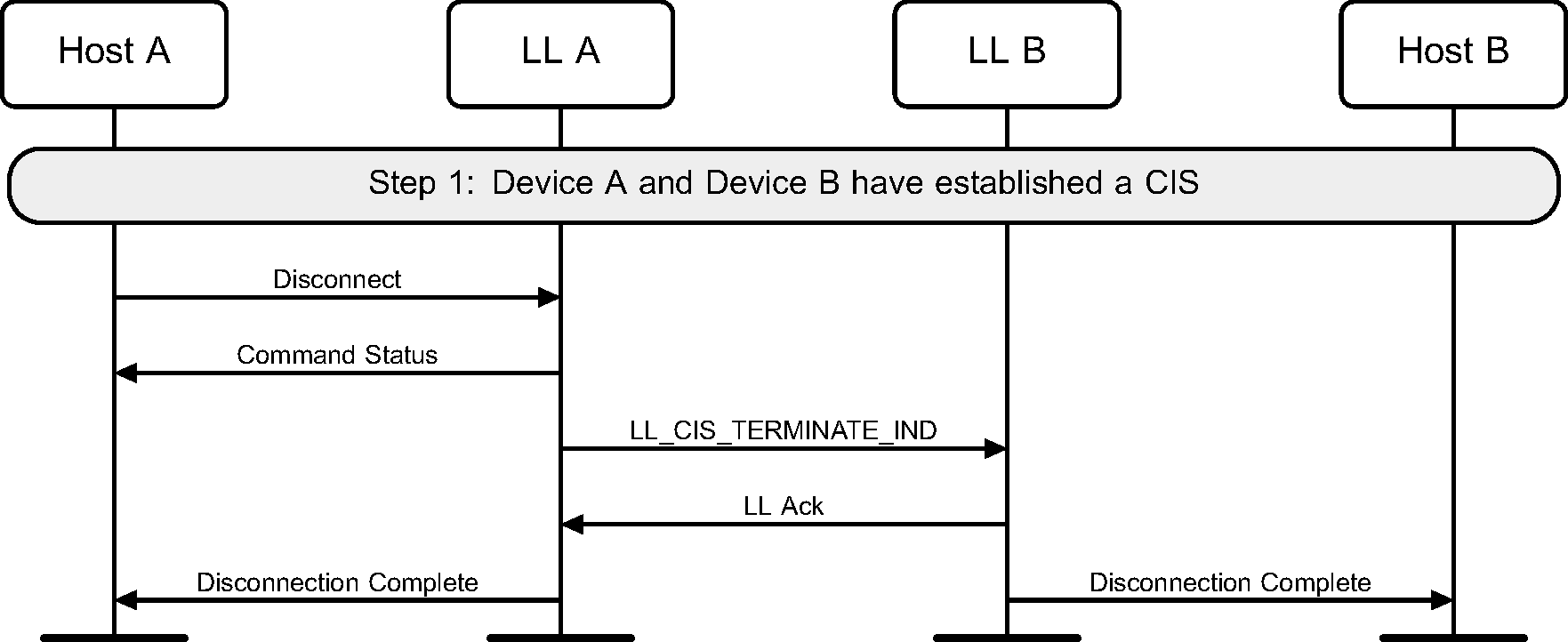

Device A terminates an established CIS
Figure 6.52: Device A terminates an established CIS


The Host of device A, which is the Central, terminates a Connected Isochronous Stream either before the Link Layer starts creating that CIS (see Figure 6.53) or during the creation process (see Figure 6.54).

Device A terminates a CIS before the Link Layer starts creating it
Figure 6.53: Device A terminates a CIS before the Link Layer starts creating it


Device A terminates a CIS during the creation process

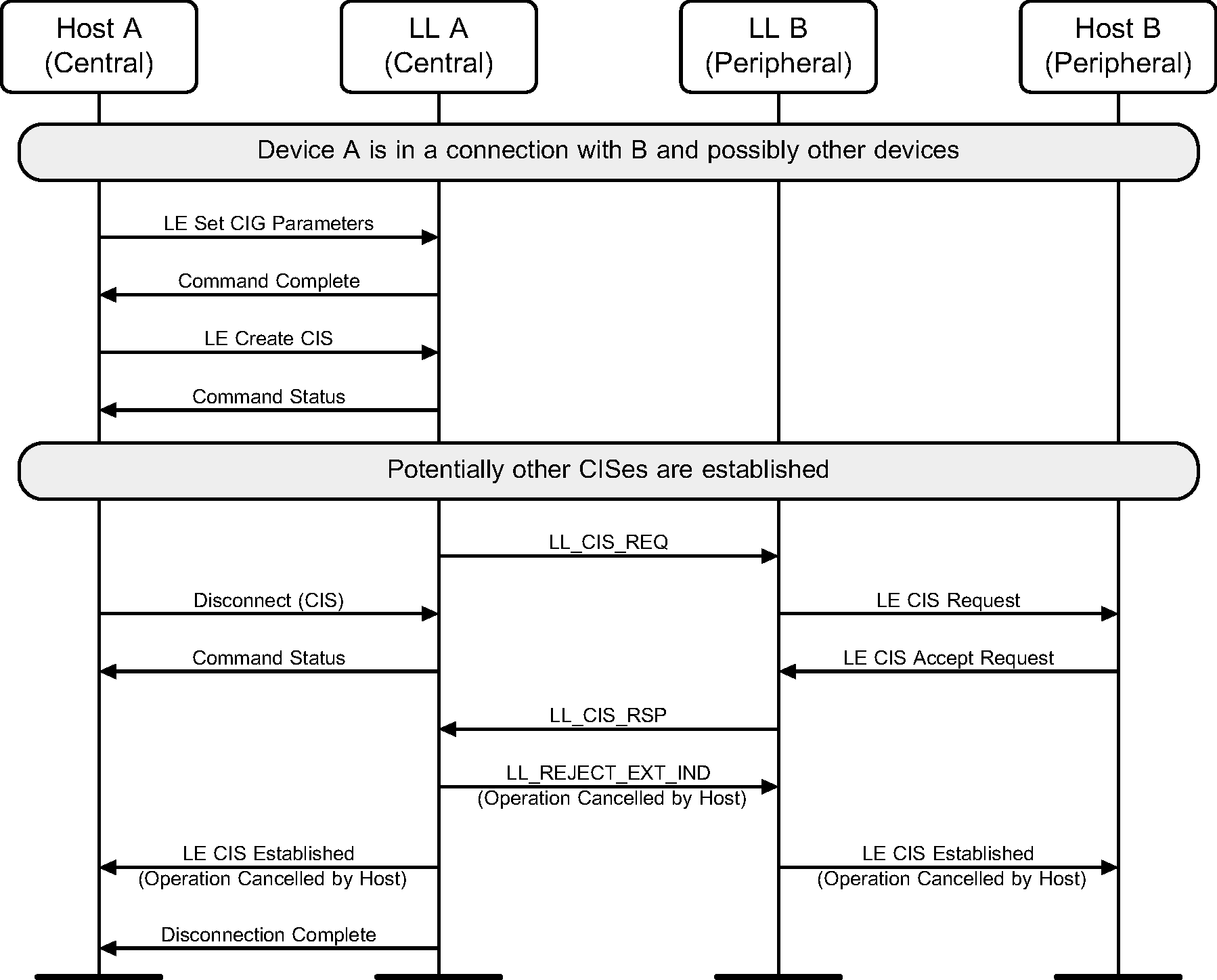

Figure 6.54: Device A terminates a CIS during the creation process


6.24. ACL disconnected

The disconnection of the ACL causes the disconnections of CISes (see Figure 6.55).

ACL connection Terminated
Figure 6.55: ACL connection Terminated


6.25. Host A Removes Connected Isochronous Group

A Host of the Central terminates the CIS and removes the CIG from the Link Layer (see Figure 6.56).

Device A terminates a CIS and removes a CIG
Figure 6.56: Device A terminates a CIS and removes a CIG


The Host of the Central terminates both the CISes in the CIG and removes the CIG from the Controller (see Figure 6.57).

Device A terminates both CISes and removes the CIG

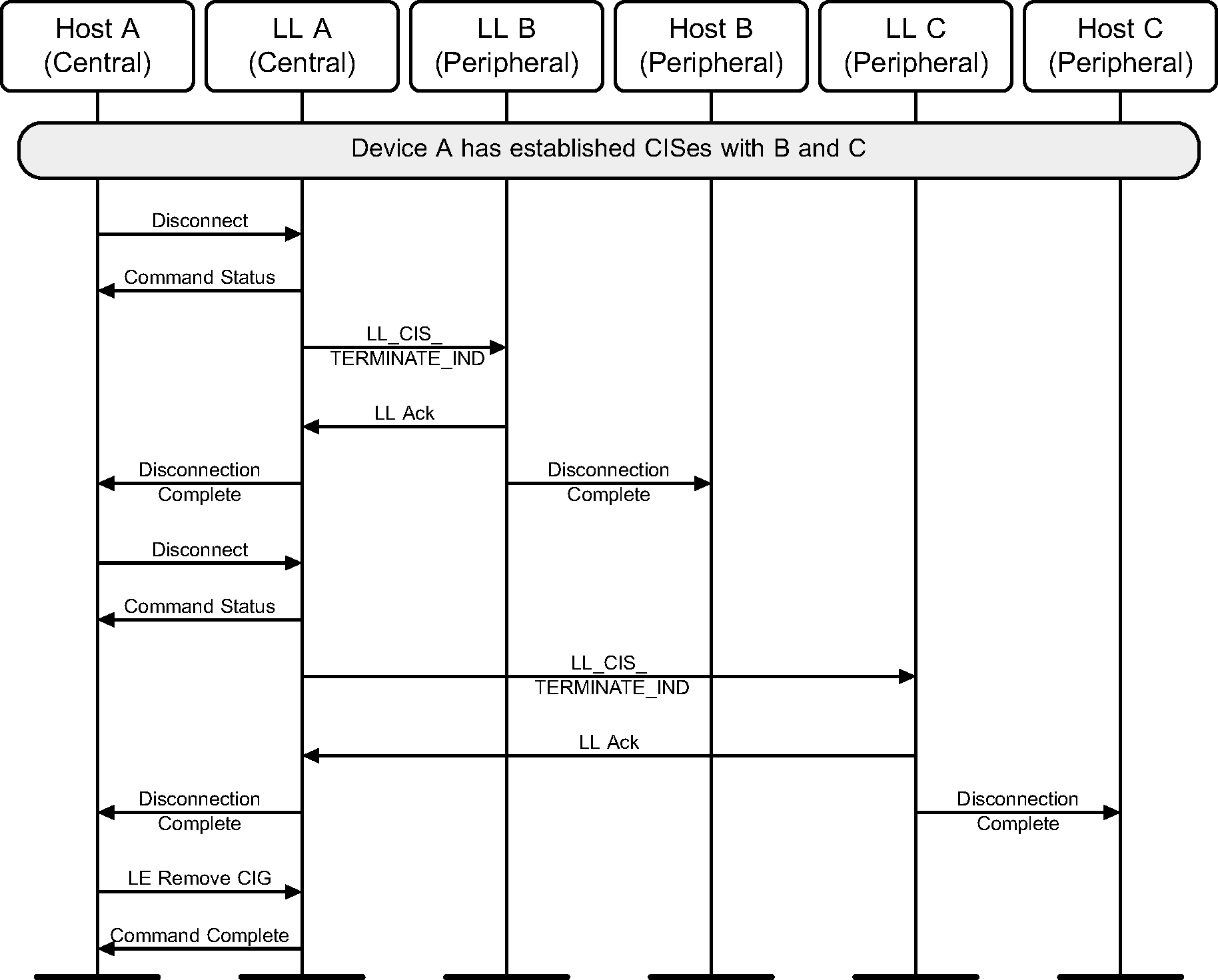

Figure 6.57: Device A terminates both CISes and removes the CIG


6.26. Request Sleep Clock Accuracy

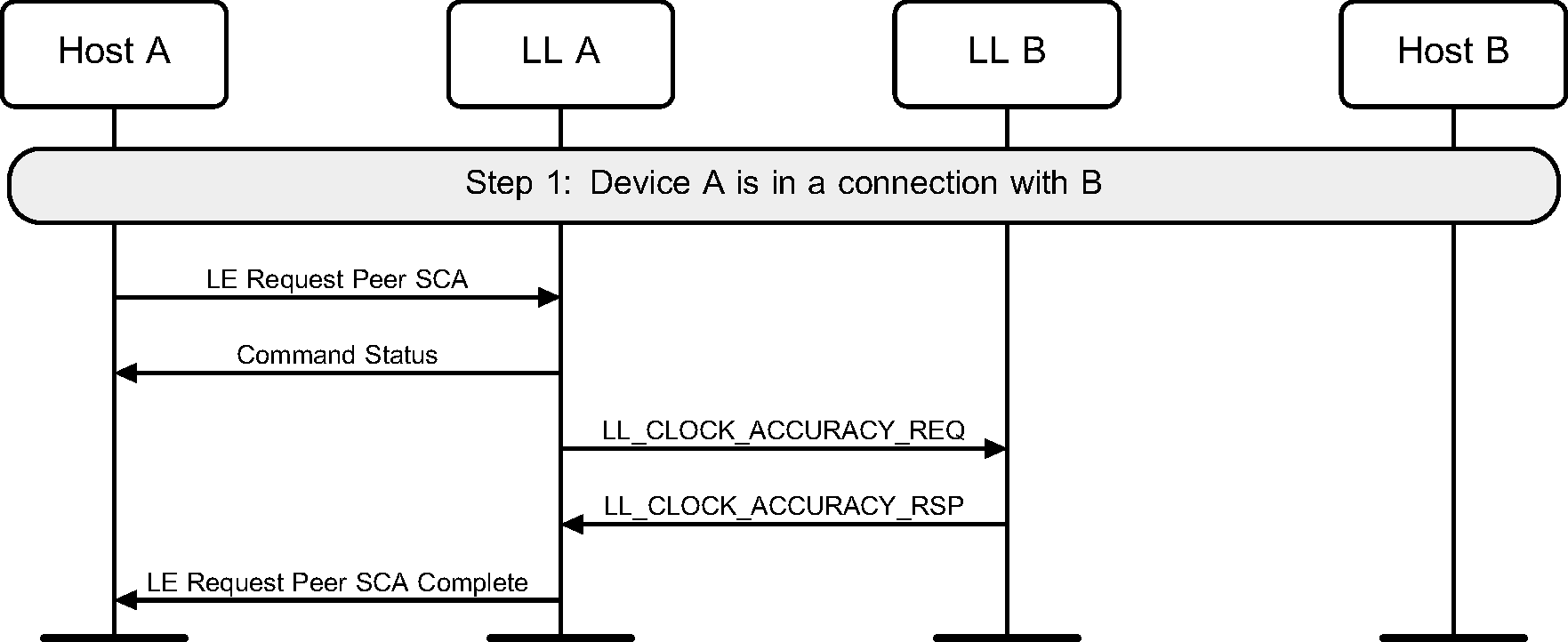

Either device can initiate a Sleep Clock Accuracy Update procedure to query the sleep clock accuracy of the peer device (see Figure 6.58).

Device A requests SCA from Device B
Figure 6.58: Device A requests SCA from Device B


6.27. Power Control

Either device can initiate a Power Control Request procedure to request the peer device to adjust its transmit power level (see Figure 6.59).

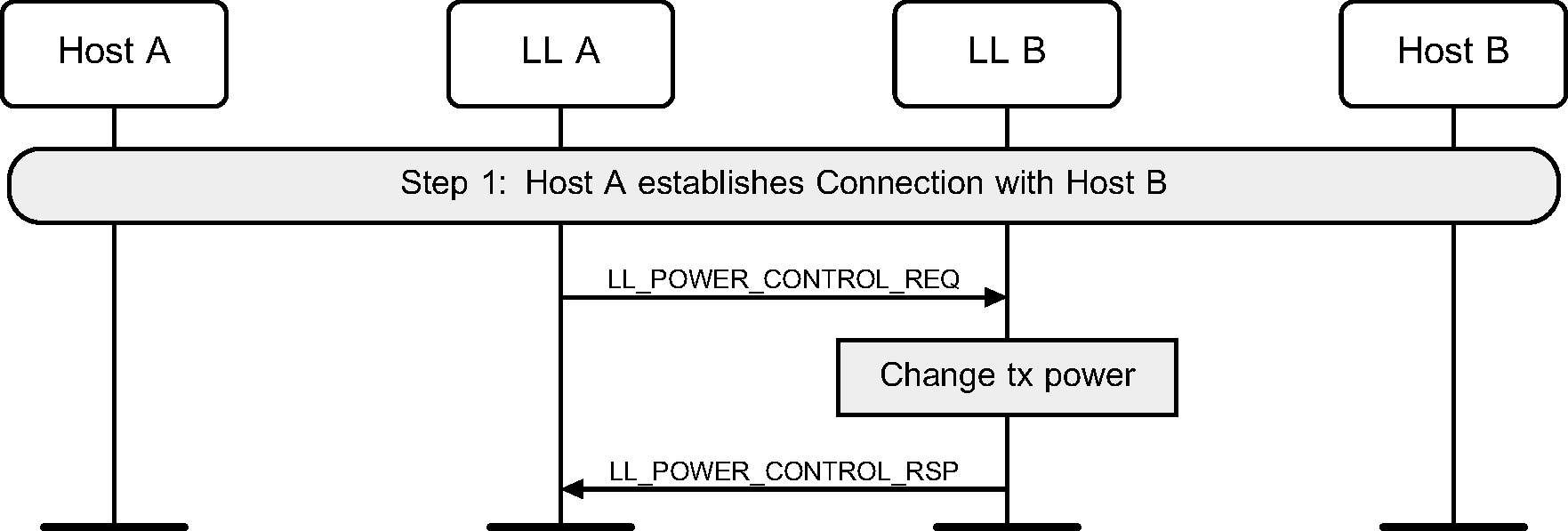

Power Control Request procedure to request remote transmit power update
Figure 6.59: Power Control Request procedure to request remote transmit power update


Either device can use the Power Control Request procedure to query the Acceptable Power Reduction (APR) value from the peer device and adjust its transmit power based on the response (see Figure 6.60).

Power Control Request procedure to query Acceptable Power Reduction (APR) and transmitter Update
Figure 6.60: Power Control Request procedure to query Acceptable Power Reduction (APR) and transmitter Update


When the Host issues a command to enable reporting of remote power level changes, the Controller may initiate a Power Control Request procedure to request the remote device to start power level management (see [Vol 6] Part B, Section 4.5.15). When the remote Controller changes its transmit power level, it sends an indication to the peer device (see Figure 6.61). If reporting of remote transmit power level changes is enabled, the Controller sends an LE Transmit Power Reporting event to the Host.

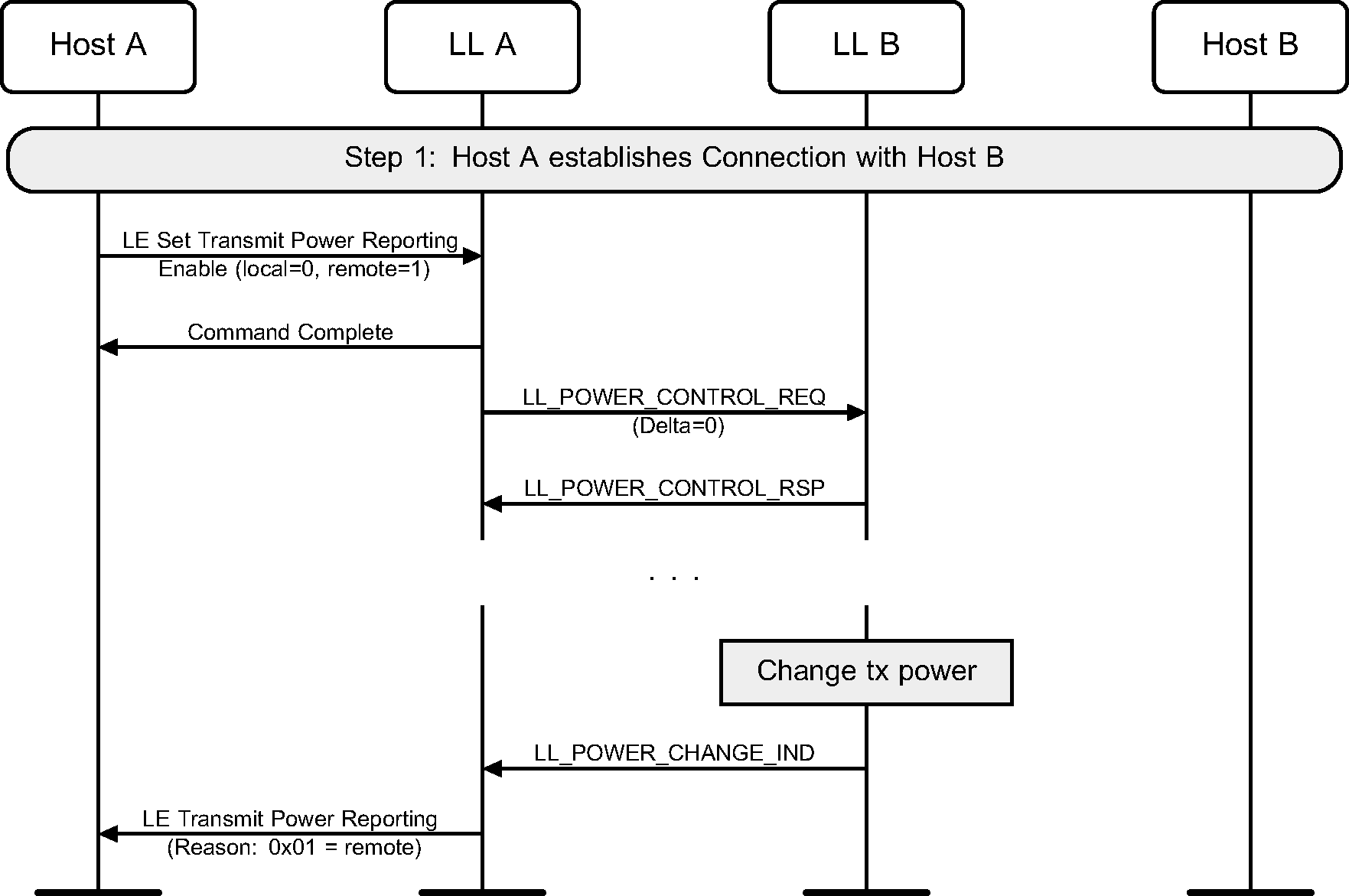

LL Power Change Indication procedure when device adjusts TX power autonomously
Figure 6.61: LL Power Change Indication procedure when device adjusts TX power autonomously

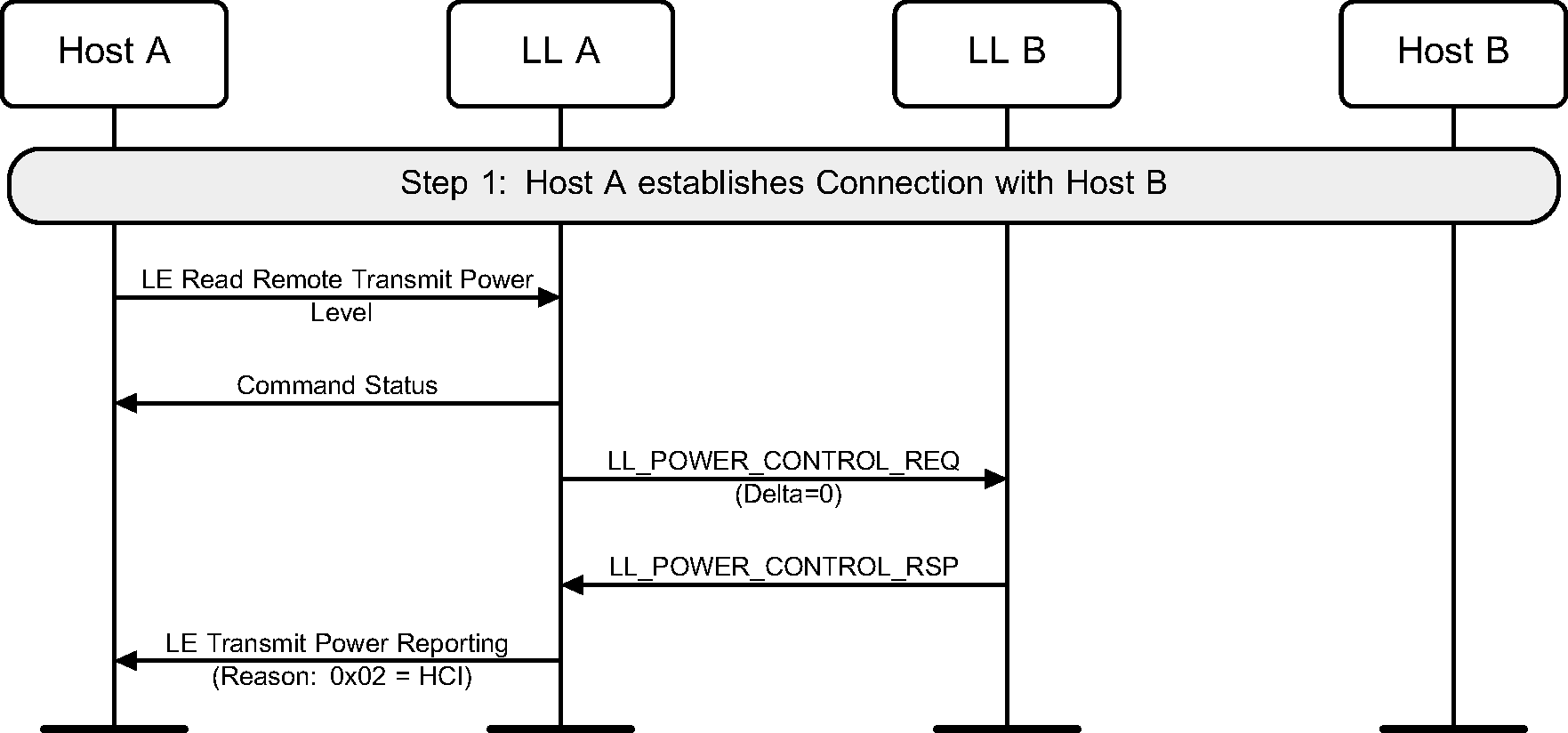

When a Host issues a command to read the transmit power level of a remote device, the Controller can initiate an LL Power Control Request procedure to query the transmit power level of the remote device (see Figure 6.62).

HCI command to read remote transmit power level
Figure 6.62: HCI command to read remote transmit power level


Before a PHY Update procedure is performed, the Link Layer may request a preferred transmit power level for the new PHY to be used by the remote device (see Figure 6.63).

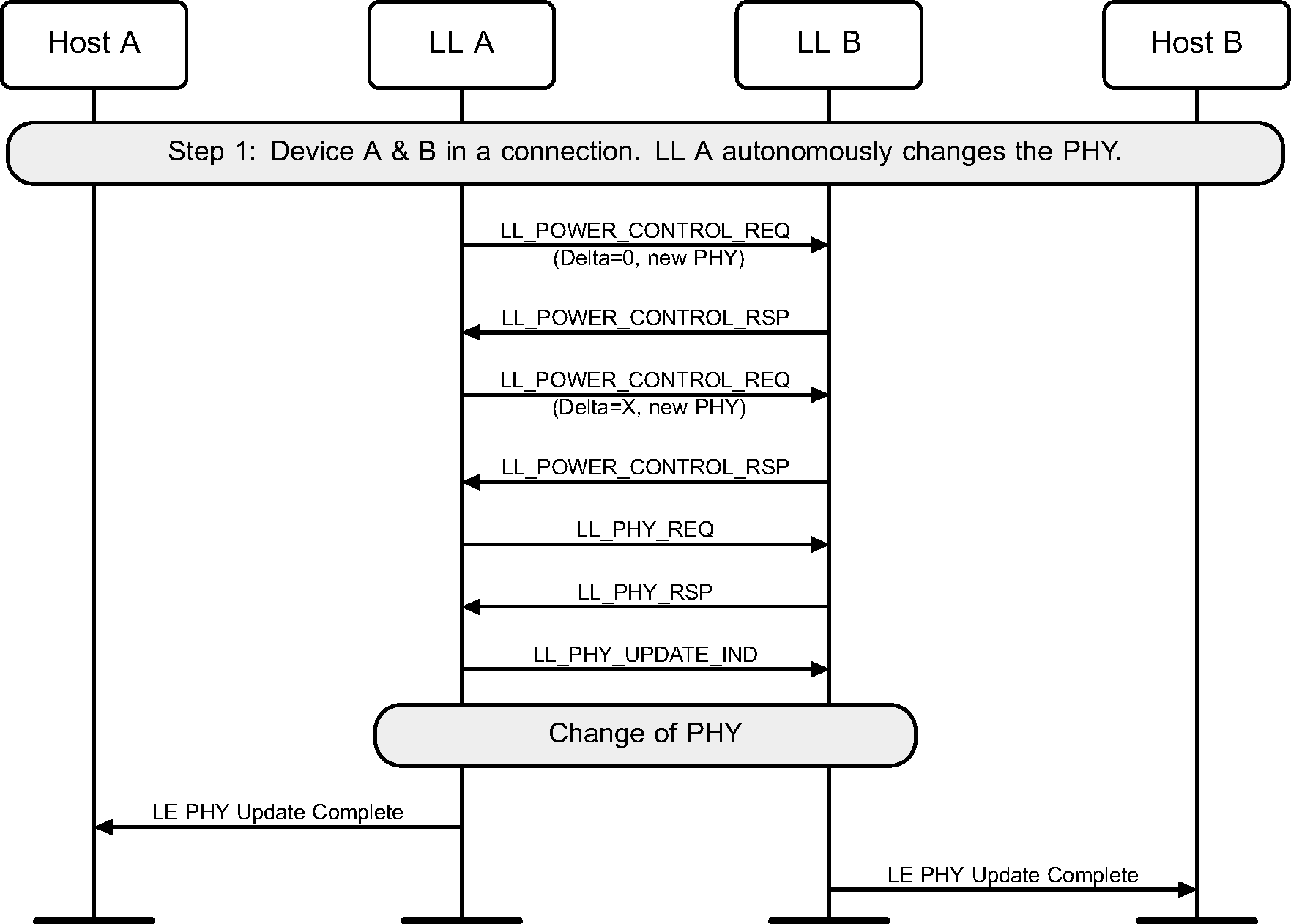

Autonomous Central-initiated PHY Update procedure with preferred transmit power level. PHY changed in both directions.
Figure 6.63: Autonomous Central-initiated PHY Update procedure with preferred transmit power level. PHY changed in both directions.


An implementation may choose to manage transmit power levels only on active PHYs and could reject a request for preferred transmit power level on the new PHY before a PHY Update procedure is performed (see Figure 6.64).

Autonomous Central-initiated PHY Update procedure with remote device maintaining only a single transmit power level. PHY changed in both directions.
Figure 6.64: Autonomous Central-initiated PHY Update procedure with remote device maintaining only a single transmit power level. PHY changed in both directions.


When a PHY Update procedure is performed to switch to the LE Coded PHY, where the local and remote devices can use both S=8 and S=2 coding, the Controller treats them as separate PHYs for the purpose of Power Control (see Figure 6.65).

Autonomous Central-initiated PHY Update procedure to change to the LE Coded PHY (S=8 and S=2). PHY changed in both directions.

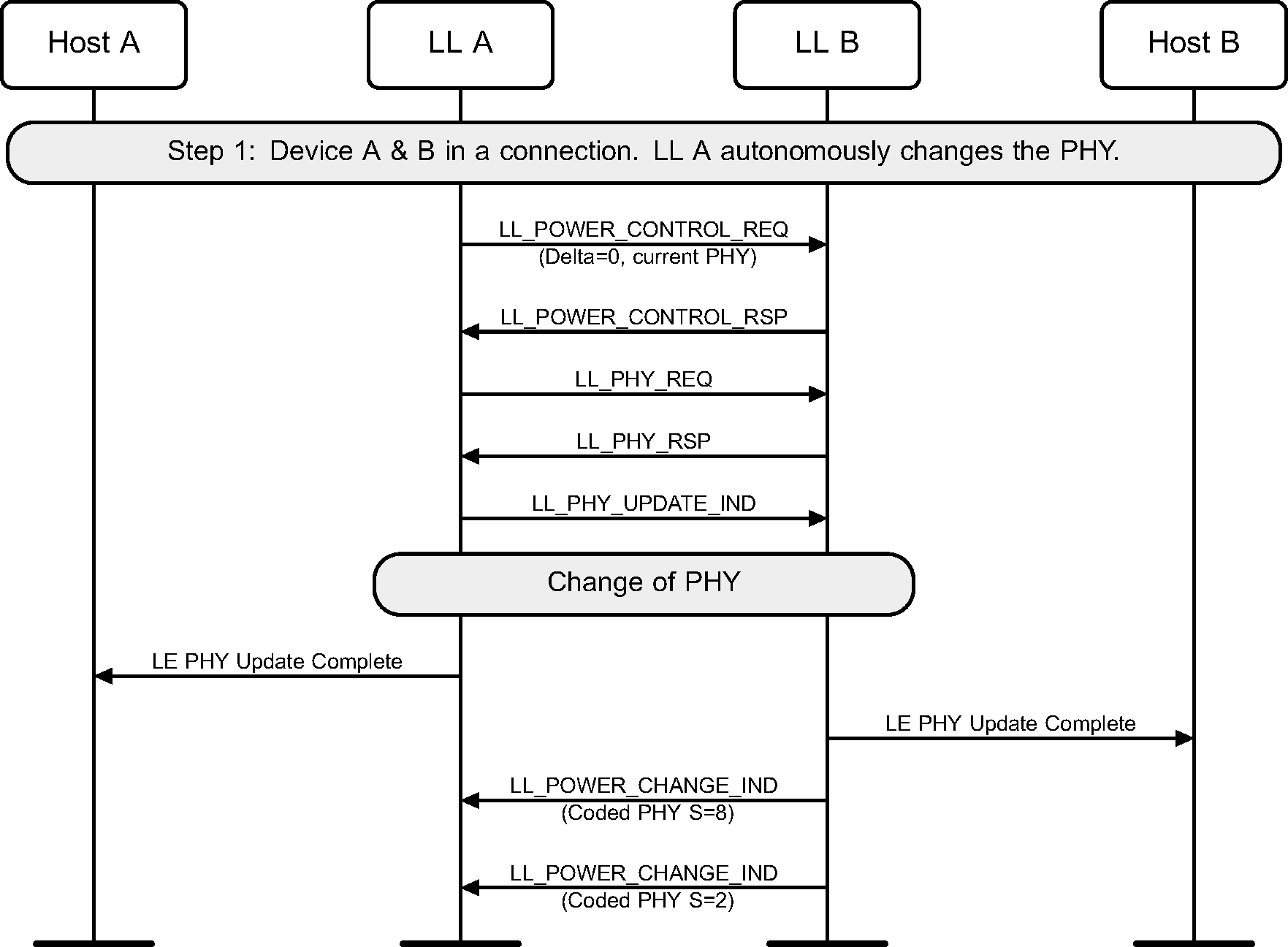

Figure 6.65: Autonomous Central-initiated PHY Update procedure to change to the LE Coded PHY (S=8 and S=2). PHY changed in both directions.


When an associated CIS is established on a PHY different from the one used by ACL, the Power Change Indication procedure may be used to indicate the transmit power level used on the new PHY. When the associated CIS is disconnected, the implementations may choose to stop managing the PHY used on the CIS (see Figure 6.66).

ACL with associated CIS established on a new PHY different from one on ACL

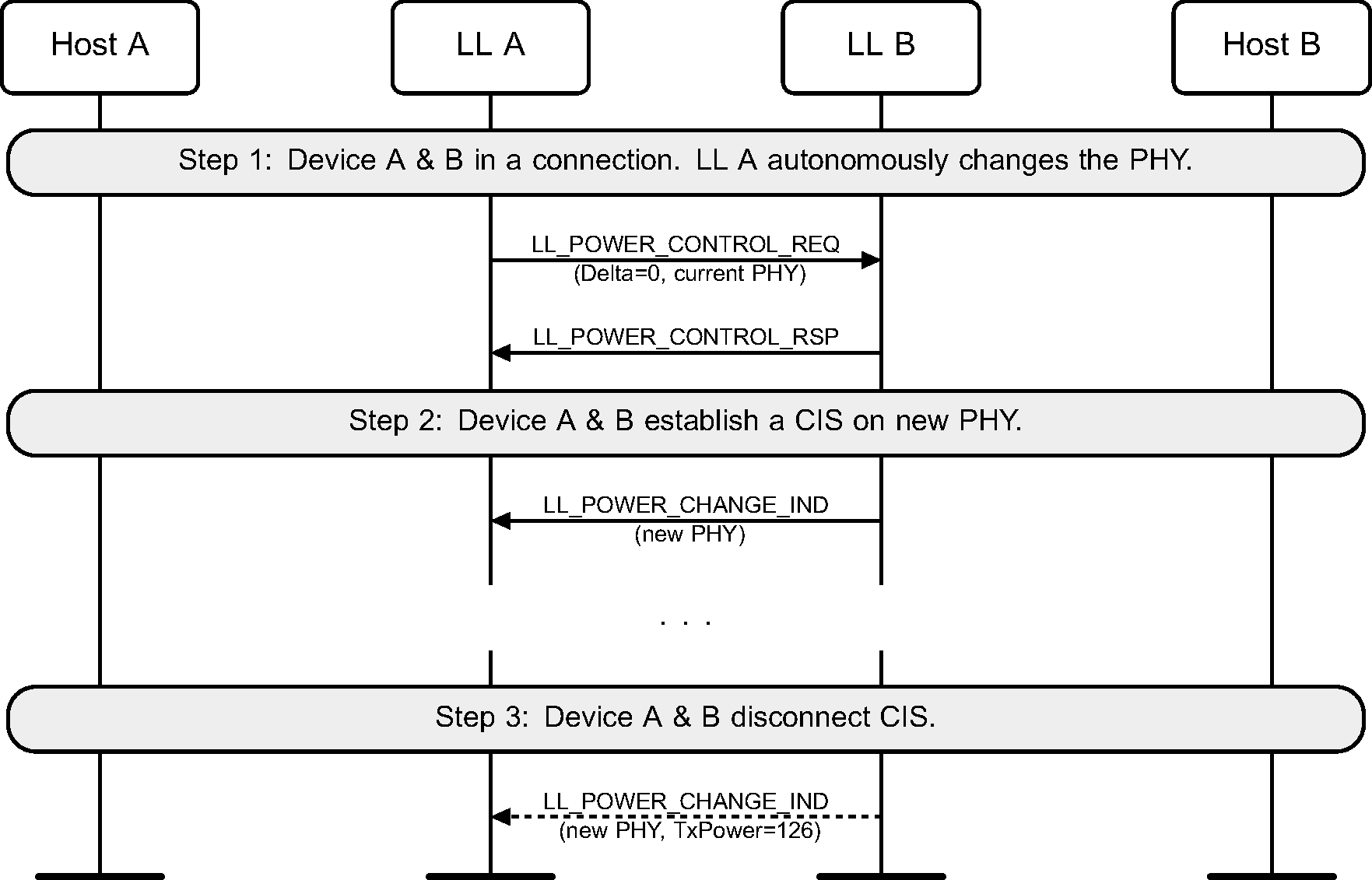

Figure 6.66: ACL with associated CIS established on a new PHY different from one on ACL


When a Host enables path loss monitoring, the Controller may initiate the Power Control Request procedure to query the remote transmit power level. As the remote device moves around, the Controller monitors the path loss on the connection and sends events to the Host as appropriate (see Figure 6.67).

Power Control Request procedure in context of path loss monitoring
Figure 6.67: Power Control Request procedure in context of path loss monitoring


6.28. Data path setup for a music stream over a CIS

Figure 6.68 shows an example of unidirectional music streaming from Host A to Host B. Host A does LC3 codec processing in the Host and sends data over HCI to the Controller, which transmits the PDUs over the air without further processing. Host B configures an output data path to the speaker(s) and enables LC3 codec processing in the Controller.

Note

Note: The notifications between the Hosts are specified by the relevant profile(s).

Note

Note: The audio data may be mono or stereo. In the latter case, how the data sent to the output data path is split into the separate audio signals is outside the scope of this specification.

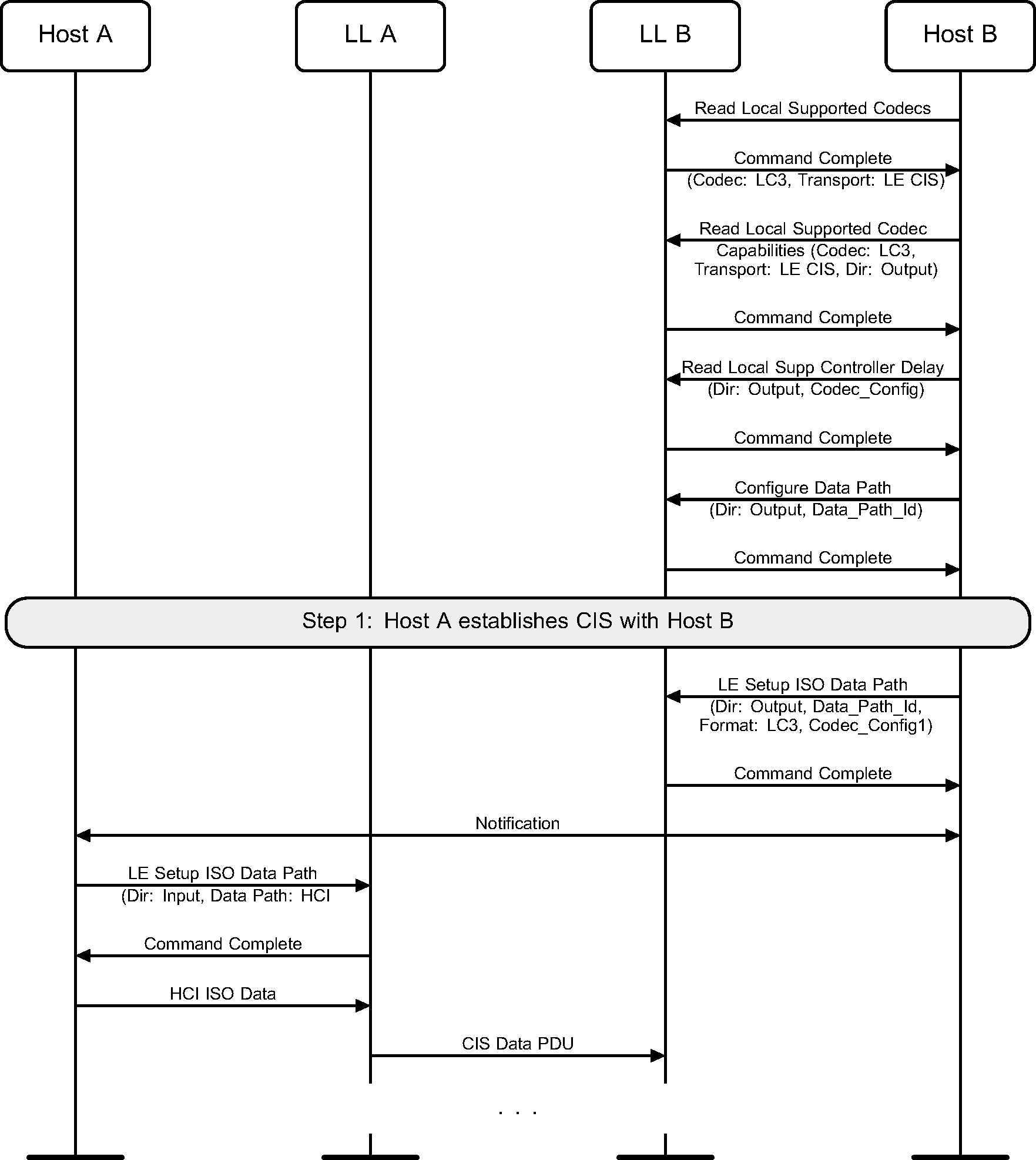

Host A with codec in the Host streams music to Host B which has a codec in the Controller
Figure 6.68: Host A with codec in the Host streams music to Host B which has a codec in the Controller


6.29. Data path setup for bi-directional voice over a CIS

Figure 6.69 shows an example of a bidirectional voice call between Host A and Host B. Device A contains proprietary audio interface hardware with an embedded LC3 codec. Hence the Host sets up the ISO data path with Coding_Format set to transparent mode. Device B supports LC3 codec processing in the Controller and hence Host B sets up the ISO data path with Coding_Format set to LC3 along with the codec configuration data defined by the relevant profile(s).

Note

Note: The notifications between the Hosts are specified by the relevant profile(s).

Host A with codec in the data path establishes a bi-directional voice call with Host B with codec in the Controller
Figure 6.69: Host A with codec in the data path establishes a bi-directional voice call with Host B with codec in the Controller


6.30. [This section is no longer used]

The contents of this section are now in Section 8.5.

6.31. Modifying the subrate of a connection

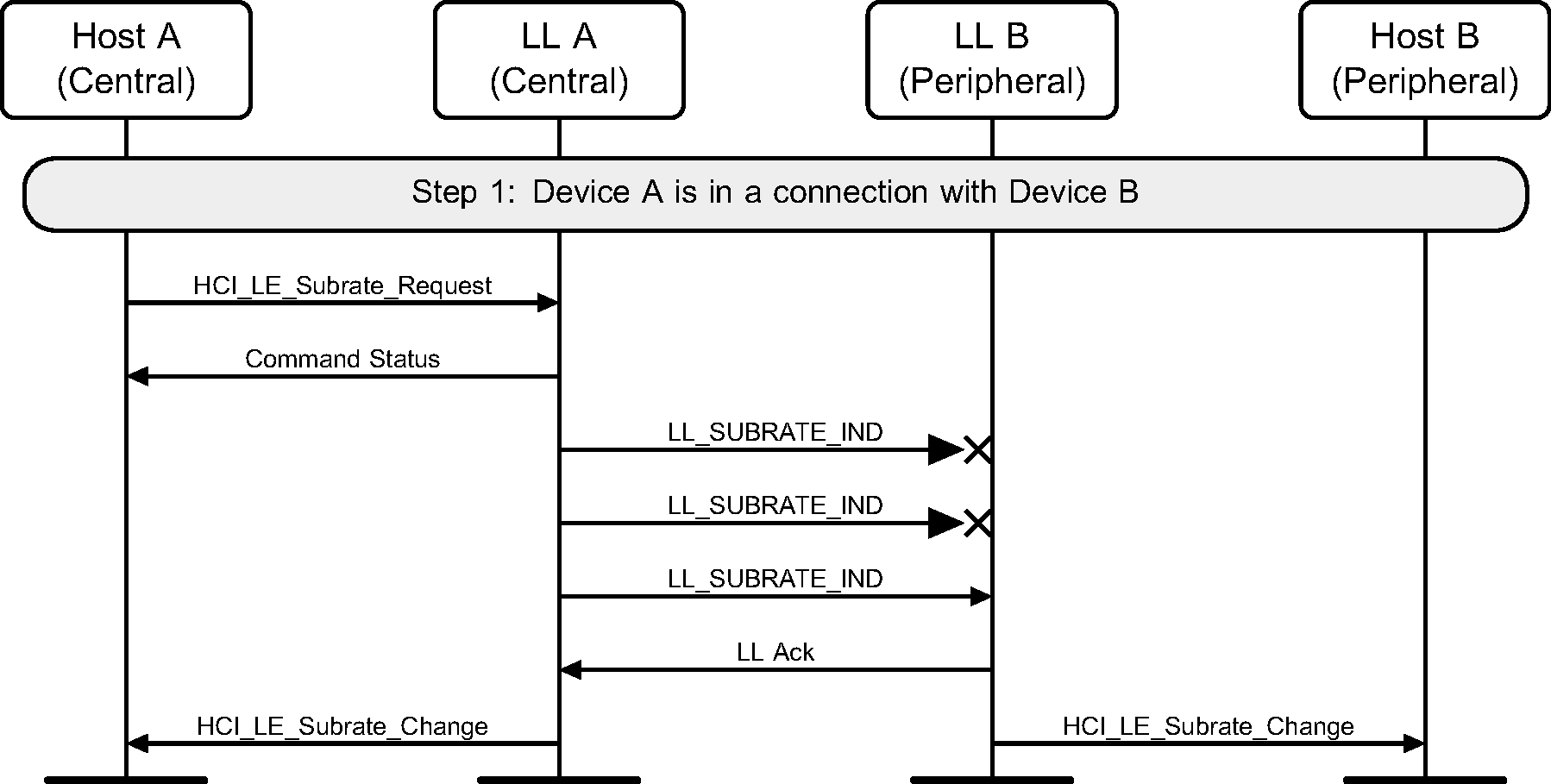

A Central A in a connection with a Peripheral B modifies the subrating of the connection. The first two PDUs are not received by device B (see Figure 6.70).

Central A modifies the connection subrating
Figure 6.70: Central A modifies the connection subrating


Peripheral B requests a new subrating for its connection with device A and makes the change (see Figure 6.71).

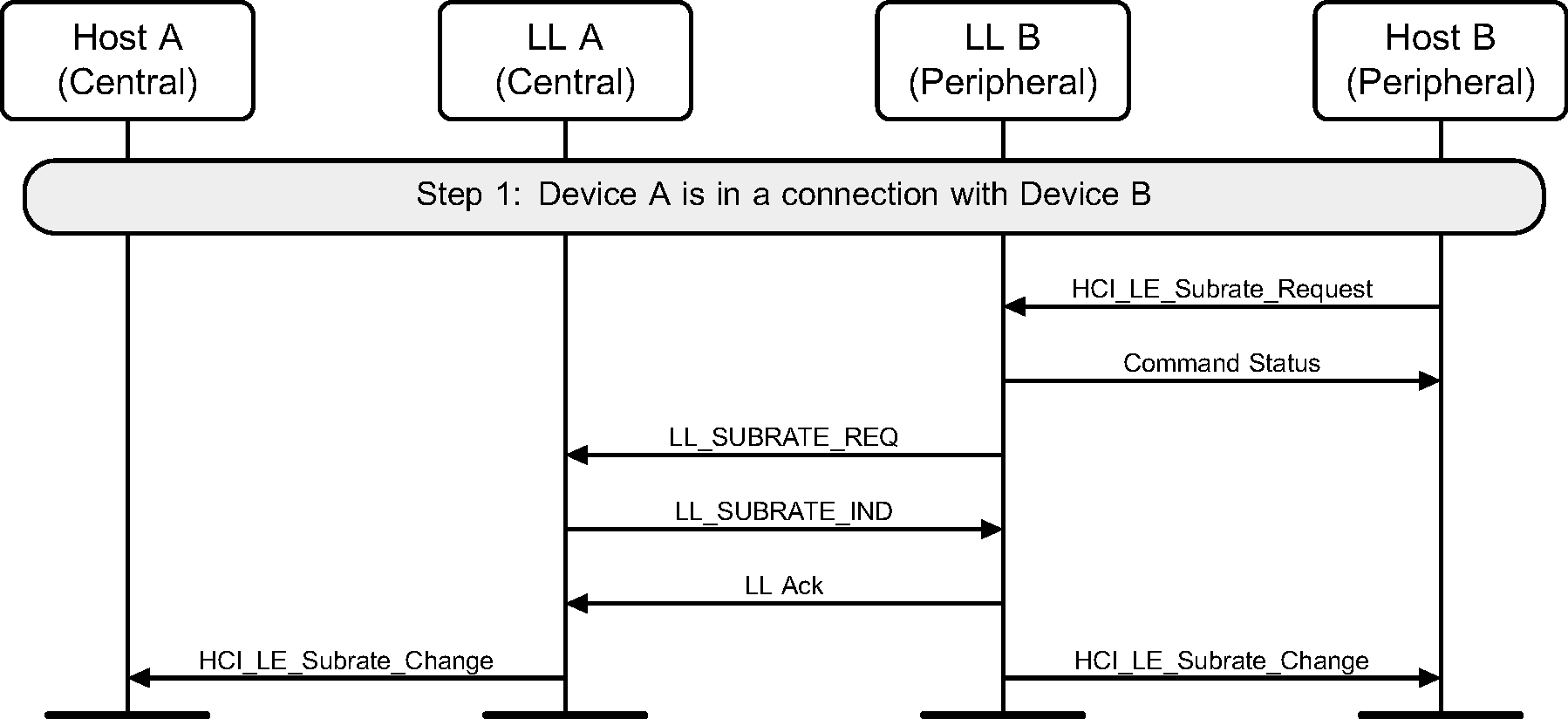

Peripheral B requests a change to the connection subrate which is accepted
Figure 6.71: Peripheral B requests a change to the connection subrate which is accepted

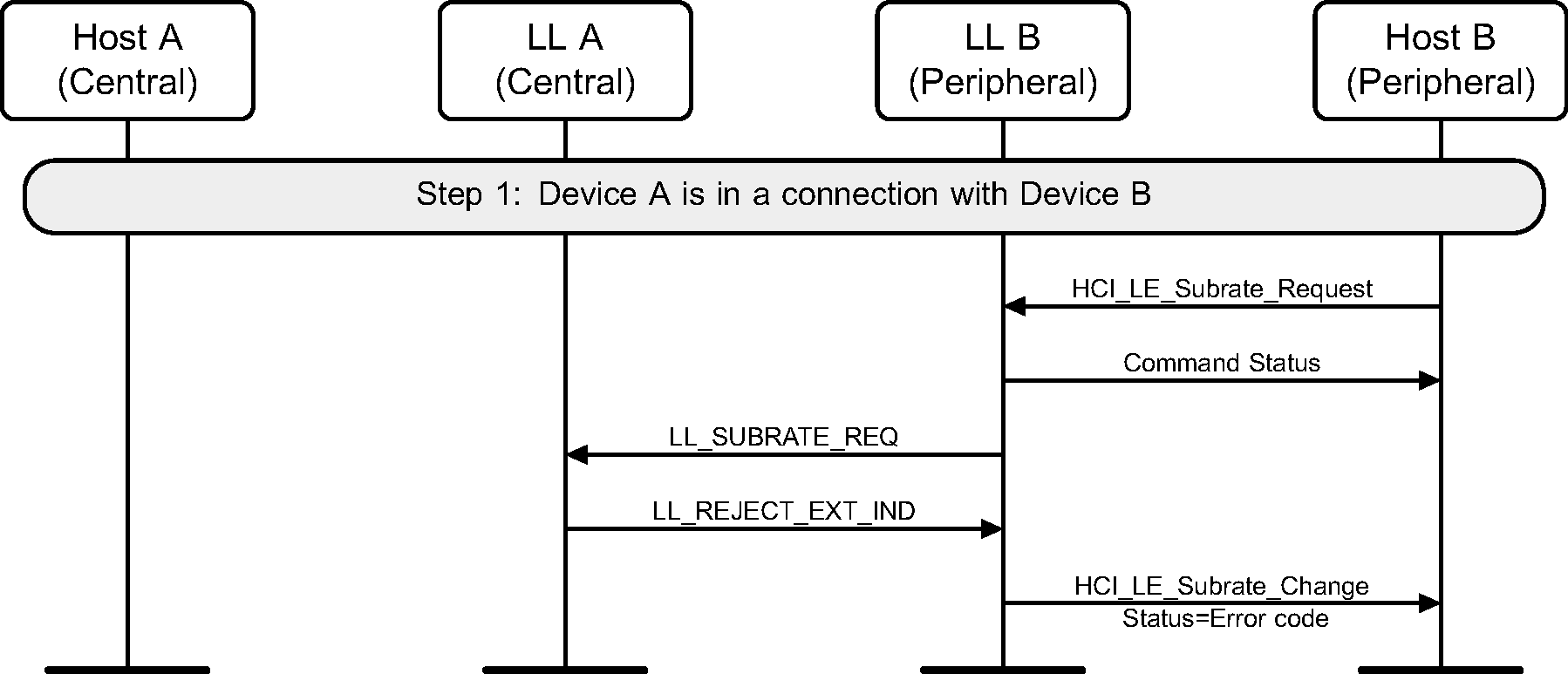

Peripheral B requests a new Subrating for its connection with device A but device A rejects the change (see Figure 6.72).

Peripheral B requests a change to the connection subrate which is rejected
Figure 6.72: Peripheral B requests a change to the connection subrate which is rejected


6.32. Channel Classification Enable

The Central can enable reporting of channel classification information on the Peripheral.

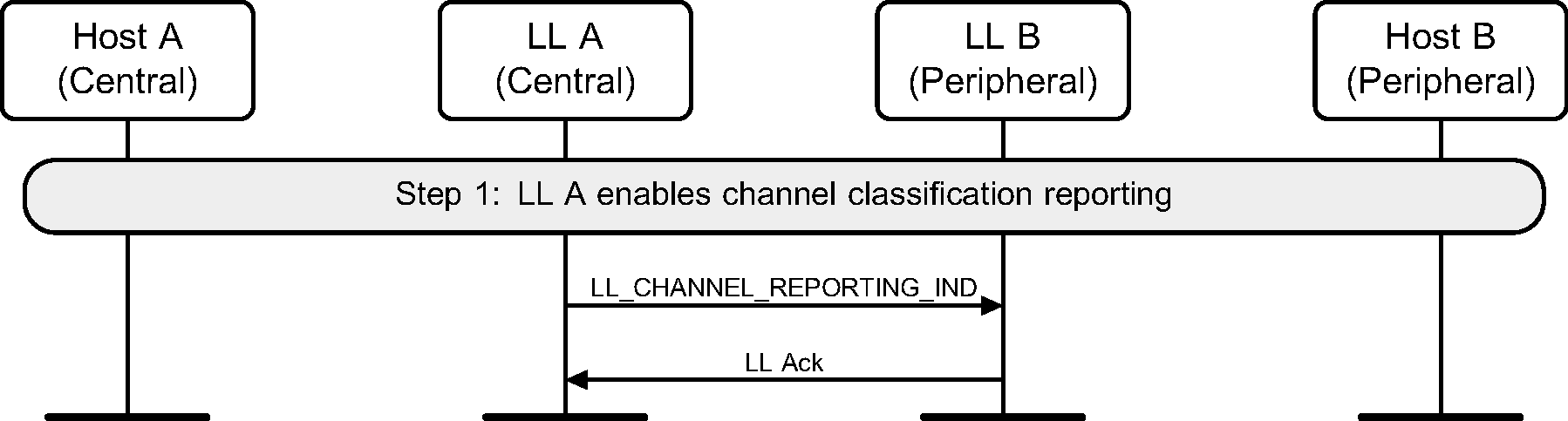

Central requests the Peripheral to enable reporting of channel classification information
Figure 6.73: Central requests the Peripheral to enable reporting of channel classification information


6.33. Channel Classification Reporting

The reporting is enabled, the Peripheral can provide channel classification information to the Central.

Peripheral provides channel classification information to the Central
Figure 6.74: Peripheral provides channel classification information to the Central


6.34. Channel Sounding setup phase

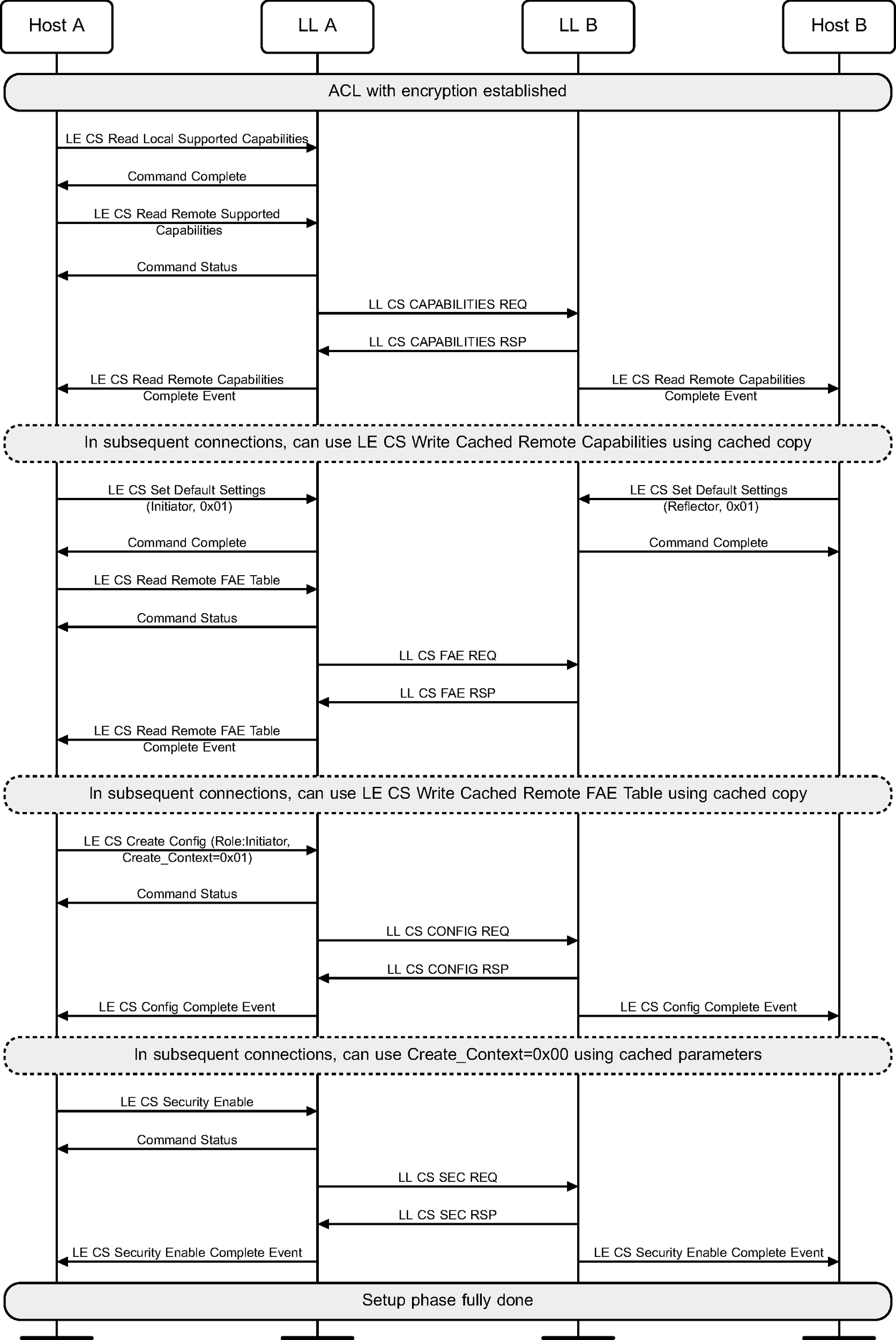

The example flow in Figure 6.75 shows the CS setup phase, in which CS capabilities are read and roles are enabled at both ends of a connection. An encrypted ACL connection is established before exchanging CS capabilities and security parameters.

A distance measurement application in a Host can issue HCI commands to start the setup phase with the Channel Sounding Capability Exchange procedure. The local and remote Host can then set the default settings for Channel Sounding. Based on the capability support for a non-zero Frequency Actuation Error, the application can issue appropriate commands to read or write the mode-0 Frequency Actuation Error table. The application can create CS configurations using the Channel Sounding Configuration procedure. The Controller in the Central role can then start the Channel Sounding Security Start procedure. After the Channel Sounding Security Start procedure completes, the application can consider the setup phase to be completed.

After the first time the setup phase is completed with a specific remote device, an application may cache the remote capabilities, remote FAE table, and CS configuration parameters used. During subsequent connections, the Host may avoid LL control procedure exchanges as described in Figure 6.75.

Channel Sounding example setup phase
Figure 6.75: Channel Sounding example setup phase


6.35. Channel Sounding started by Central in initiator role

As mentioned in [Vol 1] Part A, Section 3.3.2.5.3, an LE device may assume either the initiator or reflector role. In the example shown in Figure 6.76, an application running on a Central device in the initiator role starts a CS measurement.

Channel Sounding started by Central in initiator role
Figure 6.76: Channel Sounding started by Central in initiator role


6.36. Channel Sounding started by Peripheral in reflector role

As mentioned in [Vol 1] Part A, Section 3.3.2.5.3, an LE device may assume either the initiator or reflector role. In the example shown in Figure 6.77, an application running on a Peripheral device in the reflector role starts a CS measurement.

Channel Sounding started by Peripheral in reflector role
Figure 6.77: Channel Sounding started by Peripheral in reflector role


6.37. Channel Sounding started by Central, rejected by Peripheral

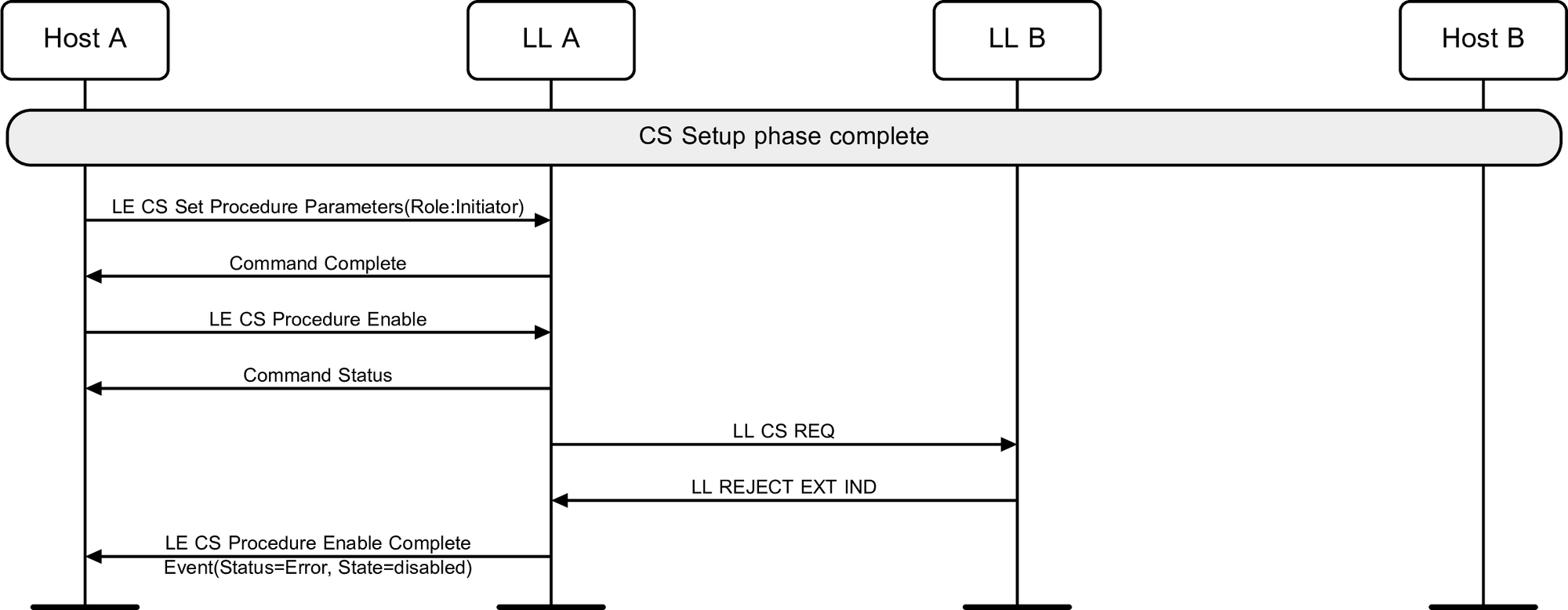

In the example shown in Figure 6.78, an application running on a Central device in the initiator role starts a CS measurement. The Peripheral rejects the LL_CS_REQ because the requested parameters are not acceptable.

Channel Sounding started by Central, rejected by Peripheral
Figure 6.78: Channel Sounding started by Central, rejected by Peripheral


6.38. Channel Sounding configuration removal during an active CS measurement

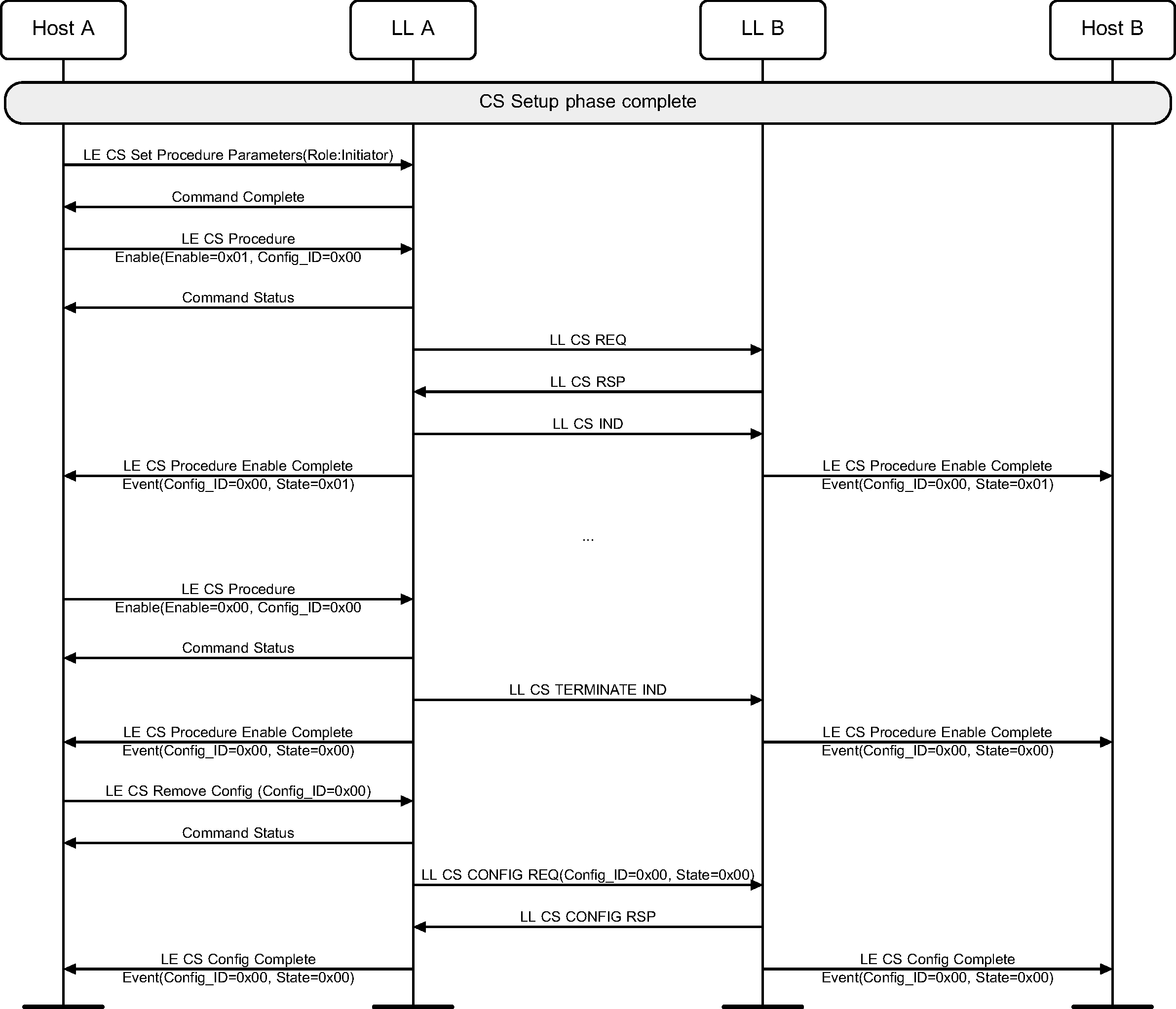

In the example shown in Figure 6.79, an application running on a Central device in the initiator role starts a CS measurement. When the Host wants to remove a CS configuration that is being used in an active CS measurement, the Host first terminates the active CS procedure and then issues a LE CS Remove Config command.

Channel Sounding configuration removal during an active CS measurement
Figure 6.79: Channel Sounding configuration removal during an active CS measurement


6.39. Frame Space Update

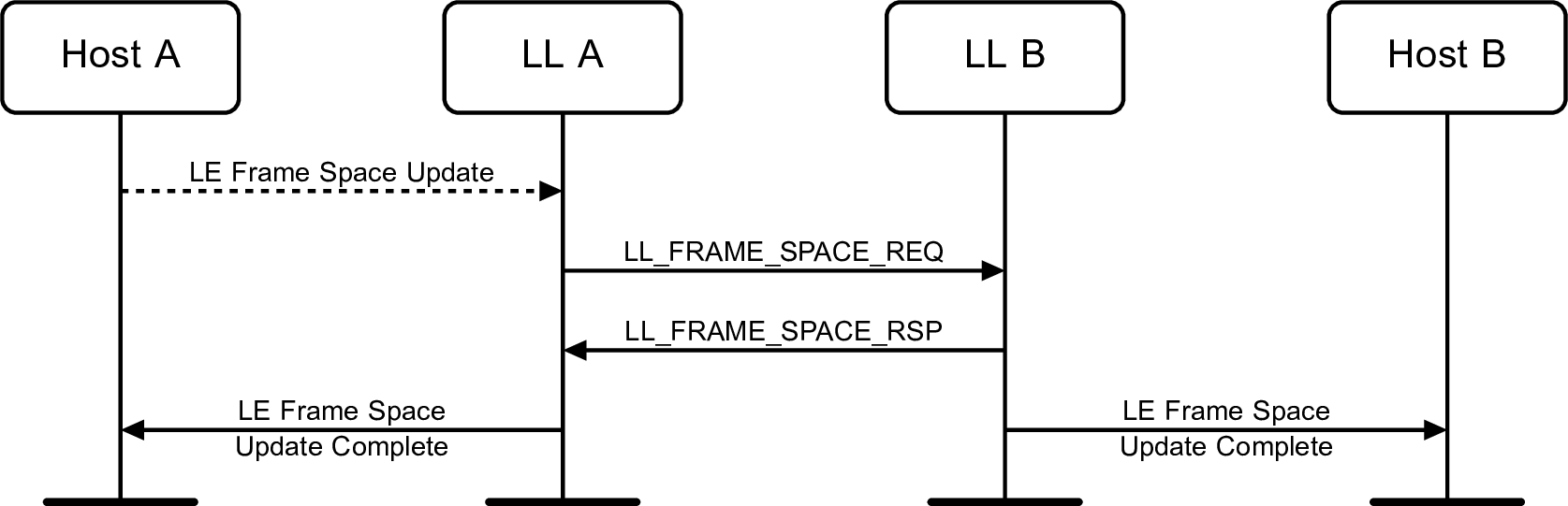

Either the Host or the Controller of device A requests a change to the frame space values of the connection, specifying a change to T_IFS_CIS, T_MSS_CIS, or a PHY that is not the PHY used on the ACL.

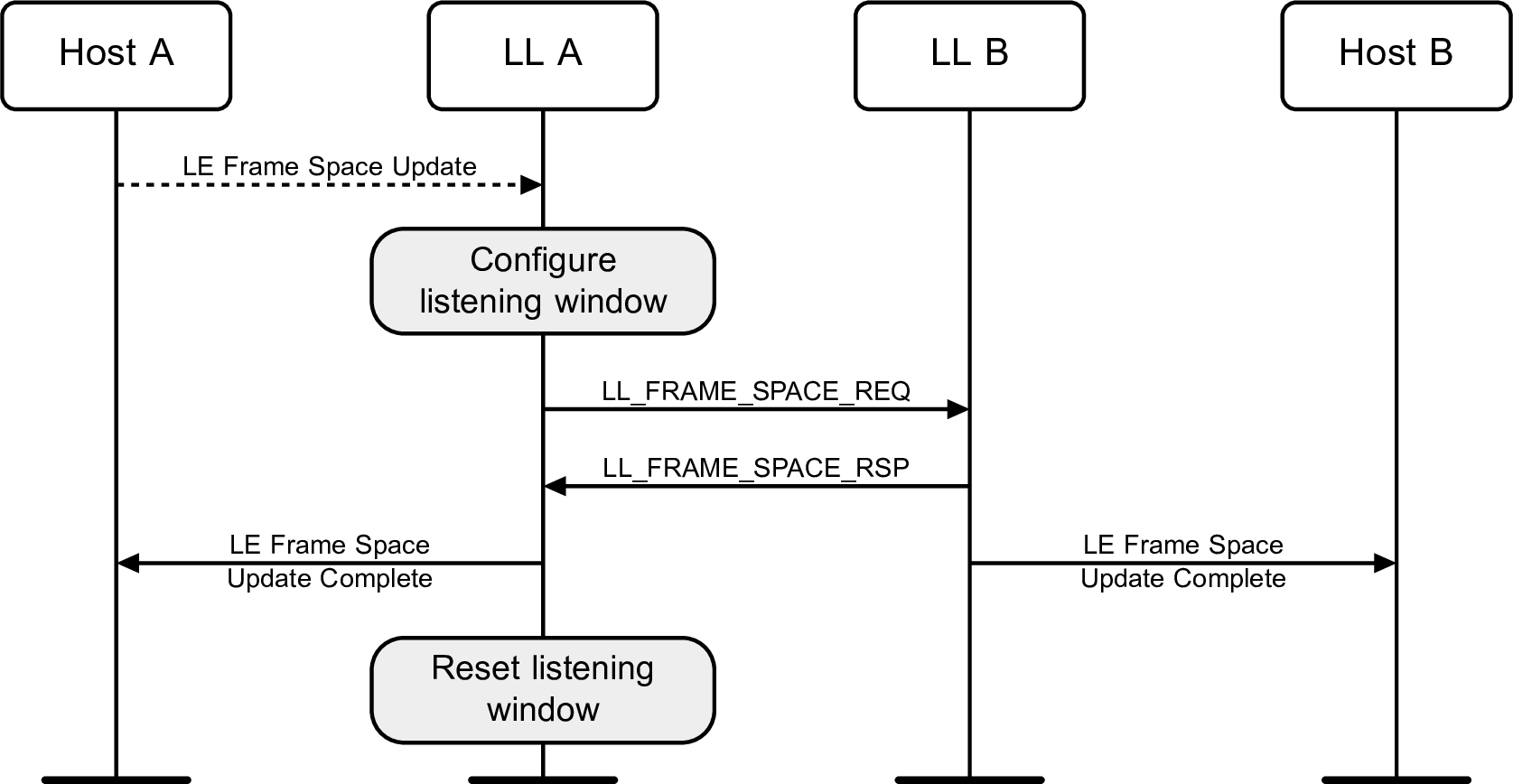

Frame Space Update affecting CIS only
Figure 6.80: Frame Space Update affecting CIS only


Either the Host or the Controller of device A requests a change to the frame space value of the connection, specifying a change to T_IFS_CIS and a change to either T_IFS_­ACL_­CP, T_IFS_­ACL_­PC, or T_MCES. Device B responds with only a change to a PHY that is not the PHY used on the ACL.

Frame Space Update procedure where the responding device does not update the frame space for the PHYs used for the connection
Figure 6.81: Frame Space Update procedure where the responding device does not update the frame space for the PHYs used for the connection

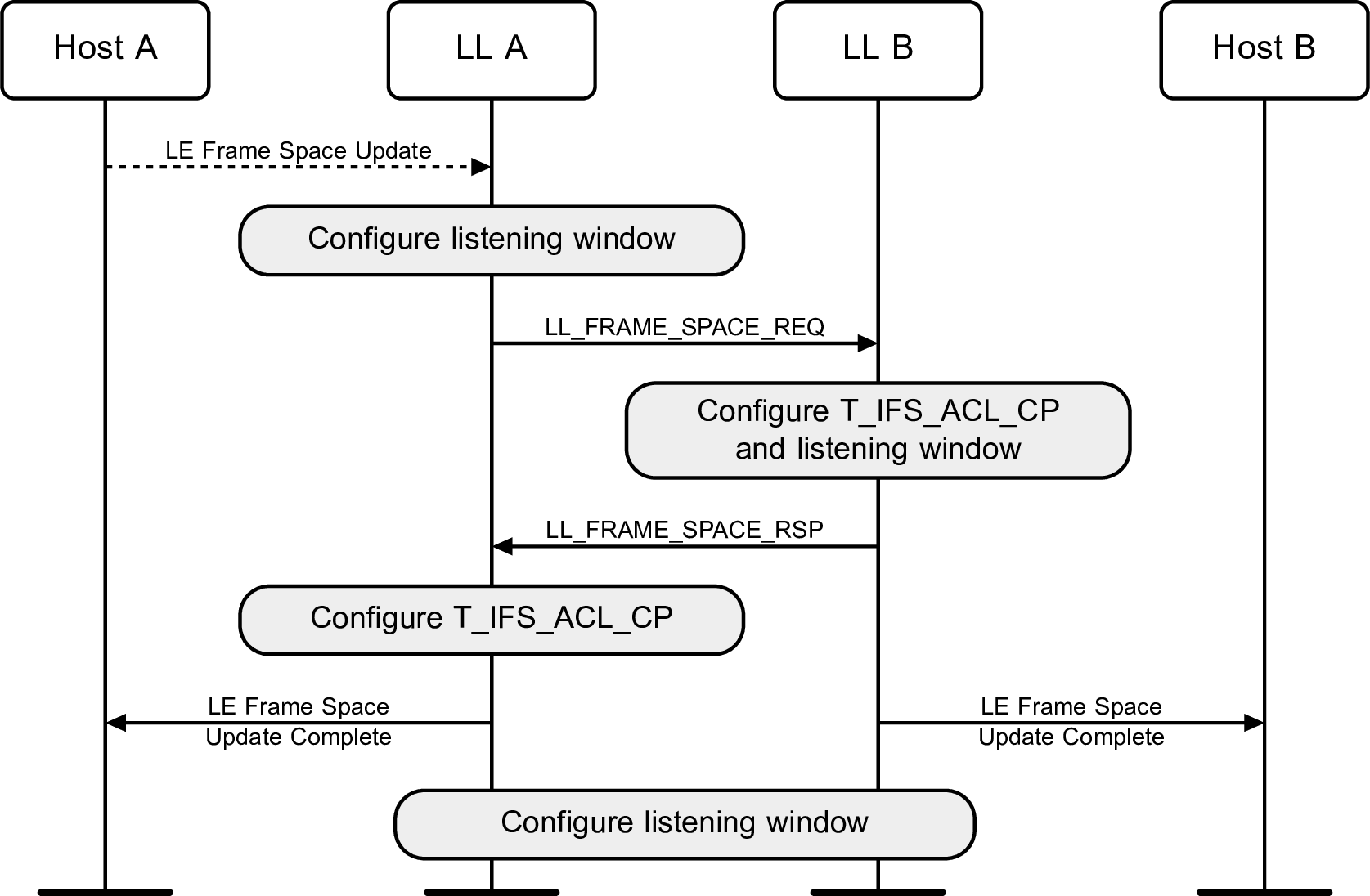

Either the Host or the Controller of device A requests a change to the frame space value of the connection. Device B responds that it can modify T_IFS_­ACL_­CP on the PHY used on the ACL.

Frame Space Update where the frame space for the connection is affected
Figure 6.82: Frame Space Update where the frame space for the connection is affected


7. Periodic advertising sync transfer

In the following examples, device B is carrying out periodic advertising. Either device A or device B is in a connection with device C and transfers periodic advertising synchronization information about the periodic advertising train to device C.

7.1. Transfer by scanner, reports initially disabled

The scanning device (A) transfers periodic advertising synchronization information to device C, which starts listening to the periodic advertising train but only sends reports to the Host when explicitly requested.

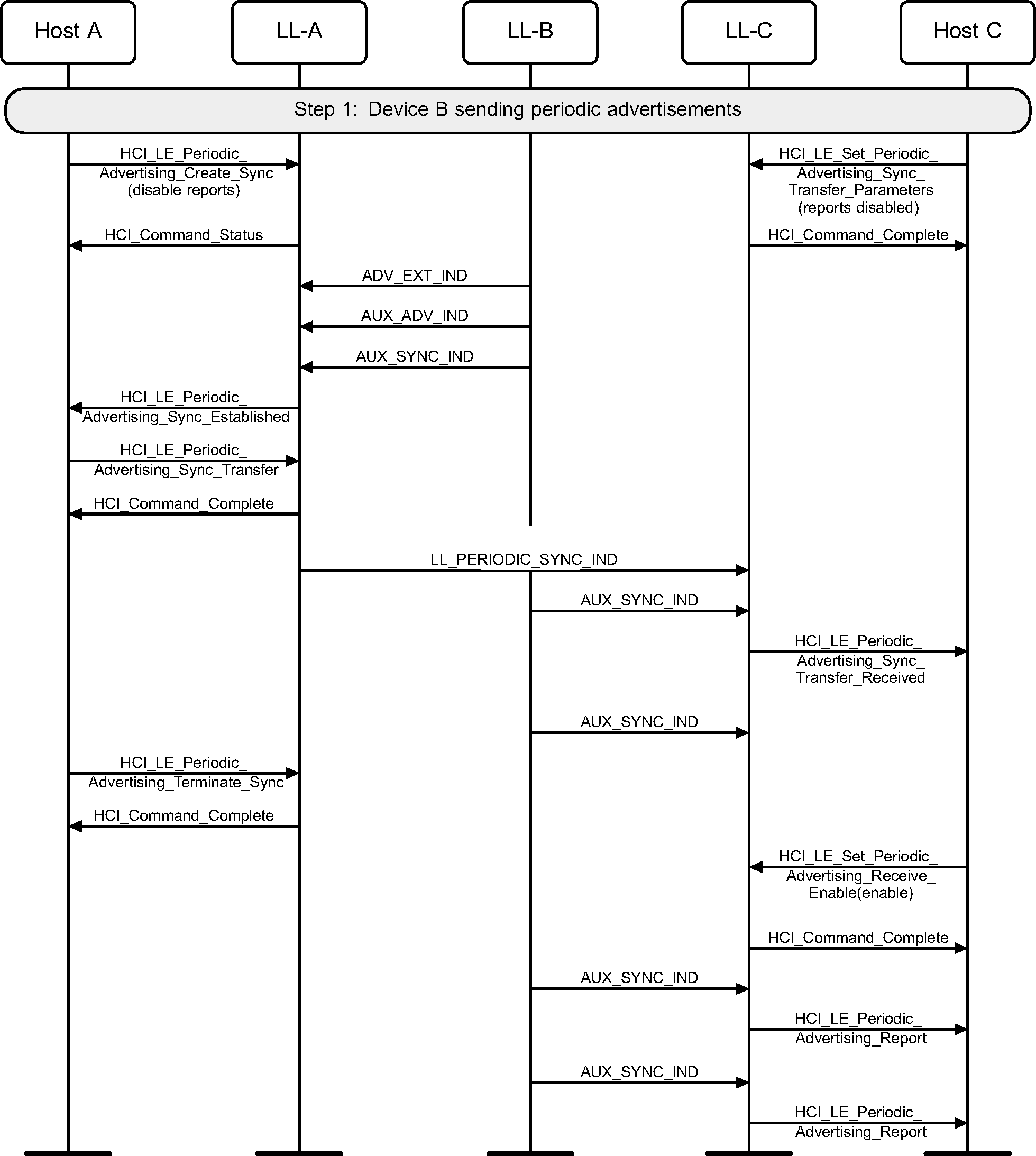

Periodic Advertising Sync Transfer by scanner, reports initially disabled
Figure 7.1: Periodic Advertising Sync Transfer by scanner, reports initially disabled


7.2. Transfer by scanner, reports initially enabled

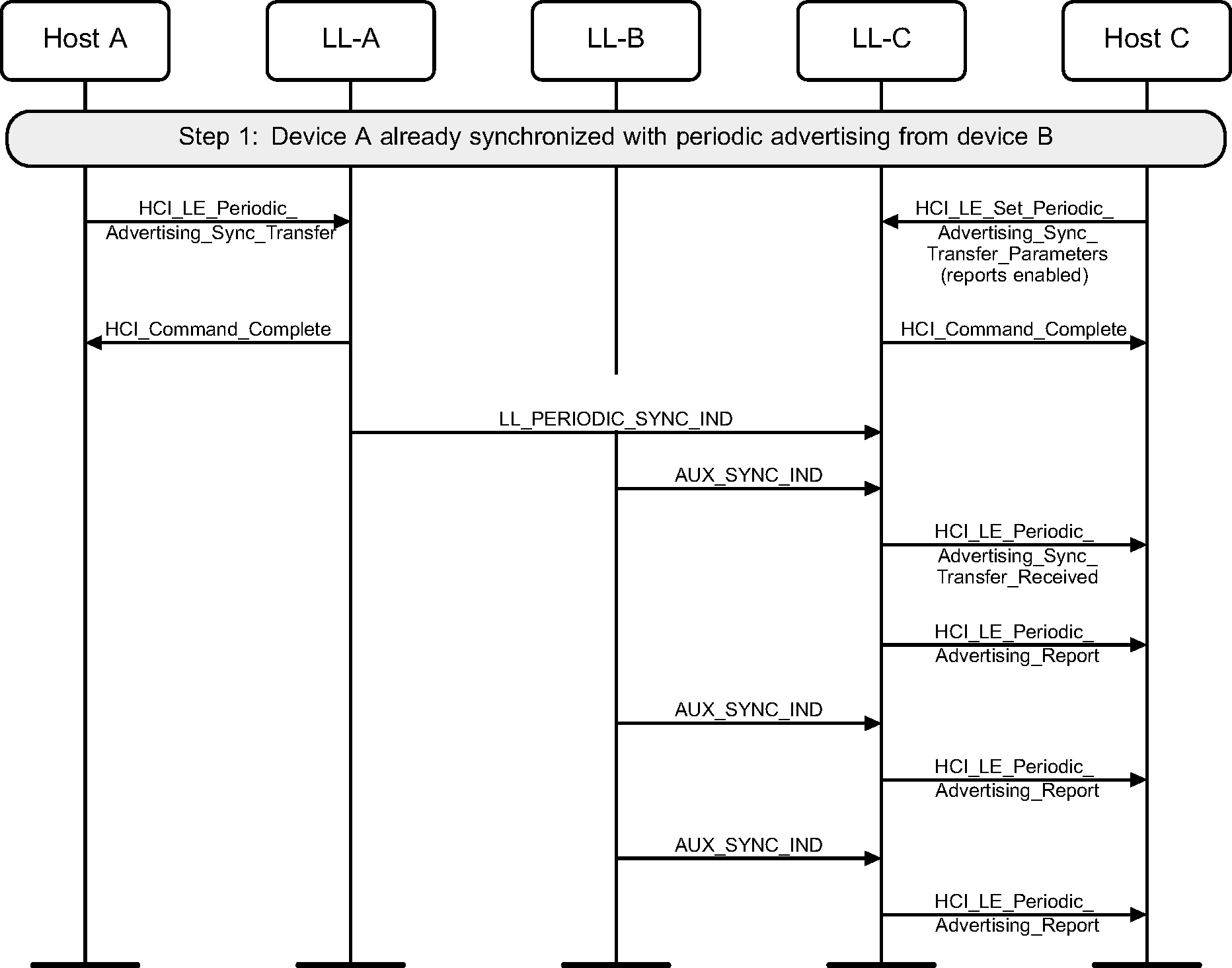

The scanning device (A) transfers periodic advertising synchronization information to device C, which starts listening to the periodic advertising train and immediately sends reports to the Host.

Periodic Advertising Sync Transfer by scanner, reports initially enabled
Figure 7.2: Periodic Advertising Sync Transfer by scanner, reports initially enabled


7.3. Transfer by the advertiser

The advertiser (B) directly transfers periodic advertising synchronization information about its periodic advertising to device C. In this example reports to Host C are disabled.

Periodic Advertising Sync Transfer by advertiser, reports initially disabled
Figure 7.3: Periodic Advertising Sync Transfer by advertiser, reports initially disabled


8. Synchronization state

8.1. Synchronizing with a Broadcast Isochronous Group

A device enters the Synchronization state, receives the synchronization information from the periodic advertising train that is associated with the BIG, and synchronizes to a BIS (see Figure 8.1).

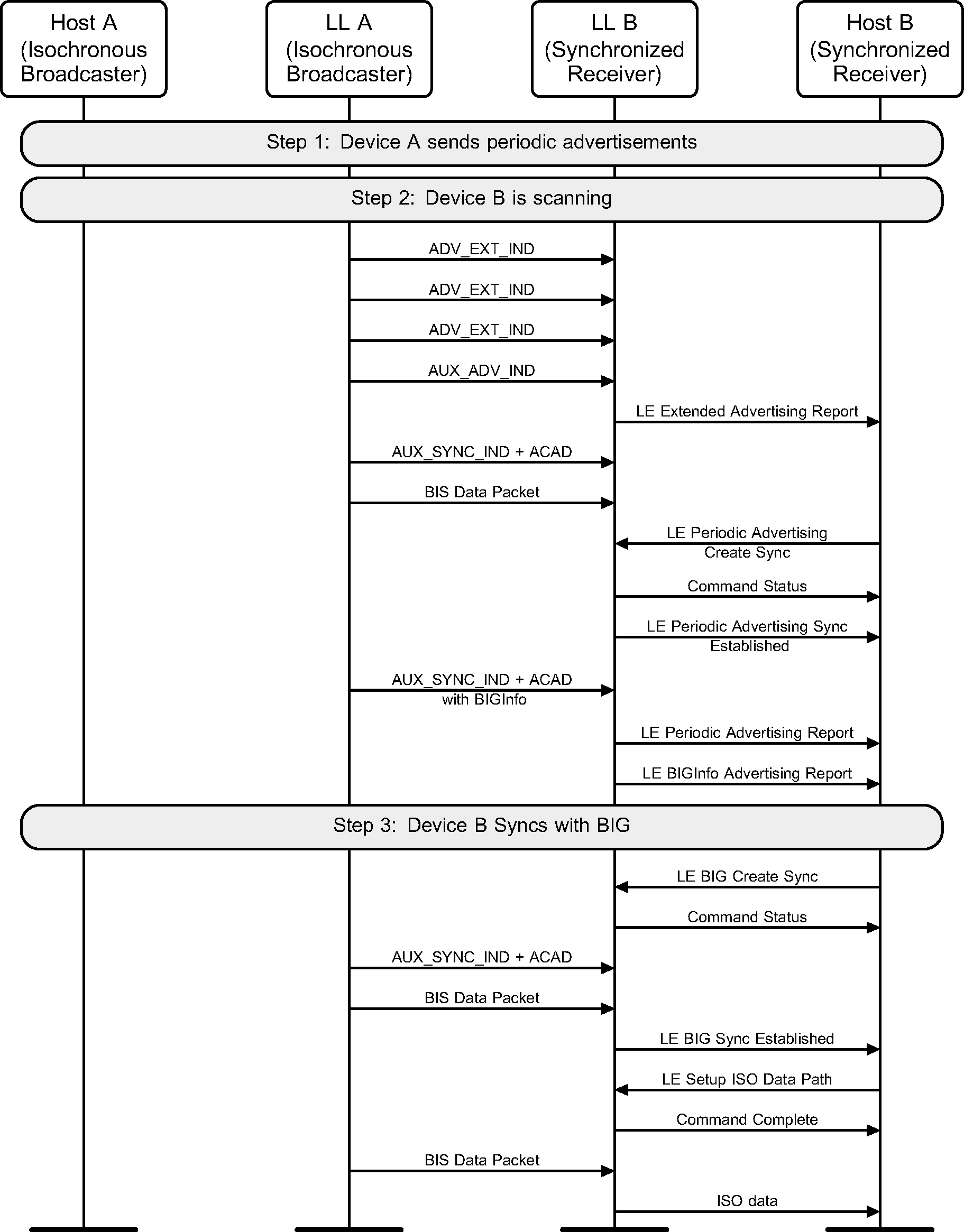

Device B synchronizes with a BIG
Figure 8.1: Device B synchronizes with a BIG


8.2. Terminate Synchronization with a BIG

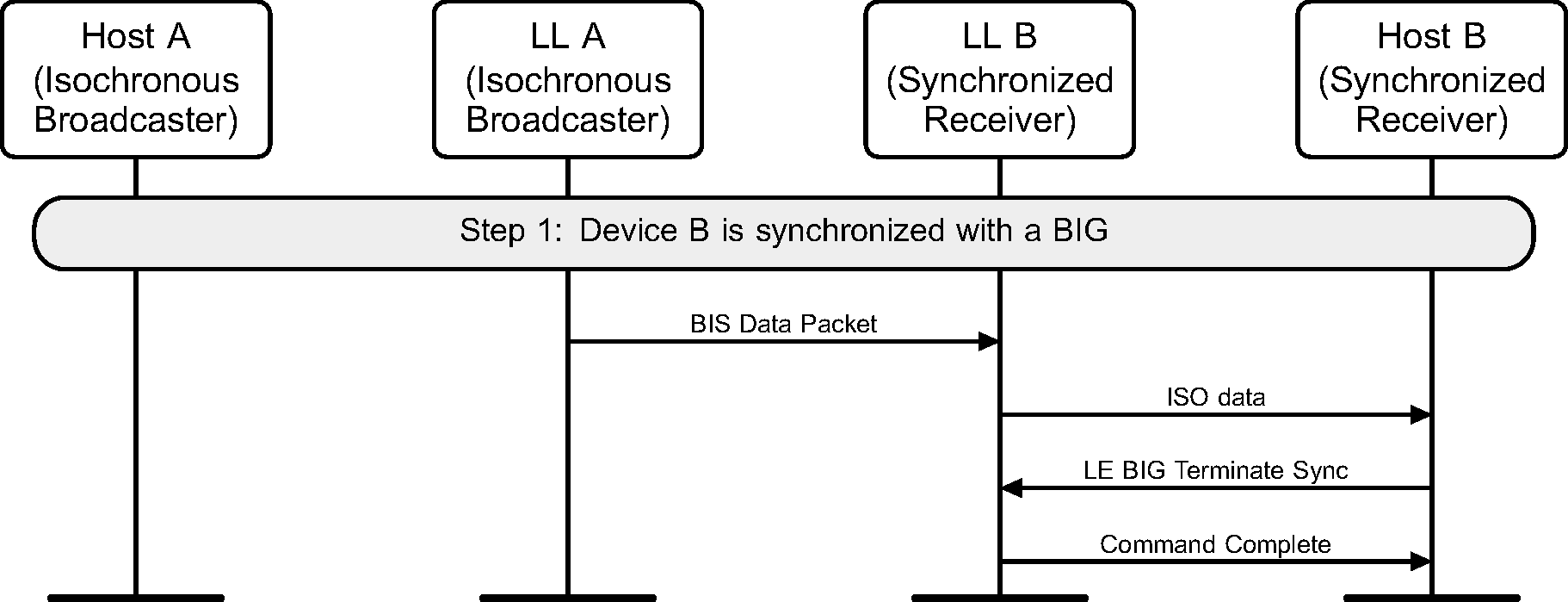

A device terminates synchronization with a BIG (see Figure 8.2).

Synchronization with a BIG is terminated
Figure 8.2: Synchronization with a BIG is terminated


8.3. New Channel Map for Broadcast Isochronous Group

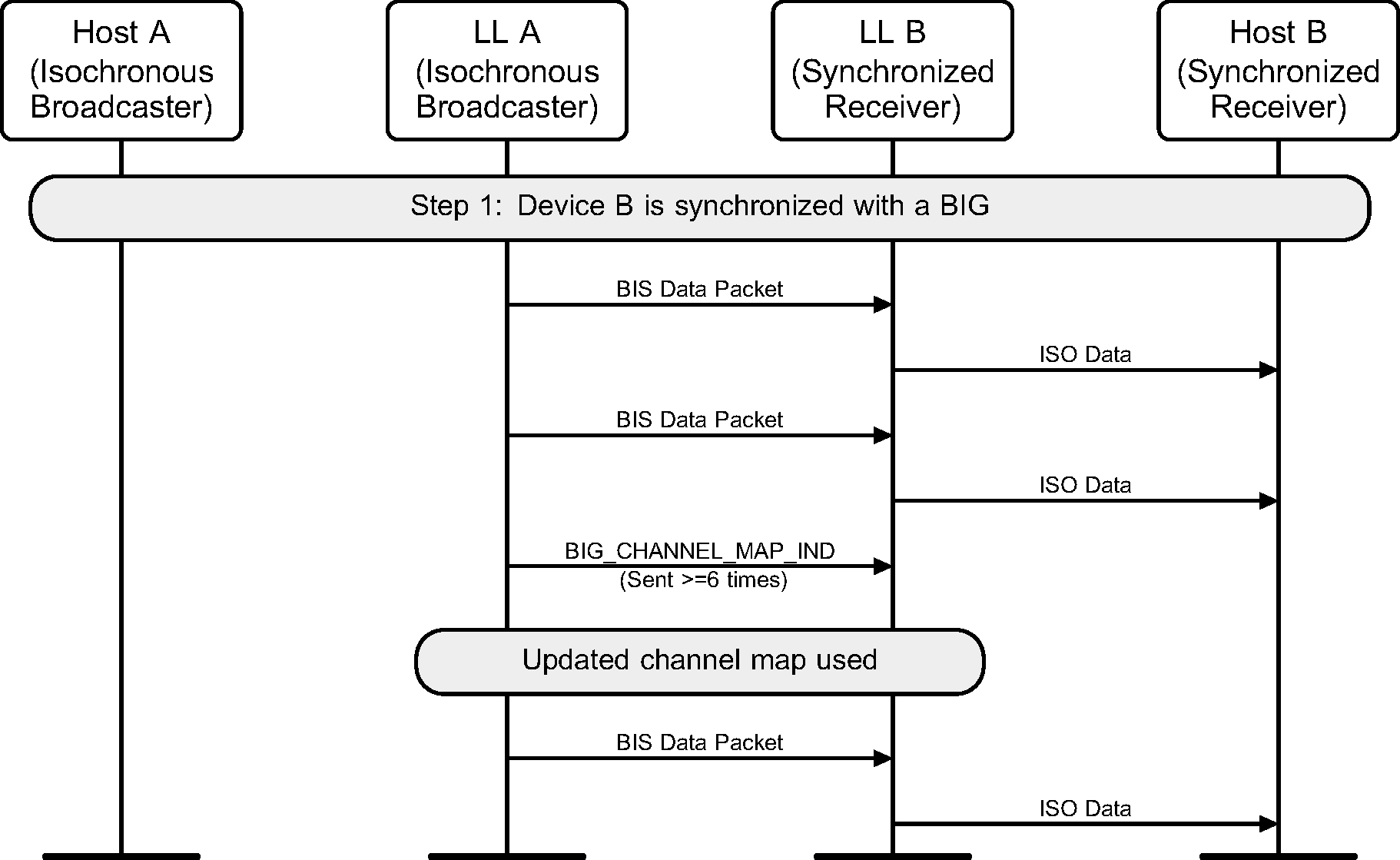

A device receives a channel map update for a BIG (see Figure 8.3).

Device A sends a channel map update for a BIG
Figure 8.3: Device A sends a channel map update for a BIG


8.4. Lost Synchronization with a Broadcast Isochronous Group

A device loses synchronization with a BIG (see Figure 8.4).

Device B loses synchronization with a BIG
Figure 8.4: Device B loses synchronization with a BIG


8.5. Data path setup for a BIS

Figure 8.5 shows an example of an isochronous broadcast stream from the Broadcaster A. Host A sets up the ISO data path with codec processing in the Controller to create the PDUs transmitted over the BIS. Device B becomes a Synchronized Receiver for the BIS and sets up the ISO data path to do codec processing in the Controller on the received data PDUs.

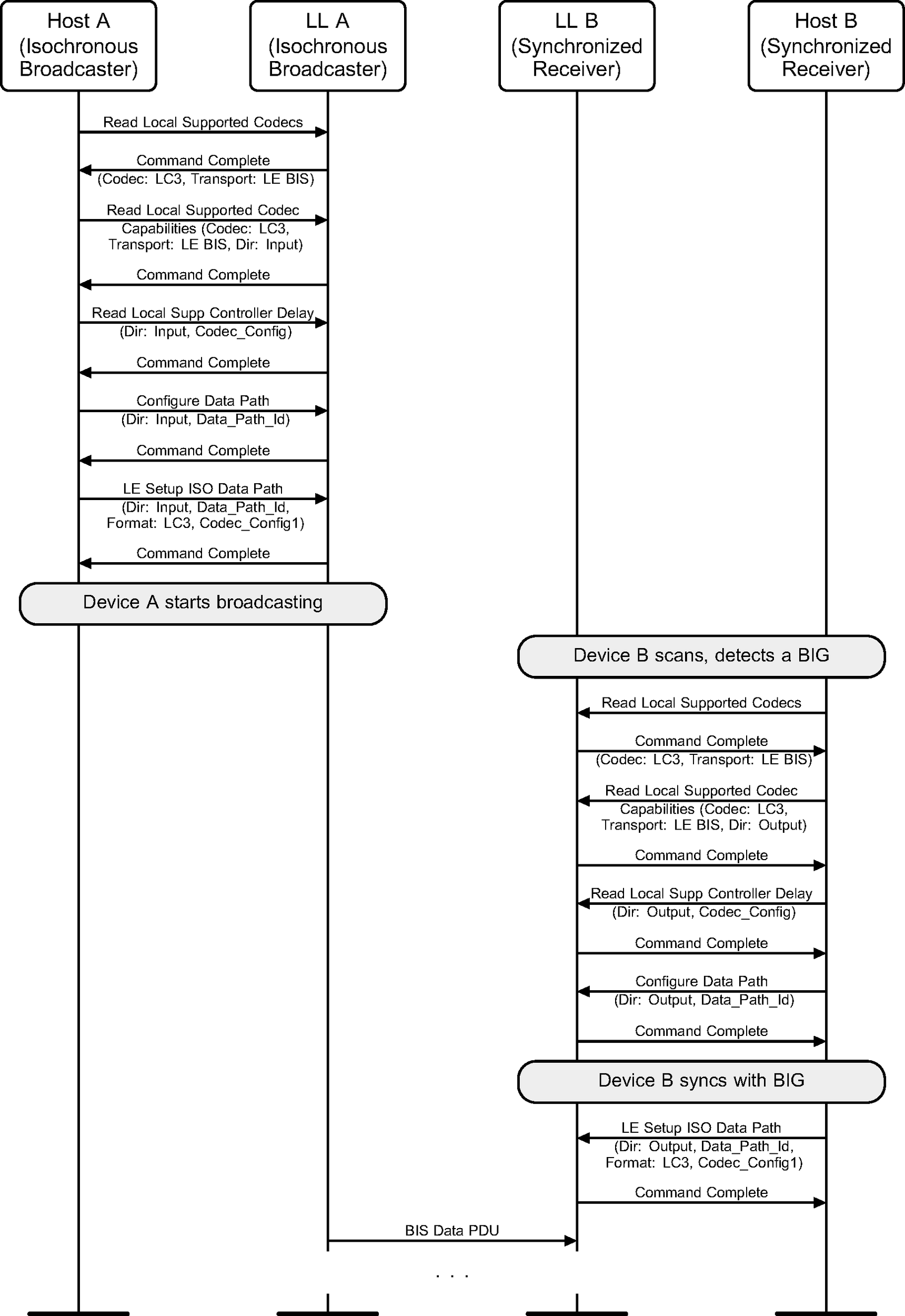

Isochronous broadcasting between devices which both have a codec in the Controller
Figure 8.5: Isochronous broadcasting between devices which both have a codec in the Controller
